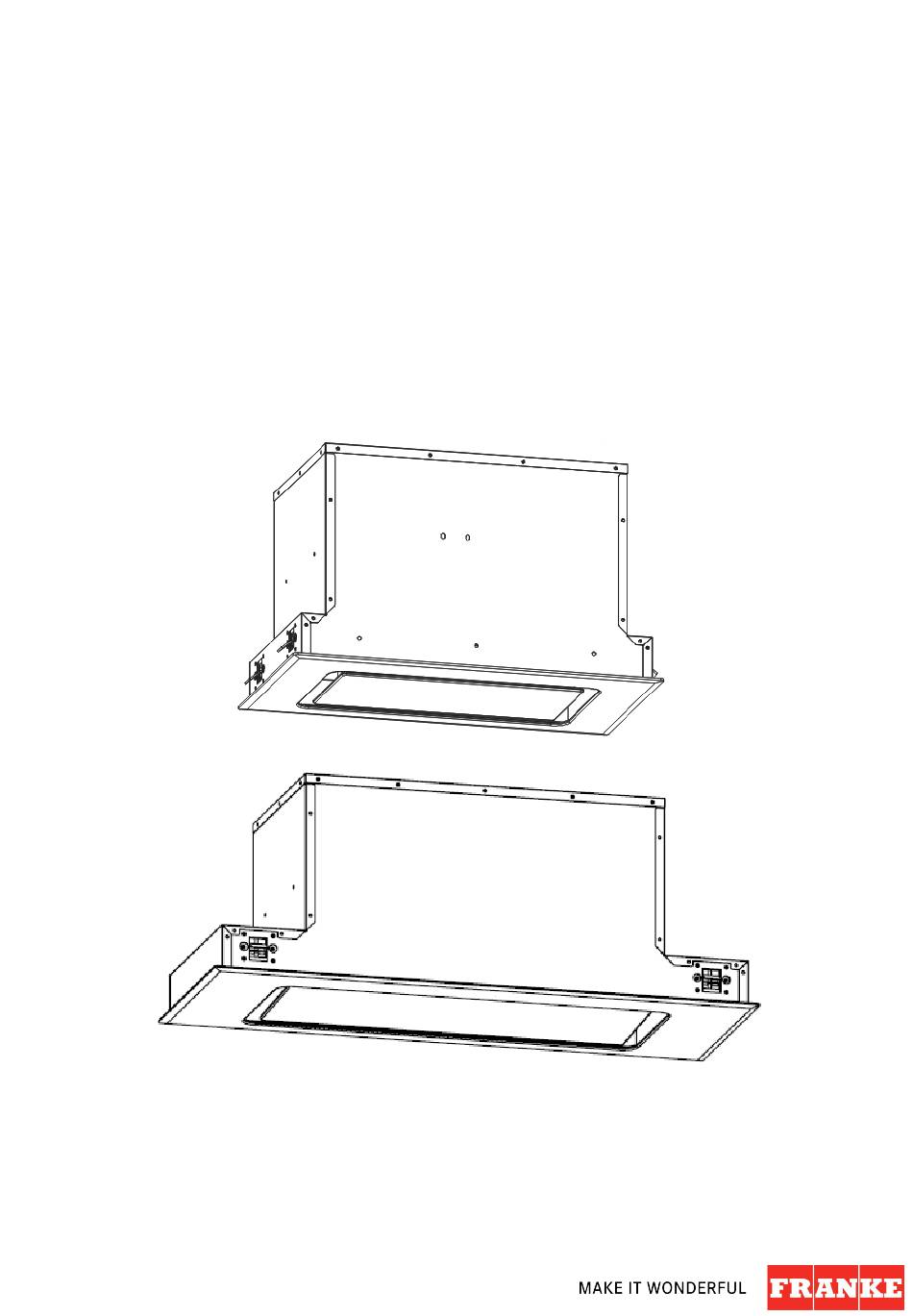

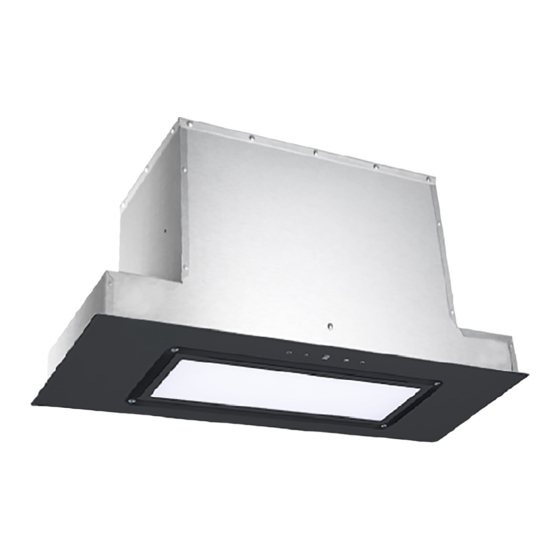

- Page 1 Rangehood Instruction Manual FCUH52BAU FCUH90BAU 52cm 90cm...
- Page 2 Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your rangehood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your rangehood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. Always to do: Never to do: ●... - Page 4 Always to do: ● aution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. ● f the supply cord is damaged, it must Children should stay away unless they be replaced by the manufacturer, its are under permanent supervision.
- Page 5 INSTALLATION (VENT OUTSIDE) 1. The rangehood should be placed at a distance of 65-75cm from the cooking surface for the best effect. 2. Drill a hole in the cabinet, with hole wide 500*275(mm) for model 52CM and hole wide 880*275(mm) for model 90CM. Refer to Pic 1. Make sure the hole edge to the cupboard edge at least 35mm distance.
- Page 6 4. Install the outlet and expansion pipe: install the outlet on the rangehood,then cover the expansion pipe on the outlet and lead it to outdoor. Note: The expansion pipe is not included in the product. See pic 3 & 4. WARNING: ➢...
-
Page 7: Start Using Your Rangehood
Start Using Your Rangehood Touch control with LED display 1. Press the “Power” button, the button control the “on” & “off ” of the hood. 2. Press the button “Speed” time after time, the motor runs as low / mid / high / low / mid…, the speed runs circularly;... -
Page 8: Maintenance And Cleaning
MAINTENANCE AND CLEANING Caution: • Before maintenance or cleaning is carried out, the rangehood should be disconnected from the main power supply. Ensure that the rangehood is switched off at the wall socket and the plug removed. • External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage. -
Page 9: Bulb Replacement
52cm 90cm INSTALLING GREASE MESH FILTERS • To install filters for the following four steps . - Angle the filter into slots at the back of the hood. - Push the button on handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters. -
Page 10: Environmental Protection
ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU.
