Technote 4: Setting up TO-559 Stereo Transmodulators
The equipment converts DVB-T digital TV programs into terrestrial band, analogue TV
channels. Stereo Trans-modulators comprise SAW filtering for maximum harmonic reduction
and true VSB response for adjacent channel operation.
Launch Amplifier
Power Supply

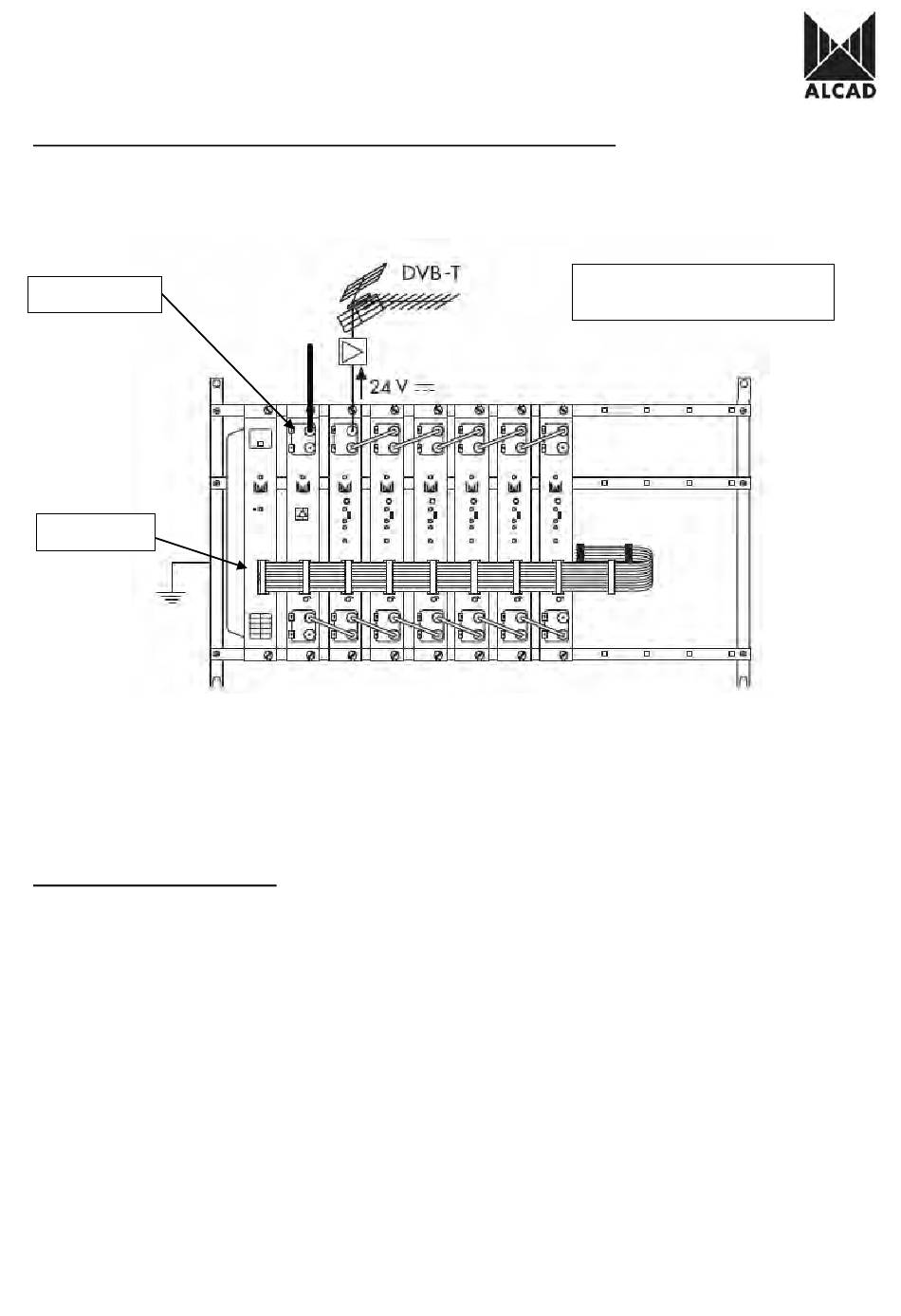

IMPORTANT: Layout of the modules must be as shown above. Power Supply (FA-310/312)
must be located on the far left hand side and launch amplifier (PA-720) must be the next
module in the chain. Please look at the above picture.
AIM PROGRAMMER TO IR SENSOR LOCATED ON EACH MODULE WHEN
PROGRAMMING
Programming of Modules
Ensure the following prior to programming:
• It is necessary to connect all the modules to the support frame SP-226 (code 9120130)
for the system to function.
• It is also recommended that you make the earth connection to the building using a cable
with a section of at least 4 mm.
• Ensure that you have the Alcad programmer PS-003 with firmware version 4.7 or later.
• Power supply/Control cable must be plugged into each module.
REMOVE
modules without disconnecting mains supply power from wall outlet. Always
disconnect the equipment, and then reconnect it to the mains supply so that the
amplifier recognises the new module. Failure to do so can cause equipment to fail.
Automatic Power detection/injection
for masthead amplifiers
DO NOT ADD OR
Advertisement
Related Manuals for Alcad TO-559
Summary of Contents for Alcad TO-559
- Page 1 • It is also recommended that you make the earth connection to the building using a cable with a section of at least 4 mm. • Ensure that you have the Alcad programmer PS-003 with firmware version 4.7 or later. • Power supply/Control cable must be plugged into each module.
- Page 2 1.0 Programming theTransmodulator To program the Transmodulator (TO-series), place the programming switch in the ON (upward) position which can be seen from picture below. When you turn the switch in the “ON” position the programming indicator will light up. While the programming indicator remains lit, the channel processor is ready to receive data from the PS programmer.
- Page 3 This is the Analog TV standard for Australia PAL B/G. Press the down arrow once so that you can see the screen shot as below “Output frequency”. Increase/decrease the values using the arrows or use the numeric keypad to enter the frequency output that is desired.
- Page 4 AUSTRALIAN DIGITAL/ANALOGUE FREQUENCY TABLE...
- Page 5 Please note offsets are required on some channels. e.g. Broadcaster Nine Metro requires 191.625 MHz therefore set offset to + 1/6. For offset values look at table below to give you the decimal Australian offsets. Use the left and right arrows to change to the offset required.
- Page 6 Below is a snapshot of what the “On Screen Display” will looks like. Output Analog Program selection list Frequency Input Digital Frequency Bandwidth Setting Firmware Version of Module Use the left/right arrows to move through the program list of displayed above. Once you have the desired program selected press the down arrow twice until you see the “Output Format “screen then press transmit...
- Page 7 Output Format Selection Once you have the desired audio output format press transmit to ensure setting is sent to module, then press the down arrow to go to the next screen below. The” Invert Dual” feature allows you to switch between the audio carriers from A-B to B-A. This inversion will be displayed in the OSD menu.
- Page 8 By selecting Subtitles list in the PS programmer and press the transmit button: on the OSD, the subtitles submenu will appear. Use the left/right buttons to move through the list of subtitles displayed. Press the transmit button once more to close the subtitles menu.
- Page 9 Once you have the desired audio level set press transmit to ensure setting is sent to module. The transmodulator has now been programmed; programming mode should be deactivated by placing the switch in the OFF position. The programming indicator light will go out. Ensure to set power level of each module using the Phillips head variable gain controller.
