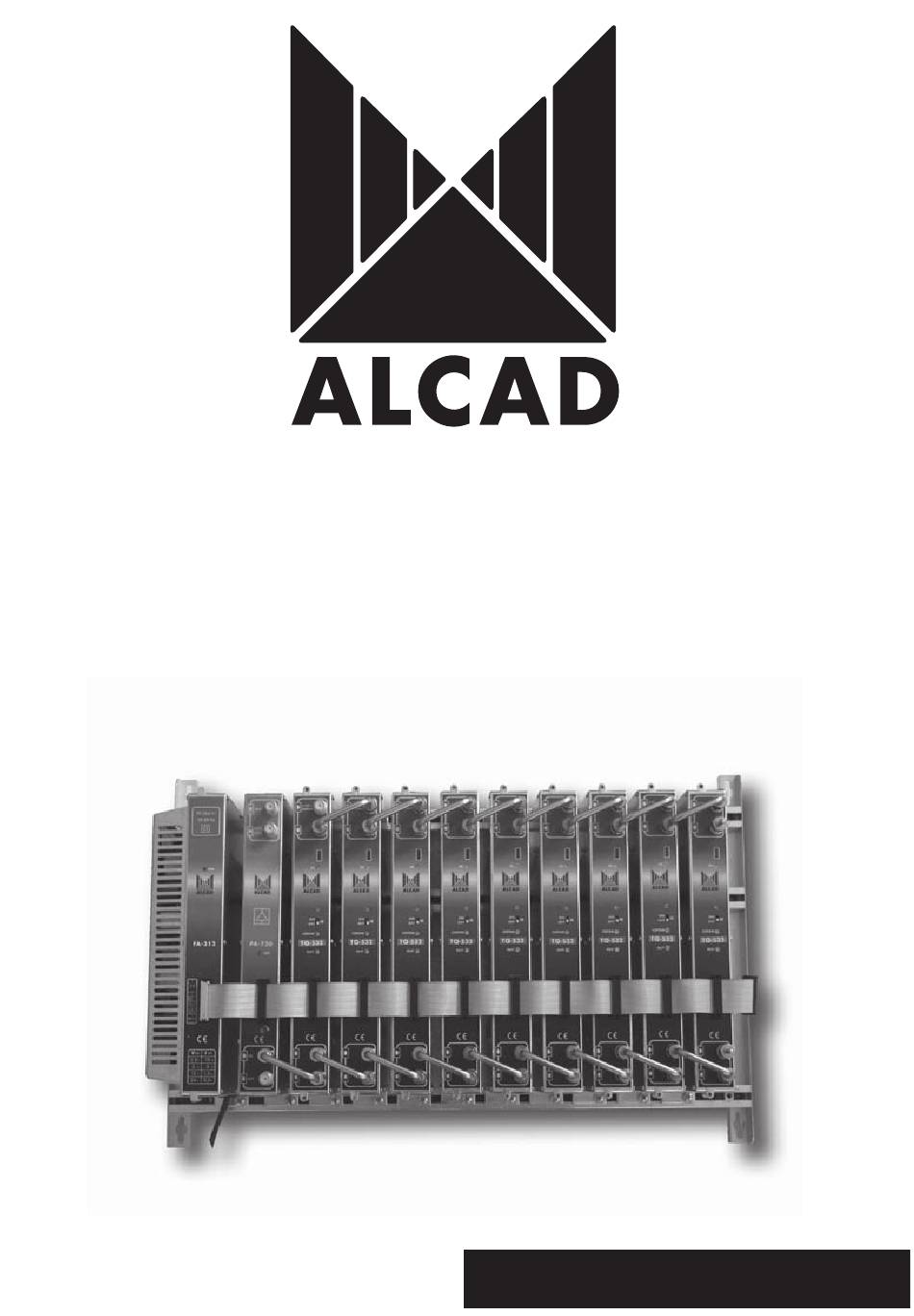

- Page 1 EQUIPO DE TRANSMODULADORES DVB-S/S2 A DVB-C DVB-S/S2 TO DVB-C TRANSMODULATORS EQUIPMENT STATION DE TRANSMODULATEURS DVB-S/S2 À DVB-C SERIE 912 SERIES...
- Page 2 TRANSMODULADOR DVB-S/S2 A DVB-C - DVB-S/S2 TO DVB-C TRANSMODULATOR -TRANSMODULATEUR DVB-S/S2 À DVB-C 9120150 CÓDIGO-CODE-CODE TQ-532 MODELO-MODEL-MODELE Sistema de TV DVB-S / DVB-S2 DVB-C TV system EN 302307 EN 300421 EN 300429 Système de TV RECEPTOR DVB-S/S2 - DVB-S/S2 RECEIVER - RECEPTEUR DVB-S/S2...
- Page 3 TRANSMODULADOR DVB-S/S2 A DVB-C - DVB-S/S2 TO DVB-C TRANSMODULATOR -TRANSMODULATEUR DVB-S/S2 À DVB-C 9120150 CÓDIGO-CODE-CODE TQ-532 MODELO-MODEL-MODELE MODULADOR DVB-C - DVB-C MODULATOR - MODULATEUR DVB-C Modulación 16 -32 - 64 - 128 - 256 QAM Modulation Modulation Ancho de banda...
- Page 4 AMPLIFICADOR BANDA ANCHA - BROADBAND AMPLIFIER - AMPLIFICATEUR LARGE BANDE CÓDIGO-CODE-CODE 9120093 MODELO-MODEL-MODELE PA-720 Sistema de TV AM-TV / DVB-T / DVB-C TV system Système de TV Rango de frecuencia 40 - 894 Frequency range Gamme de fréquences Ganancia Gain ±1,0 Gain ±...
- Page 5 Temperatura ambiente con/sin ventilador -10..+55/+45 °C Room temperature with/without fan Température ambiante avec ou sans ventilateur Índice de protección IP 30 Proteccion index Indice de protection CÓMO INSERTAR LOS PUENTES HOW TO INSERT CONNECTION BRIDGES COMMENT INSERER LES PONTETS FA-312 PA-720 TQ-532...
- Page 6 Programmable using a PC and the ASP programming software. Requires IP-001interface. Programmable avec un PC et le logiciel de programmation ASP. Nécessite l´interface IP-001. IP-001 CD ALCAD www.alcad.net Alcad System Programmer Ver. 1.03 y posteriores Ver. 1.03 and later Ver. 1.03 et suivantes Conexión via USB o SERIE Connection via USB or SERIAL port Connexion par USB ou port SÉRIE...
- Page 7 CONEXIÓN A LA RED ELÉCTRICA CONNECTION TO THE MAINS CONNEXION AU RESEAU ELECTRIQUE 4 mm 90..264 50/60Hz AMPLIFICACIÓN BANDA ANCHA BROADBAND AMPLIFICATION AMPLIFICATION LARGE BANDE DVB-S2 DVB-S2 DVB-S DVB-S FA-312 41,5 mm PA-720 9 x TQ-532 SP-226...
- Page 8 AMPLIFICACIÓN MONOCANAL MONOCHANNEL AMPLIFICATION AMPLIFICATION MONOCANAL DVB -S2 DVB -S2 DVB-S DVB-S SP-226 FA-312 9 x TQ-532 AM-TV DVB-T SP-126 AS-125 3 x ZG-431 9 x ZG-431/611 FD-225 BM-100 BM-100 FD-213 BM-100 BM-100 FD-213 BM-100 BM-100 FD-210 BM-100 BM-100...
-
Page 10: Declaration Of Conformity
ALCAD, S.L. Company Address: Pol. Ind. Arreche-Ugalde, 1 Apdo. 455, 20305 IRÚN (Guipúzcoa), SPAIN declares that the product Model Number(s): TQ-532, PA-720, FA-312, FA-310 Product Description: DVB-S/S2 TO DVB-T TRANSMODULATORS EQUIPMENT Product Option(s): INCLUDING ALL OPTIONS is in conformity with:...
