Stoves 602SCTC
Date: 01/07/19
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 602SCTC and is the answer not in the manual?

Questions and answers

Related Manuals for STOVES 602SCTC

Summary of Contents for STOVES 602SCTC

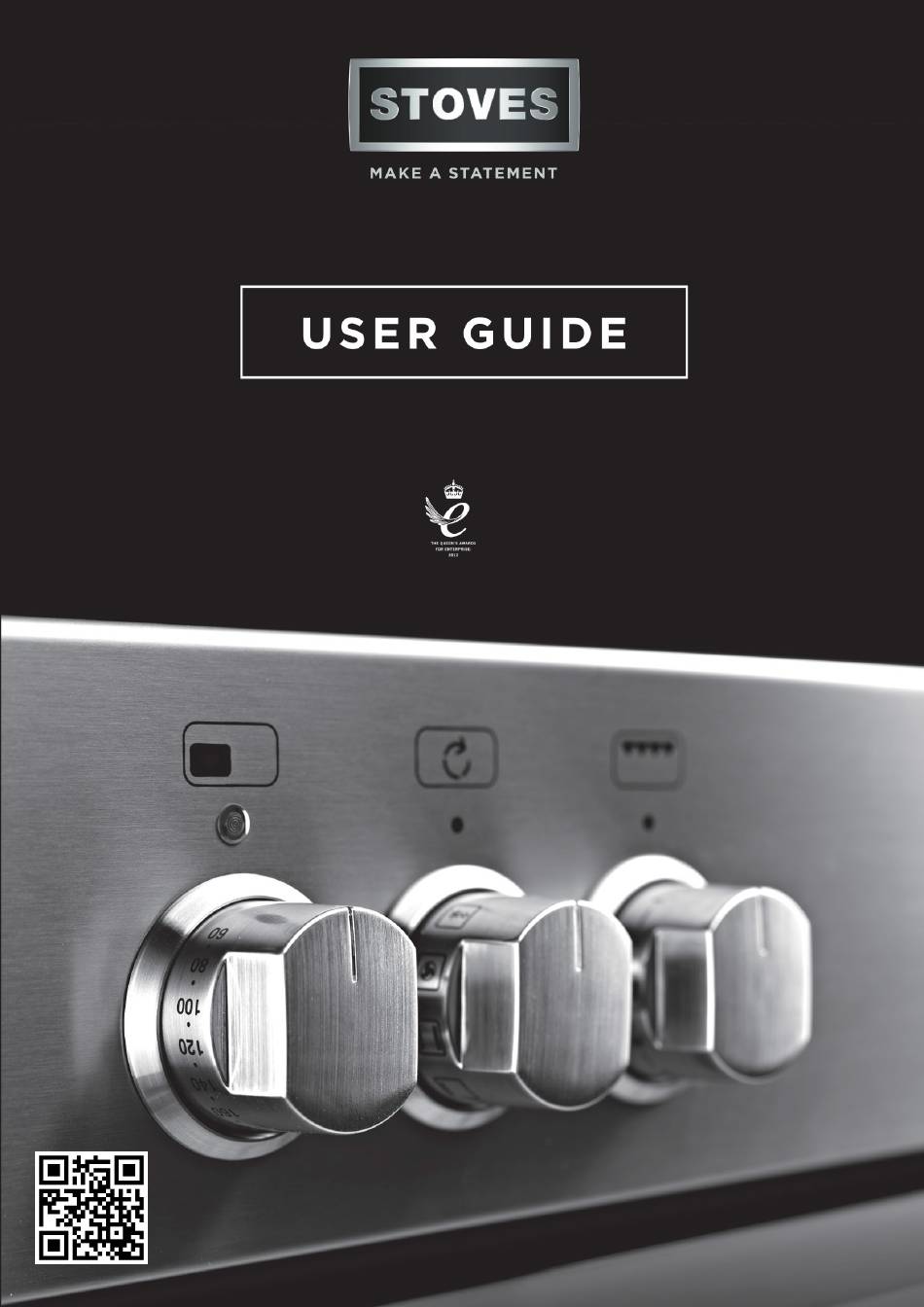

  • Page 1 Stoves 602SCTC Date: 01/07/19...
  • Page 2 NZ - New Zealand DE - Germany NL - Netherlands AU - Australia ES - Spain To contact Stoves about your appliance, please call: Warranty Registration Customer Care Helpline 0800 952 1065 0344 815 3740 In case of difficulty within the UK...
  • Page 3 INTRODUCTION This user guide book is designed to help you through each step of owning your new product. Please read it carefully before you start using your appliance, as we have endeavored to answer as many questions as possible, and provide you with as much support as we can. General information, spares and service information is available from our website.
  • Page 4 SAFETY WARNING • If the hob surface is cracked, broken or shattered, switch off the appliance to avoid the possibility of electric shock and call for a service engineer’s visit. • During use the appliance becomes hot. Care should be taken to avoid touching heating elements.
  • Page 5 • Always switch off your appliance and allow it to cool down before you clean any part of it. • Although every care has been taken to ensure this appliance has no sharp edges. We recommend that you wear protective gloves when installing and moving this appliance.

  • Page 6: Using Your Appliance

    USING YOUR APPLIANCE Getting to know your product Note: Your appliance layout may differ depending on the model. Control Panel Hob functions ON/OFF control Heating zone selection controls Timer control Dual zone Power slider touch control control Timer regulating controls Reset Control Keylock control...

  • Page 7: Touch Controls

    Before using the Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your ceramic hob. Touch controls Use the flat of your finger, not the tip. The controls respond to touch, so you don’t need to apply any pressure.

  • Page 8: Start Cooking

    Start cooking After switching the hob on, the buzzer will beep once. All the indicator lights, light up for a second and go out, to indicate that the ceramic hob is now in standby mode. 1. Touch the On/Off control key. All the indicators show “-” 2.

  • Page 9: Finish Cooking

    Finish cooking Touch the relevant heating zone selection control. Turn the cooking zone off by touching the slider to . Make sure that the heating zone control display shows 0. Turn the whole cooktop off by touching the On/Off control key.
  • Page 10 Using the Dual zone function • The function only works in bottom left and top right cooking zones: • The dual cooking zone has two cooking areas that you can use a central section and an outer section. You can use the central section (A) independently or both sections (B) at once. 1.

  • Page 11: Timer Control

    Locking and unlocking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the On/Off control are disabled. To lock 1.
  • Page 12 4. Touch the reset control to silence the alarm. Note: The minute minder does not switch any of the heating zones off automatically, and so any heating zones in use will continue to heat up until switched off manually. Setting the timer to turn one or more cooking zones off automatically 1.
  • Page 13 4. To change or cancel the cooking duration time, please follow the below instructions: To modify: 1. Select the relevant heating zone by touching the relevant zone selection control key. 2. While the current power level figure is flashing, touch the timer key. 3.
  • Page 14 Setting the timer to turn more than one cooking zone off automatically Follow the steps above to programme the timer to switch more than one zone off automatically or to change or cancel the cooking duration time. • When the timer is controlling more than one zone simultaneously, the timer display will always show the time remaining for the zone which is due to finish first.

  • Page 15: Over Temperature Protection

    Over-Temperature Protection A temperature sensor measures the temperature underneath the glass. If an excessively high temperature is observed, then the heating elements will be switched off automatically. Residual Heat Warning “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature.

  • Page 16: Cleaning Your Appliance

    CLEANING YOUR APPLIANCE Note: Always switch off your appliance and allow it to cool down before you clean any part of it. Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to them fading.

  • Page 17: Installation

    Installation Preparing the worktop cut out Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless sealed) to avoid the risk of electric shock and deformation of the worktop or adjacent cabinetry caused by heat given off by the hob.

  • Page 18: Before Locating The Fixing Brackets

    WARNING: Ensuring Adequate Ventilation Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In order to prevent accidental touch of the hot base of the appliance or the risk of electric shock, insert a wooden isolation plate at least 50mm beneath the base of the hob, unless an oven is installed directly below the hob.
  • Page 19 Adjust the bracket orientation to suit different worktop thickness. Ensure that there is a small gap between the installation brackets and the underside of the worktop to allow space for heat expansion - see the above.

  • Page 20: Connecting The Hob To The Mains Power Supply

    Connecting the hob to the mains power supply WARNING: This appliance must be earthed. 1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. 2.
  • Page 21 Please keep this handbook for future reference, or for anyone else who may use the appliance.
  • Page 22 Please keep this handbook for future reference, or for anyone else who may use the appliance.
  • Page 23 Please keep this handbook for future reference, or for anyone else who may use the appliance.

  • Page 24: Technical Data

    TECHNICAL DATA Hob Details Cooking hob 602SCTC Cooking Zones 4 Zones Product Size D x W x H (mm) 520 x 590 x 55 Building-in Dimensions A x B (mm) 561 x 491 Supply Voltage 220-240V~ 50Hz or 60Hz Installed Electric Power (kW) 6.0 - 7.2...
