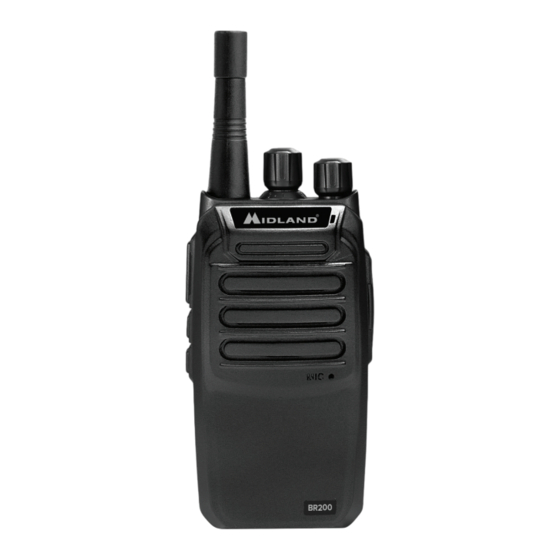

Midland BizTalk BR200 Owner's Manual
Business band
Hide thumbs
Also See for BizTalk BR200:
- User manual (20 pages) ,
- Programming instructions manual (9 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midland BizTalk BR200
Summary of Contents for Midland BizTalk BR200
-

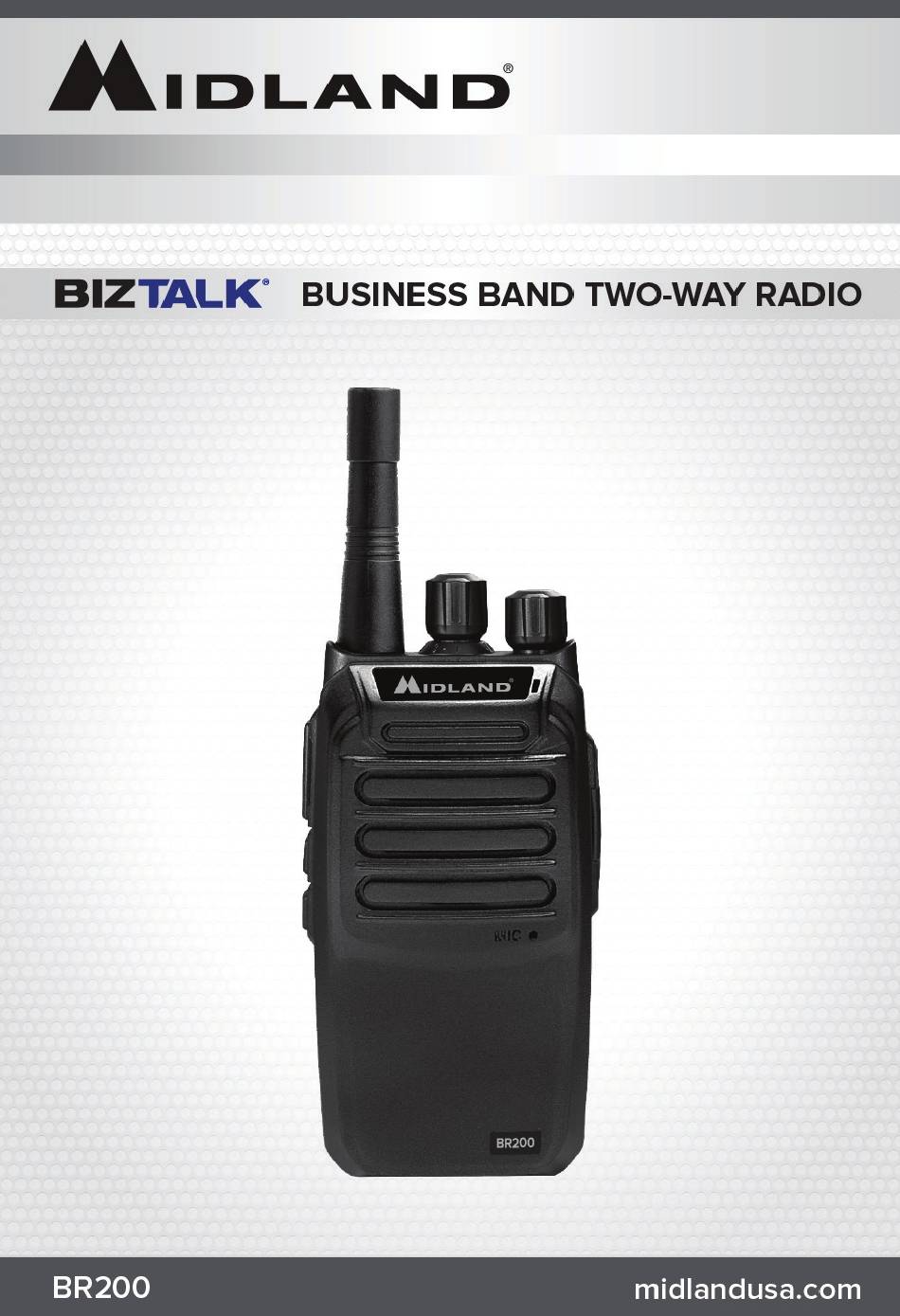

Page 2: Table Of Contents
Model BR200 TABLE OF CONTENTS INTRODUCTION ........................3 FEATURES ...........................3 FCC NOTICE ..........................3 EXPOSURE TO RADIO FREQUENCY ENERGY ..............4 BODY WORN OPERATION .......................4 GETTING TO KNOW YOUR RADIO-QUICK START ............5 CONTROLS..........................5 INSTALLING THE ANTENNA ....................6 INSTALLING THE BATTERY ......................6 INSTALLING THE BELT CLIP ..................... 7 INSTALLING EXTERNAL ACCESSORIES ................. -
Page 3: Introduction
Model BR200 INTRODUCTION For over half a century, Midland Radio has been providing radio communication with superior quality, reliability, and strong value. With these core values in mind, the Midland BR200 provides a communication solution for manufacturing, retail, hospitality, construction, warehousing, maintenance, and other business uses. -
Page 4: Exposure To Radio Frequency Energy
Use of any accessories not supplied or approved by Midland may exceed FCC/ Health Canada RF exposure guidelines. If you do not use accessories supplied or approved by Midland, ensure the radio and its antenna are at least 1 inch (2.5cm) from your body when transmitting. -
Page 5: Getting To Know Your Radio-Quick Start
Model BR200 GETTING TO KNOW YOUR RADIO-QUICK START CONTROL A. Antenna Install the antenna per instructions below before operating the radio. B. LED Indicator The LED is green when receiving signals. Red when transmitting. C. Speaker. D. Channel Selection Rotate to the desired channel setting. E. -
Page 6: Installing The Antenna
Model BR200 INSTALLING THE ANTENNA Align the antenna with the threaded connector located on the top of the radio. Holding the antenna at the base, rotate the antenna clockwise until secure. Antenna • Be careful not to over tighten to avoid damaging the antenna mount. -
Page 7: Installing The Belt Clip
Model BR200 INSTALLING THE BELT CLIP With the back of the radio facing you, align the BELT CLIP with the screw holes on the radio. Attach the BELT CLIP with the Phillips-Head screws that came with the belt clip. Be careful not to over tighten screws to avoid damaging radio chassis. - Page 8 It is recommended that the battery pack be charged with the radio turned off to ensure it fully charges. • Only use the Midland Lithium-Ion battery pack. • Do not attempt to charge any battery packs other than the one indicated in the manual.
-
Page 9: Use And Care
Model BR200 USE AND CARE • Use only a soft, damp cloth to clean the radio. • Do not use alcohol or cleaning solutions to clean the radio. • Do not immerse the radio in water. • Dry the radio with a dry lint-free cloth should it get wet. •... -
Page 10: Transmitting And Receiving A Call
Model BR200 TRANSMITTING AND RECEIVING A CALL For maximum clarity, hold the radio at least 1 inch (2.5 cm) from your mouth. 1. Press and hold the PTT button and speak in a normal voice into the microphone. The RX/TX LED will glow red while transmitting. 2. -
Page 11: Privacy Codes
2. Make sure the charger is plugged in and the outlet has power. 3. Make sure the battery pack is installed properly. For further assistance, contact the Midland Customer Service Team at (816) 241-8500. Most problems can be remedied over the phone without returning the radio for service. -
Page 12: Default Frequencies Chart
Model BR200 DEFAULT FREQUENCIES CHART CH No. Freq. (MHz) Code CH No. Freq. (MHz) Code 464.5500 464.5500 467.9250 467.9250 467.8500 467.8500 467.8750 467.8750 464.5500 464.5500 467.9250 467.9250 467.8500 467.8500 467.8750 467.8750 Page 12 midlandusa.com... -
Page 13: Available Frequencies Chart (Channel Bank)
Model BR200 AVAILABLE FREQUENCIES CHART Freq. (MHz) Freq. (MHz) Freq. (MHz) Freq. (MHz) 464.5000 462.8375 467.8875 452.7625 464.5500 462.8625 467 9125 452.8625 467.7625 462.8875 469.4875 456.1875 467.8125 462.9125 469.5125 456.2375 467.8500 464.4875 469.5375 456.2875 467.8750 464.5125 469.5625 468.2125 467.9000 464.5375 462.1875 468.2625 467.9250... -
Page 14: Ctcss Privacy Codes Chart
Model BR200 CTCSS PRIVACY CODES CHART Code No. Freq. (Hz) Code No. Freq. (Hz) 67.0 131.8 71.9 136.5 74.4 141.3 77.0 146.2 79.7 151.4 82.5 156.7 85.4 162.2 88.5 167.9 91.5 173.8 94.8 179.9 97.4 186.2 100.0 192.4 103.5 203.5 107.2 210.7 110.9... -
Page 15: Dcs Privacy Code Chart
Model BR200 DCS PRIVACY CODE CHART Code Code Code Code Page 15 midlandusa.com... -
Page 16: Limited Warranty
Model BR200 LIMITED WARRANTY Midland Radio Corporation will repair or replace, at its option without charge, any Midland UHF transceiver which fails due to a defect in material or workmanship within one year following the initial consumer purchase. This warranty does not apply to water damage, battery leak or abuse. Acces- sories have a 90-day warranty from date of purchase, including any antennas, batteries, chargers, or headsets/earphones. -
Page 17: Accessories
Model BR200 ACCESSORIES Accessories can be purchased from your local dealer or at www.midlandusa.com. BGC200 Multi-Unit Over the Ear Charger Headset $99.99 $29.99 Concealed Speaker Headset Microphone $39.99 $39.99 BRB200 D-ring Li-Ion Headset Spare Battery $29.99 $29.99 Programming Cable for BR200 $9.99 Page 17 midlandusa.com... - Page 18 We’d love to hear from you! Let us know what you think of your new Midland product at or by visiting us at midlandusa.com Note: Features & Specifications are subject to change without notice. MIDLAND is not responsible for unintentional errors or omissions on its packaging.
