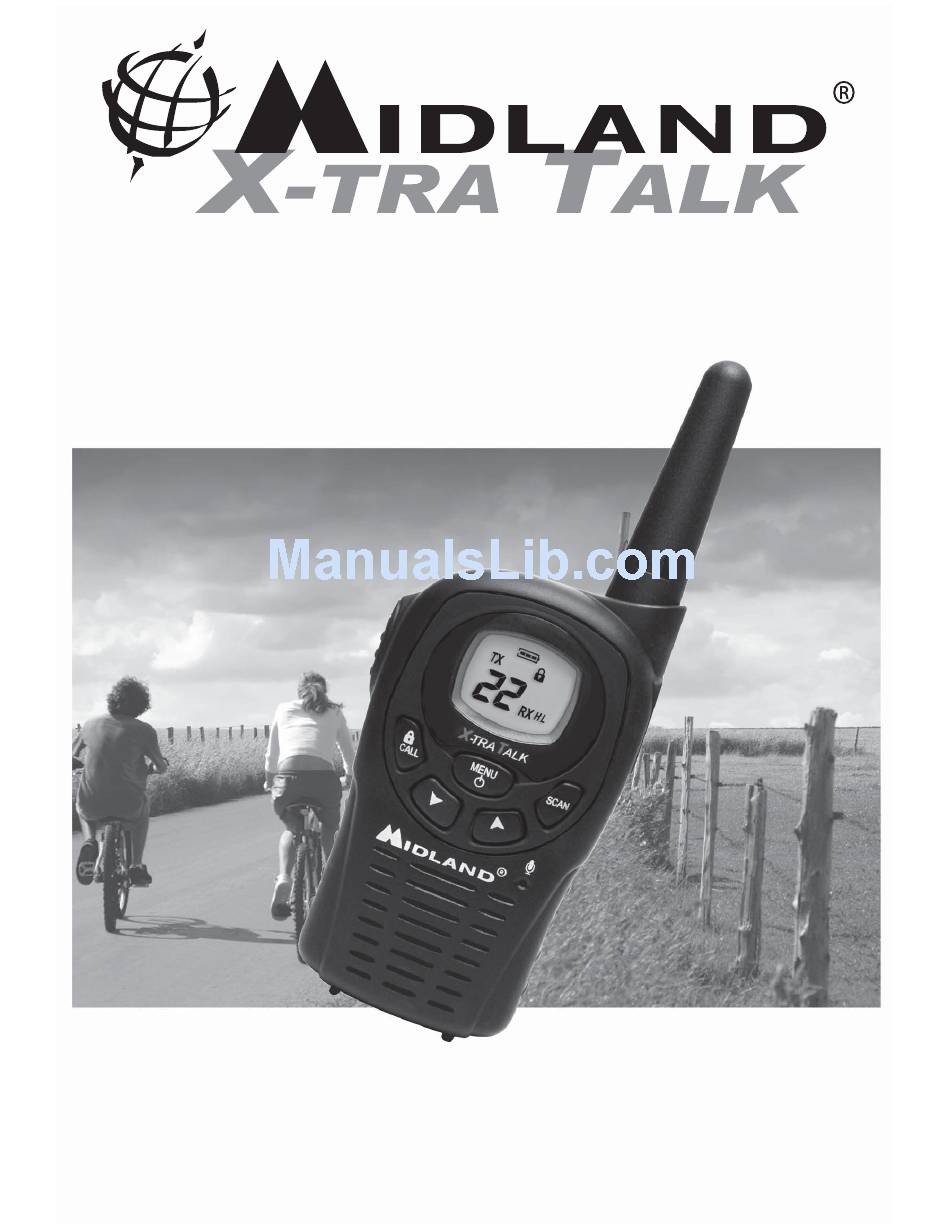

  • Page 1

    LXT360/365 Series GMRS/FRS Radio OWNER'S MANUAL

  • Page 2

    To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF...

  • Page 3

    IMPORTANT: Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations.

  • Page 4: Lcd Display

    LCD DISPLAY CONTROLS BATTERY INSTALLATION Your LXT360/365 Series radio operates with either 4 AAA alkaline batteries or an optional NiMH battery pack. The belt clip should be removed (see below) to ease installation or removal of the batteries. To install the batteries: 1.

  • Page 5: Installing The Belt Clip

    BATTERY COMPARTMENT BATTERY COMPARTMENT COVER Press here and push down to open INSTALLING THE BELT CLIP To install the BELT CLIP, slide the clip up into the slot on the back of the radio until the BELT CLIP LATCH clicks. To remove the BELT CLIP, press the LOCK TAB up, then gently pull the belt clip down toward the bottom of the radio.

  • Page 6: Low Battery Level Indicator

    In order to ensure that the battery pack is fully charged, it is recommended that the battery pack be charged for at least 12 hours with the radio turned OFF. 1. Only use our NiMH battery pack. 2. Do not attempt to charge alkaline batteries or any batteries or battery packs other than the one indicated in the manual.

  • Page 7

    ABOUT RANGE Your LXT Series radios are designed to give you maximum range under optimum conditions. Optimum Conditions are: l Over water l Open rural areas without obstructions l Flat areas where you can see the other person To ensure you get maximum range: l Be sure to use fresh or fully charged batteries - low batteries will cause low power conditions l Be sure you are on a GMRS channel - FRS channels are...

  • Page 8

    CALL ALERT Your LXT360/365 Series can transmit a call alert for a fixed length of time. To send a call alert, press the CALL button. The TX icon will appear while transmitting a call alert and a tone can be heard on the speaker for confirmation.

  • Page 9

    ROGER BEEP (end of transmission) TONE When the PTT button is released, the radio will beep to confirm to other users that your transmission has finished. To turn the ROGER BEEP tone on, press the MENU button until the display shows an “rb” icon while on the right of the “rb” display, an “oF”...

  • Page 10: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM SOLUTION No Power Cannot Receive Messages Radio is not responding to button presses Display is dim Charger not functioning - Contacts on the bottom of the radio may require USE AND CARE 1. Use a soft damp cloth to clean the radio 2.

  • Page 11: Specifications

    SPECIFICATIONS Channels Operating Frequency UHF 462.5500 ~ 467.7125 MHz Power Source GMRS/FRS FREQUENCY CHART (MHz) CH. No CH. Freq. 462.5625 462.5875 462.6125 462.6375 462.6625 462.6875 462.7125 467.5625 * Channels 8~14 are low-power FRS license free channels 22 GMRS/FRS Channels 4 AAA Alkaline or 4.8V Rechargeable Ni-MH battery pack CH.

  • Page 12

    LIMITED WARRANTY Midland Radio Corporation will repair or replace, at its option without charge, any Midland FRS/GMRS transceiver which fails due to a defect in material or workmanship within Three Years following the initial consumer purchase. This warranty does not apply to water damage, battery leak or abuse.

  • Page 13

    ACCESSORIES Accessories can be purchased at or fill in the form on the following page and mail it to our address. AVP-1 1 - 2 Over the Ear Mic. - $19.99 AVP-H H 1 - 1 Open Face Helmet - $49.99 AVP-H H 2 - 1 Closed Face...

  • Page 14

    - 2 Ear Wrap - $39.99 AVP-H H 5 - 2 Behind the Head - $39.99 AVP-H H 7 - 2 Mossy Oak - $39.99 AVP-6 6 - 1 Dual Desk - 2 Rechargeable - 1 AC Adapter - 1 DC Cigarette - $39.99 Headset Headset...

  • Page 15: Accessories Order Form

    ACCESSORIES ORDER FORM Please send Money Order or fill in Visa/MasterCard information and mail to the address below. Please DO NOT send cash or checks. Make Money Order to Midland Radio Corporation. Name: _____________________________________________________ Address: ___________________________________________________ City: _____________________ State _____Zip Code _____________ Tel: ______________________ email: ___________________________ CC# _____________________ Type: __________ Exp.

  • Page 16

    M I I D D L L A A N N D D R R A A D D I I O O C C O O R R P P O O R R A A T T I I O O N N visit us at Note: Features &...
