Owner's Manual
2019
V 1.1
www.samebike.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T7 2019 and is the answer not in the manual?

Questions and answers

Related Manuals for Samebike T7 2019

Summary of Contents for Samebike T7 2019

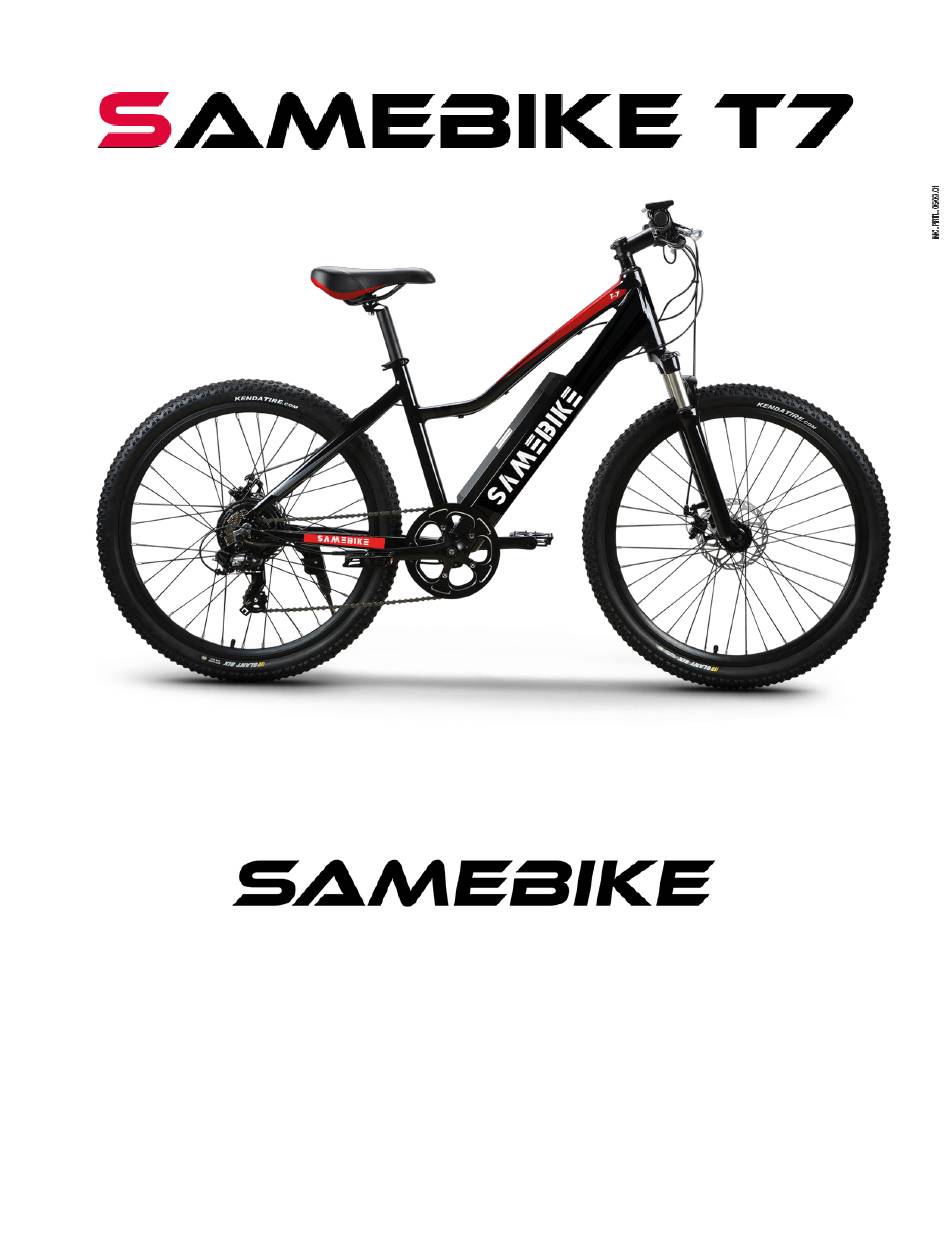

  • Page 1 Owner’s Manual 2019 V 1.1 www.samebike.nl...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Warning Unboxing Getting Started / Unboxing Install the handlebar Install the front wheel and pedals Preparing to Ride Recommended Torque Values Battery Operating your battery Keeping Your Battery Healthy Charging Your Battery Battery Safety Operating your new eBike Cockpit Tour Cockpit Instruments...

  • Page 3: Contact Information

    Thank you for your purchase of a Samebike eBike. We appreciate your business and we hope you thoroughly enjoy riding your new eBike. If you need any assistance please do not hesitate to reach out to us. Contact Information Email: info@samebike.nl Website: www.samebike.nl...

  • Page 4: Warning

    The warranty for the Samebike T7 does not cover water damage. For technical assistance or warranty claims contact Samebike at (+31) 6 3837 1452 or email at info@samebike.nl...

  • Page 5: Unboxing

    For instructions and specifications on the Samebike T7, visit our website page: www.samebike.nl. Preparing the Bike The Samebike T7 comes to you 99% assembled so all you have to do is ensure everything is properly secured, attach the front wheel and install the handlebar, gas throttle and pedals, and then you can get riding! The Samebike T7 is really easy to assemble.
  • Page 6 Install the handlebar and gas throttle 1. Use a 5mm allen wrench to losely install the bolds. Be sure to center the handlebar and ensure stem clamp faceplate bolts are secured to the recommended torque value. Rotate the handlebar angle, to fit the rider comfortably. 2.
  • Page 7 • Make sure the lever is open and guide the front wheel carefully onto the axle and brake caliper. Fully seat the skewer in the fork dropouts (and the brake rotor in the caliper) and add tension to the lever by turning the thumbnut. When there is enough resistance to hold the quick release lever in line with the axle, close the lever using the palm of your hand without touching the brake rotor.

  • Page 8: Preparing To Ride

    Install the pedals 1. Locate the pedal with a smooth pedal axle exterior and an “R” stamped into the end of the pedal axle , which indicate it is the right pedal. The right pedal goes on the crank on the right side of the bike (which has the drivetrain gears, is the same as a rider’s right side when riding).

  • Page 9: Recommended Torque Values

    ● Ensure all cables and connectors at the front of the bike are securely connected or certain components may not work including the front light, the motor inhibitor switches, LCD display, and throttle. The motor inhibitor switches shut the motor off as soon as the rider hits the brakes.

  • Page 10: Battery

    Operating your battery Your bike comes with a 36V / 10.4 Ah lithium-ion battery with LG cells. Key operating features of the battery can be found below: 1. Your bike’s battery comes with a set of keys that are used to LOCK/UNLOCK it to the frame.

  • Page 11: Keeping Your Battery Healthy

    5. Here are the steps to charge your battery; Step 1 – Turn of the battery. Step 2 – Connect the charger tot the battery, then plug the charger into the power outlet. Step 3 – The LEDs on the charger where turned on as follows; The red light lights up – The battery is charging.

  • Page 12: Charging Your Battery

    Locate the charge port on the side of the battery. You can charge the battery from this port while the battery is on or off the bike. The battery on the Samebike T7 comes with almost a full charge. You should plug your battery in when you first receive it to ensure it is fully charged prior to your first ride.

  • Page 13: Operating Your New Ebike

    Make sure you read this entire manual before turning on and operating your eBike. Now that your eBike is mounted it is almost time to start riding. The Samebike T7 eBike is equipped with pedal assist, a optional twist throttle, and can also be used as a regular bike. To use electric assist, the battery must be charged, inserted into the frame, although it is not necessary for the key to be in the battery.

  • Page 14: Cockpit Tour

    Cockpit Tour Before learning about how to operate your new eBike, it is important you know where all of the important controls are located. Below are photos showing where key controls and features are on your eBike. Cockpit Instruments Location Component Brakes Bell...

  • Page 15: Your First Ride

    Your First Ride To use your electric bike: 1. Ensure your battery is fully charged before your first ride. 2. If the battery is not already inside the bike, slide it inside the mount and lock it in position. Make sure the battery is all the way inside the frame. 3.

  • Page 16: Operating Safety

    7. To turn on the headlight, press and hold the up arrow on the display for 3 seconds. However, the Samebike T7 doesn’t come with front and rear light, because it’s a mountainbike.

  • Page 17: Speed Gear System

    Mechanical Disc Brakes The Samebike T7 is equipped with mechanical disc brakes to ensure that you can stop quickly even at high speeds. The brakes are engaged by squeezing the brake levers towards the handlebars. This pulls the brake cable, which closes the brake caliper. The brake caliper then makes contact with the brake rotor which is attached to the bike wheels.

  • Page 18: Mechanical Disc Brakes

    This is due to the high amount of friction between the brake pad and the rotor. Ensure you do not touch the disc rotor right after use. Contact Samebike eBikes if you have ANY questions regarding the operation of your Samebike eBike.

  • Page 19: Lcd Display Functions

    LCD Display Functions / Presentation of Screen DOWN MODE Display Readouts Location Description Pedal assist (PAS) Level Indicator Odometer, Trip A, Trip B, Voltage, Current, TM readouts Battery level indicator bar Speedometer in MPH or KM/H Light On/Off Indicator Mile and kilometer indicators...

  • Page 20: Operating The Lcd Display

    Operating the LCD Display Turning the bike ON/OFF Hold the mode button until the display turns Increase Pedal Assist Level Press up arrow button Decrease Pedal Assist Level Press down arrow button Turn ON/OFF front lights Hold the up arrow button for 2 seconds until lights turn on, repeat to turn off Toggle Odometer, Trip A, Trip B, Voltage, Press and let go of the mode button...
  • Page 21 maximum operating speed of the vehicle: for example, input 27 indicates that the maximum operating speed of the vehicle will not exceed 27km/h; The drive speed is maintained at this set value. The max value allowed is 35. Anything above this will not be recognized.

  • Page 22: Changing The Top Speed

    5. Power the bike off by holding the “mode” button to save the settings you have just changed. Congratulations! You can now cruise at speeds of up to 22 mph / 35 km/h on your Samebike T7! Exercise increased caution as riding at higher speeds poses an increased safety risk and...

  • Page 23: Battery Capacity Display

    Battery Capacity Display In the middle of the LCD display a battery indicator bar can be found which is labeled “energy bar”. This battery indicator shows the estimated charge level left in the bikes battery. As the battery depletes, tick marks will begin to disappear according to approximately how much charge in the battery has been used.

  • Page 24: Maintaining Your Bike

    ● Before each ride check wires and connections to ensure there is no damage. ● The Samebike T7 is not waterproof. The electrical components can get wet and not sustain damage in most rain showers, but Samebikec eBikes does not recommend riding or storing the bike in wet conditions or severe weather.

  • Page 25: Safety

    Safety Helmets and Local Laws You are not obligated but always wear a helmet when riding your eBike. Ensure that the helmet fits your head and is securely tightened down. Before riding, read local laws and comply with all rules relating to biking and eBiking in your area. If you attach a seat for children to the bike they must also be wearing a properly fitted helmet at all times.

  • Page 26: Warranty

    We may elect to replace the battery charger of the Samebike eBike at no extra cost to you, with the same model or similar model rather than to repair it.
  • Page 27 Note that Insurance policies may not provide coverage for accidents involving SAMEBIKE EBIKES. To determine if coverage is provided, you should contact your insurance company or agent. Samebike eBikes reserves the right to change its warranty at any time.
