5 FOR THE AUTHORIZED SERVICE TECHNICIAN

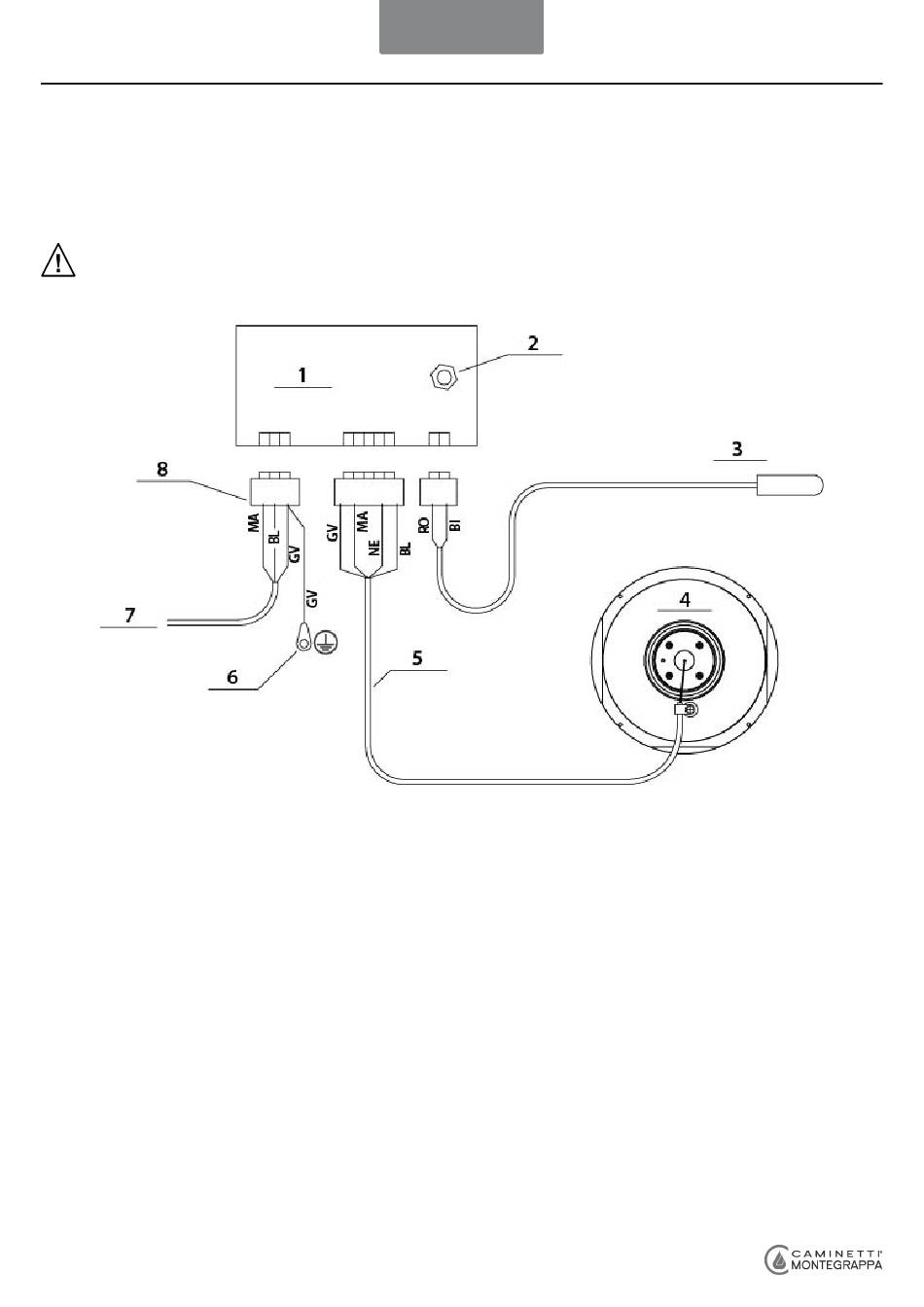

5.1 Wiring-diagram
WARNING: Even after being switched off, the appliance is not disconnected from electrical power; therefore, before
removing the cladding or the back panel and/or the screws holding the electronic control unit, always be sure to
first unplug the power cord or turn off the circuit breaker.
1. Control unit
2. Capacitor locking nut
3 .Sensor PT100
L = 2150 mm
TECH 3
PRACTICAL SCHEME LEGEND
3 poli = 3 poles: MA = brown - BL = blue - GV = yellow-green
5 poli = 5 poles: GV = yellow-green - MA = brown - NE = black - BL = blue
2 poli = 2 poles: RO = red - BI = white
4. Fan
5. 8 mm Ø boot
L= standard length supplied (300 mm)
6. Eyelet for grounding
ENGLISH
7. Power supply cord
Cord length = 3000 mm
Sheath length = 2700 mm
8. Connection terminal board
