UI0xx
Summary

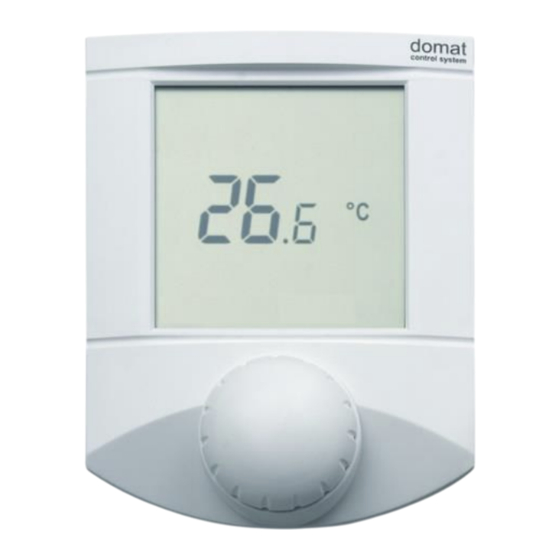

The UI... room unit range is a family of universal communicative human-machine
interface for control of HVAC units and plants, and IRC controllers. The units
communicate over Modbus RTU / RS485 and they can be used as open system
components with majority of building control system and controllers.
Application
Function
The units acquire temperature and optionally relative humidity in room, temperature
correction (knob) and required operation status which is set by push of the button or
in menu. In the configurable menu following values can be set and displayed:
domat UI0xx
Communicative room units and
sensors
▪
ripening and cooling boxes, datacenters, controlled climate storage rooms,
alarm messaging systems etc.
▪
systems with fancoils, convectors, floor and radiator heating, AHUs, air
conditioning units.
▪
control of boilers, DHW, heating circuits, building controls in general
▪
monitoring of room temperature and humidity
▪
with a SCADA system: temperature, humidity and status recording, remote
control.
-
temperature, actual temperature correction
-
humidity (actual value only at room units containing the humidity sensor)
-
time (only display at room units with RTC)
-
basic setpoint - day
-
basic setpoint - night
-
outside temperature for heating enable
-
DHW temperature
-
heating curve type (1...4)
-
operation mode (Residential with Day, Night, Time schedule, Off, or Hotel /
Office with Comfort, Standby, Party, Off)
-
fan stage (Auto, Off, St.1, St. 2, St. 3)
-
A/C mode (Auto, Heating, Cooling, Off, Fan only)
-
weekly scheduler: 7 days, up to 6 events per day
03/2017 Subject to technical changes.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for domat UI0 Series
Summary of Contents for domat UI0 Series
- Page 1 Office with Comfort, Standby, Party, Off) fan stage (Auto, Off, St.1, St. 2, St. 3) A/C mode (Auto, Heating, Cooling, Off, Fan only) weekly scheduler: 7 days, up to 6 events per day domat UI0xx 03/2017 Subject to technical changes.
- Page 2 The interface is optically separated (except for UI010). Display LCD 60 x 60 mm, symbol set see above Terminals screw terminals for wires 0,14 – 1,5 mm Cover ABS, RAL9010, other colours Weight 0,13 kg Dimensions see below domat UI0xx 03/2017 Subject to technical changes.
- Page 3 4: DO2 output 2, 24 V AC against G0 5: G0 power, outputs, inputs – common point 6: G0 power, outputs, inputs – common point 7: G power 8: K- communication RS485 - 9: K+ communication RS485 + domat UI0xx 03/2017 Subject to technical changes.
- Page 4 / rH sensors, both optionally with remote controlled inputs / outputs. Process control algorithms (activating of the outputs by increased / decreased temperature, humidity etc.) must be implemented in a master controller. domat UI0xx 03/2017 Subject to technical changes.
- Page 5 When removing the display part, proceed as follows: cover press gently the side parts of the unit and pull the right of the display part by several milimeters pull the left of the display part domat UI0xx 03/2017 Subject to technical changes.
- Page 6 The device contains a non-rechargeable battery which backups the real-time clock and RoHS notice part of the memory. After the device is not operable, please return it to the manufacturer or dispose of it in compliance with local regulations. domat UI0xx 03/2017 Subject to technical changes.
- Page 7 03/2015 — The UI0x2 from this revision have two extra digital inputs. For previous version are not accessible. version 09/2016 — Changed the format and reference to the configuration software. 03/2017 —Added Intallation, Opening the cover, Diplay and link on the datasheet with other colours. domat UI0xx 03/2017 Subject to technical changes.
