UX0...
Summary

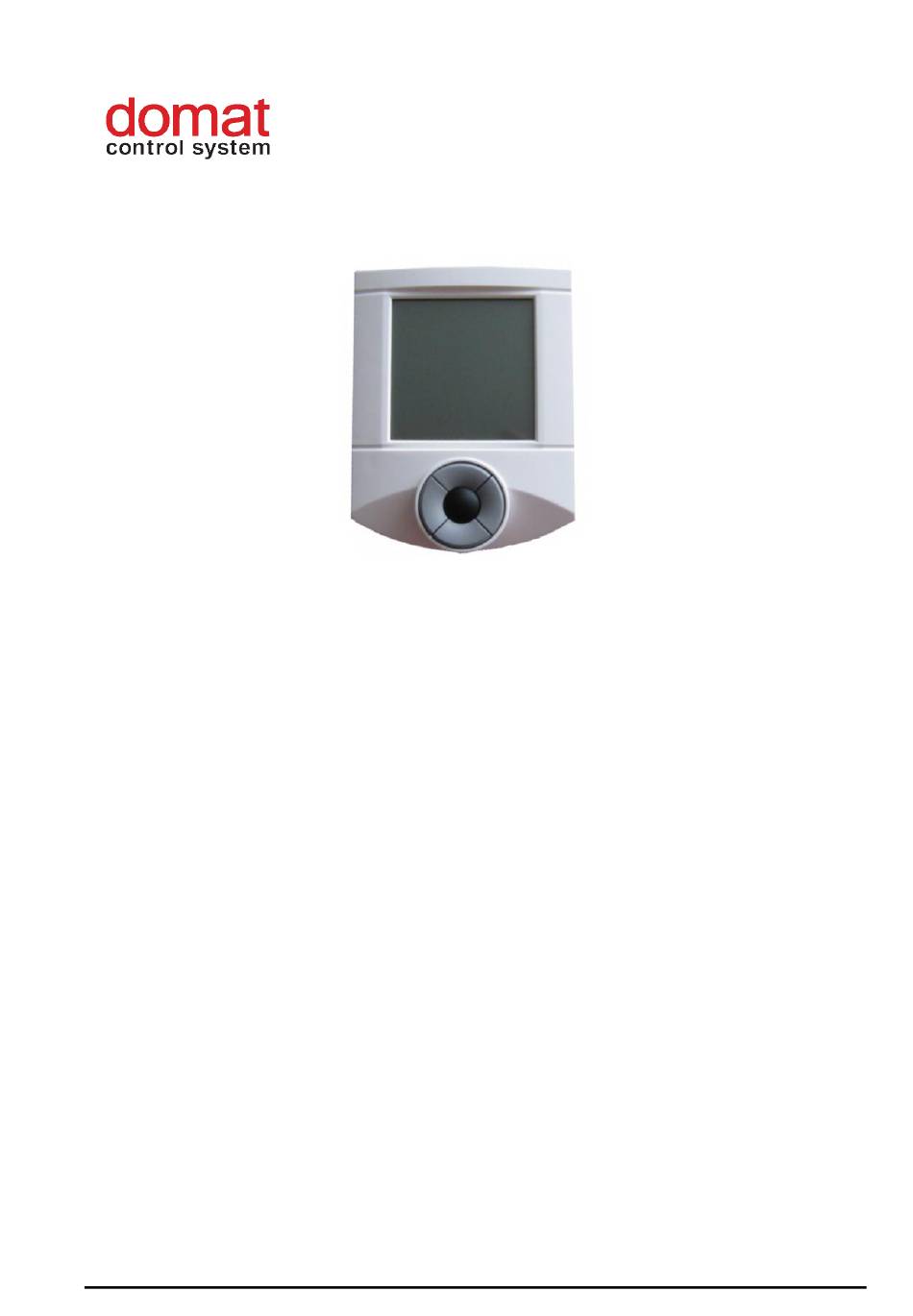

The UX... room unit range is a family of universal communicative human-machine
interface for control of HVAC units and plants, IRC controllers, and blinds. The
units communicate over Modbus RTU / RS485 and they can be used as open
system components with majority of building control system and controllers.
Application
Function
The units acquire temperature and optionally relative humidity in room, temperature
correction (left / right button), sunblind correction (up / down button) and required
operation status (central button or in the menu). In the configurable menu following
values can be set and displayed:
domat UX0..
Communicative room units
with sunblind control
▪
rooms with heating / air conditioning and sunblinds.
▪
systems with fancoils, convectors, floor and radiator heating, AHUs, air
conditioning units.
▪
control of boilers, DHW, heating circuits, building controls in general
▪
monitoring of room temperature and humidity
▪
with a SCADA system: temperature, humidity and status recording,
remote control.
–
temperature, actual temperature correction
–
humidity (actual value only at room units containing the humidity sensor)
–
time (only display at room units with RTC)
–
basic setpoint - day
–
basic setpoint - night
–
outside temperature for heating enable
–
DHW temperature
–
heating curve type (1...4)
–
operation mode (Residential with Day, Night, Time schedule, Off, or Hotel /
Office with Comfort, Standby, Party, Off)
–
fan stage (Auto, Off, St.1, St. 2, St. 3)
05/2018 Subject to technical changes.
1
Advertisement
Table of Contents
Related Manuals for domat UX0 Series
Summary of Contents for domat UX0 Series
- Page 1 (1...4) – operation mode (Residential with Day, Night, Time schedule, Off, or Hotel / Office with Comfort, Standby, Party, Off) – fan stage (Auto, Off, St.1, St. 2, St. 3) domat UX0.. 05/2018 Subject to technical changes.
- Page 2 RS485 - Modbus RTU, slave, selectable speed 1200 ... 115200 bps, N,8,1 Communication The interface is optically separated. Display LCD 60 x 60 mm, symbol set see above Terminals screw terminals for wires 0,14 – 1,5 mm domat UX0… 05/2018 Subject to technical changes.
- Page 3 1, baud rate to 9600. To init, proceed as follows: - connect the device over RS485 to a PC with domat.exe config tool - set INIT to ON - apply power (use only the connector...
- Page 4 Ø 50 mm. At the back of the bottom there is an aperture for cabling. The bottom should be installed and cabling connected first, and the upper part inserted after the construction works have been finished to prevent damage to the unit. domat UX0… 05/2018 Subject to technical changes.
- Page 5 The device contains a non-rechargeable battery which backups the real-time clock and part of the memory. After the device is not operable, please return it to the manufacturer or dispose of it in compliance with local regulations. domat UX0.. 05/2018 Subject to technical changes.
- Page 6 09/2016 — Changed the format and reference to the configuration software. 03/2017 — Added picture and description of the installation. Add link on the versions datasheet with other colours. 05/2018 – Change technical data. domat UX0… 05/2018 Subject to technical changes.
