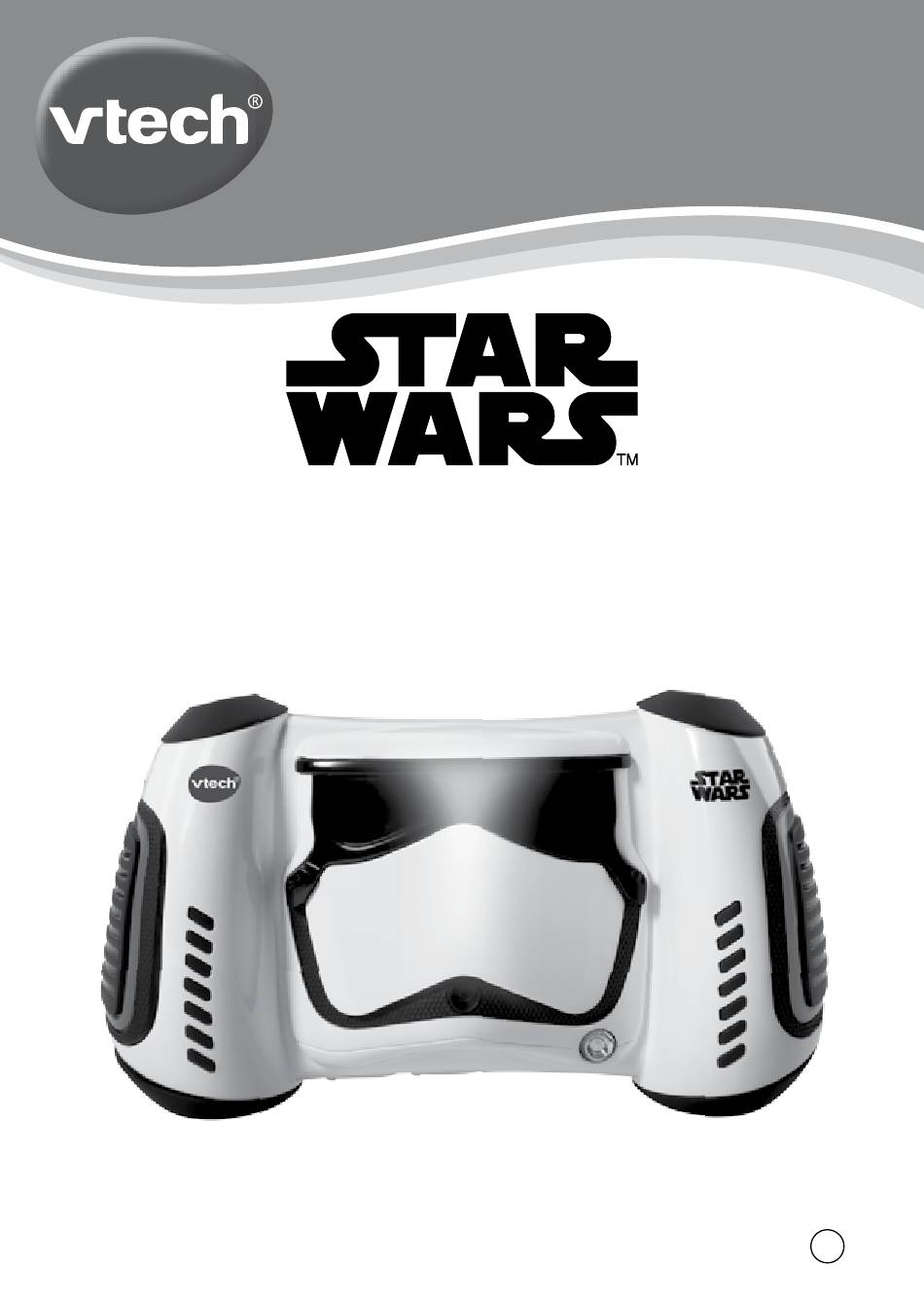

- Page 1 Parent’s Guide stOrMtrOOPer diGital CaMera © & Lucasfilm Ltd. 91-003366-000...
- Page 3 Photograph your own galaxy with the star Wars stormtrooper digital Camera from Vtech . Add star Wars borders and character ® stamps to your photos, record your voice with special effects, and blast off into hyperspace with 3 action-packed mini games.
-
Page 4: Included In This Package
On/OFF ButtOn Press this button to turn the camera On or OFF. HOMe ButtOn Press this button to go to the Main Menu or to go back to the previous submenu. CursOr ButtOns Press these buttons to make a selection. OK ButtOn Press this button to confirm a choice or action. -
Page 5: Product Specifications
nOte: Please keep this Parent’s Guide as it contains important information. the toy is only to be connected to Class ii equipment bearing the following symbol PrOduCt sPeCiFiCatiOns Display 1.8” TFT colour LCD Photo Resolution 2.0 MP (1600 x 1200) or 0.3 MP (640 x 480) Video Resolution 160 x 120 when using internal memory, 320 x 240 when using memory card... -
Page 6: Getting Started
stOraGe CaPaCitY FOr reFerenCe Memory Size 2.0 MP Photos 0.3 MP Photos Videos (minutes) Internal Memory 2 GB 3,900 20,900 4 GB 7,900 41,900 Memory card 8 GB 15,900 83,800 16 GB 31,800 167,700 note: This storage information is approximate; the actual amount depends on the shooting environment. -
Page 7: Battery Notice
BatterY nOtiCe • Use new alkaline batteries or fully charged NI-MH (Nickel Metal-hydride) rechargeable batteries for best performance. • Use only batteries of the same or equivalent type as recommended. • Do not mix different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (Ni-Cd, Ni-MH), or new and used batteries. • Do not use damaged batteries. • Insert batteries with the correct polarity. • Do not short-circuit the battery terminals. • Remove exhausted batteries from the toy. • Remove batteries during long periods of non-use. • Do not dispose of batteries in fire. • Do not charge non-rechargeable batteries. • Remove rechargeable batteries from the toy before charging (if removable). -
Page 8: Memory Card Installation
MeMOrY Card installatiOn • The stormtrooper digital Camera supports the following memory cards: microSD microSDHC microSD Logo and microSDHC Logo are trademarks of SD-3C, LCC. • Make sure the camera is turned OFF. • Locate the memory card slot on the bottom of the camera. • Pull up the rubber cover. • Insert the memory card (not included) as illustrated. Once the memory card is detected and ready for use, it will automatically be set as the default memory. -
Page 9: Battery Status
A USB port is usually marked with this symbol: • Two removable drives called “Vtech 5074” and “Vt sYsteM” will appear. “Vtech 5074” is for storage of your data, “Vt sYsteM” is for storage of system data and cannot be accessed. - Page 10 “100VteCH”. Drag and drop the files to a location on your computer for backup. tO BaCK uP VOiCe Files reCOrded BY tHe CaMera: • Locate and open the “VOiCe” folder on the removable drive “Vtech 5074”. • Drag and drop the recorded voice files to a location on your computer for backup.
-
Page 11: Home Menu
sYsteM reQuireMents FOr COMPuter COnneCtiOn: Microsoft Windows Vista , Windows 7, Windows 8 or Windows ® ® ® ® ® Operating System or Macintosh Computer with Mac OS X version 10.6, 10.7, 10.8, 10.9, 10.10, 10.11 or 10.12. aCtiVities HOMe Menu • Press the HOMe ButtOn to go to the Main Menu to select different activities. - Page 12 • Press the ZOOM ButtOn to use the digital zoom feature. • To view the video you’ve recorded, press the uP or dOWn CursOr ButtOn once to enter Playback mode. 3. GaMes Press the leFt or riGHt CursOr ButtOn to choose a game, then press the OK ButtOn to start playing.
-
Page 13: Voice Recorder
VieWinG a VideO File • Press the OK ButtOn to play the video. While playing the video, press the riGHt CursOr ButtOn once to fast forward at 2X speed; press this button again to change the speed to 4X. Press the OK ButtOn to return to 1X normal playing speed. -
Page 14: Photo Editor
• In this menu, press the CursOr ButtOns to select a different voice changing effect and press the OK ButtOn to apply the selected effect. To save the changed voice as another voice file, press the CursOr ButtOns to select the “Save As” icon and press the OK ButtOn to start the saving process. - Page 15 After you have chosen one of these options you will be asked to confirm your choice. Follow the instructions on the screen to confirm the action. note: If a memory card is being used, data stored in the internal memory will not be detected by the camera until the microSD card is removed.
-
Page 16: Troubleshooting
trOuBlesHOOtinG Go through this section if you experience difficulty in operating the stormtrooper digital Camera. PrOBleM sOlutiOn Camera has 1. Let the camera sit for a few minutes without batteries, then replace the batteries. stopped working 2. Turn the unit On. The unit should now be ready for use. -
Page 17: Important Note
01235 546810 (from UK) and +44 1235 546810 (outside UK), and a service representative will be happy to help you. iMPOrtant nOte: Creating and developing Vtech ® products is accompanied by a responsibility that we take very seriously. We make every effort to ensure the accuracy of the information, which forms the value of our products. - Page 18 HOW tO taKe a GOOd PHOtO Are you ready to have fun taking photos? Here are some tips on how to get the best results from your new camera. steP One First, slide the wrist strap over your hand to help you hold your new camera properly.
-
Page 19: Frequently Asked Questions
Again, please check with your PC manufacturer. Question 2: What is the ISO value (light sensitivity) of the Vtech stormtrooper ® digital Camera? - Page 20 Question 5: Can you delete a group of pictures at one time, or do they have to be deleted one at a time on the camera? answer: If you connect the Vtech stormtrooper digital Camera to your ® computer and access it or the memory card as an external drive, you can select multiple pictures to delete at any one time.
- Page 21 The picture transfer operation does not start by itself. After you have connected the USB cable to your PC and the drive appears ready, you can open the drive, look under the folder DCIM and you should find the images you captured with the Vtech stormtrooper digital Camera. Moreover, ®...
- Page 22 Wrist straP attaCHMent instruCtiOns step 1: Locate the thread loop on the end of the strap. Insert it into the groove behind the bar and then push it through. step 2: Feed the end of the strap up through the loop and pull it all the way through.
- Page 24 Visit our website for more information about our products, downloads, resources and more. www.vtech.co.uk TM & © 2017 VTech Holdings Limited. All rights reserved Printed in China © & Lucasfilm Ltd. 91-003366-000...
