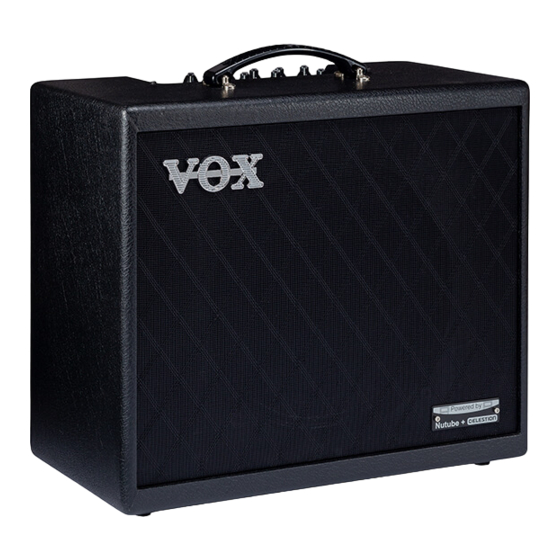

VOX Cambridge50
MODELING GUITAR AMPLIFIER
Vox Amplification Ltd.
1 Harrison Close, Knowlhill, Milton Keynes, MK5 8PA. UK
© 2019 VOX AMPLIFICATION LTD.
Thank you for purchasing the VOX Cambridge50 modeling guitar amplifier. To help you get the most out of your new instrument,
please read this manual carefully.
Merci d'avoir choisi l'amplificateur de guitare à modélisation VOX Cambridge50 de VOX. Afin de pouvoir exploiter au mieux toutes
les possibilités offertes par l'instrument, veuillez lire attentivement ce manuel.
Vielen Dank, das Sie sich für ein VOX Cambridge50 Modeling-Gitarrenverstärkers von VOX entschieden haben. Bitte lesen Sie
sich diese Anleitung vollständig durch, um bei der Bedienung alles richtig zu machen.
Gracias por comprar el amplificador de modelado de guitarra VOX Cambridge50. Por favor, lea este manual atentamente y guárdelo
para futuras consultas.
このたびは、 モデリング・ギター・アンプ VOX Cambridge50 をお買い上げいただきまして、 まことにありがとうございます。 本製品を末永くご愛用いただ
くためにも、 取扱説明書をよくお読みになって正しい方法でご使用ください。
Precautions
En
Location
Using the unit in the following locations can result in a malfunction.
• In direct sunlight
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
• Locations of excessive vibration
• Close to magnetic fields
Power supply
Please connect the designated AC adapter to an AC outlet of the correct voltage.
Do not connect it to an AC outlet of voltage other than that for which your unit
is intended.
Interference with other electrical devices
Radios and televisions placed nearby may experience reception interference. Op-
erate this unit at a suitable distance from radios and televisions.
Handling
To avoid breakage, do not apply excessive force to the switches or controls.
Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid
cleaners such as benzene or thinner, or cleaning compounds or flammable polishes.
Keep this manual
After reading this manual, please keep it for later reference.
Keeping foreign matter out of your equipment
Never set any container with liquid in it near this equipment. If liquid gets into the
equipment, it could cause a breakdown, fire, or electrical shock. Be careful not to
let metal objects get into the equipment. If something does slip into the equipment,
unplug the AC adapter from the wall outlet. Then contact your nearest VOX dealer
or the store where the equipment was purchased.
THE FCC REGULATION WARNING (for USA)
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
If items such as cables are included with this equipment, you must use those
included items.
Unauthorized changes or modification to this system can void the user's authority
to operate this equipment.
Owner's Manual
En
Manuel d'utilisation
Fr
Bedienungsanleitung
De
Manual del usuario
Es
取扱説明書 ( → p.6, p.15)
Ja
Published 09/2019 Printed in Vietnam
Notice regarding disposal (EU only)
When this "crossed-out wheeled bin" symbol is displayed on the product,
owner's manual, battery, or battery package, it signifies that when you wish
to dispose of this product, manual, package or battery you must do so in
an approved manner. Do not discard this product, manual, package or
battery along with ordinary household waste. Disposing in the correct
manner will prevent harm to human health and potential damage to the
environment. Since the correct method of disposal will depend on the ap-
plicable laws and regulations in your locality, please contact your local
administrative body for details. If the battery contains heavy metals in
excess of the regulated amount, a chemical symbol is displayed below the "crossed-
out wheeled bin" symbol on the battery or battery package.
SUPPLIER'S DECLARATION OF CONFORMITY (for USA)
Responsible Party : KORG USA INC.
Address : 316 SOUTH SERVICE ROAD, MELVILLE, NY
Telephone : 1-631-390-6500
Equipment Type : MODELING GUITAR AMPLIFIER
Model : Cambridge50
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTICE TO CONSUMERS
This product has been manufactured according to strict specifications and
voltage requirements that are applicable in the country in which it is intended
that this product should be used. If you have purchased this product via the
internet, through mail order, and/or via a telephone sale, you must verify that
this product is intended to be used in the country in which you reside.
WARNING: Use of this product in any country other than that for which it
is intended could be dangerous and could invalidate the manufacturer's or
distributor's warranty. Please also retain your receipt as proof of purchase
otherwise your product may be disqualified from the manufacturer's or
distributor's warranty.
* Apple, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
* All product names and company names are the trademarks or registered trademarks of their respective
owners.
Get a FREE JamVOX III
下記のサイ トからJamVOX III をダウンロードできます。
Please visit www.jamvox-online.com/downloads/
to download and install your FREE copy of JamVOX III.
JamVOX III Product Code
1
( → p.4, p.7)
( → p.5, p.9)
( → s.5, s.11)
( → p.6, p.13)
EFGSJ 1
www.voxamps.com
