Tion Breezer 3S User Manual

Compact ventilation unit
Hide thumbs Also See for Breezer 3S:
Table of Contents

Advertisement

Quick Links

User Manual
Compact ventilation unit
Tion Breezer 3S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Breezer 3S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tion Breezer 3S

Summary of Contents for Tion Breezer 3S

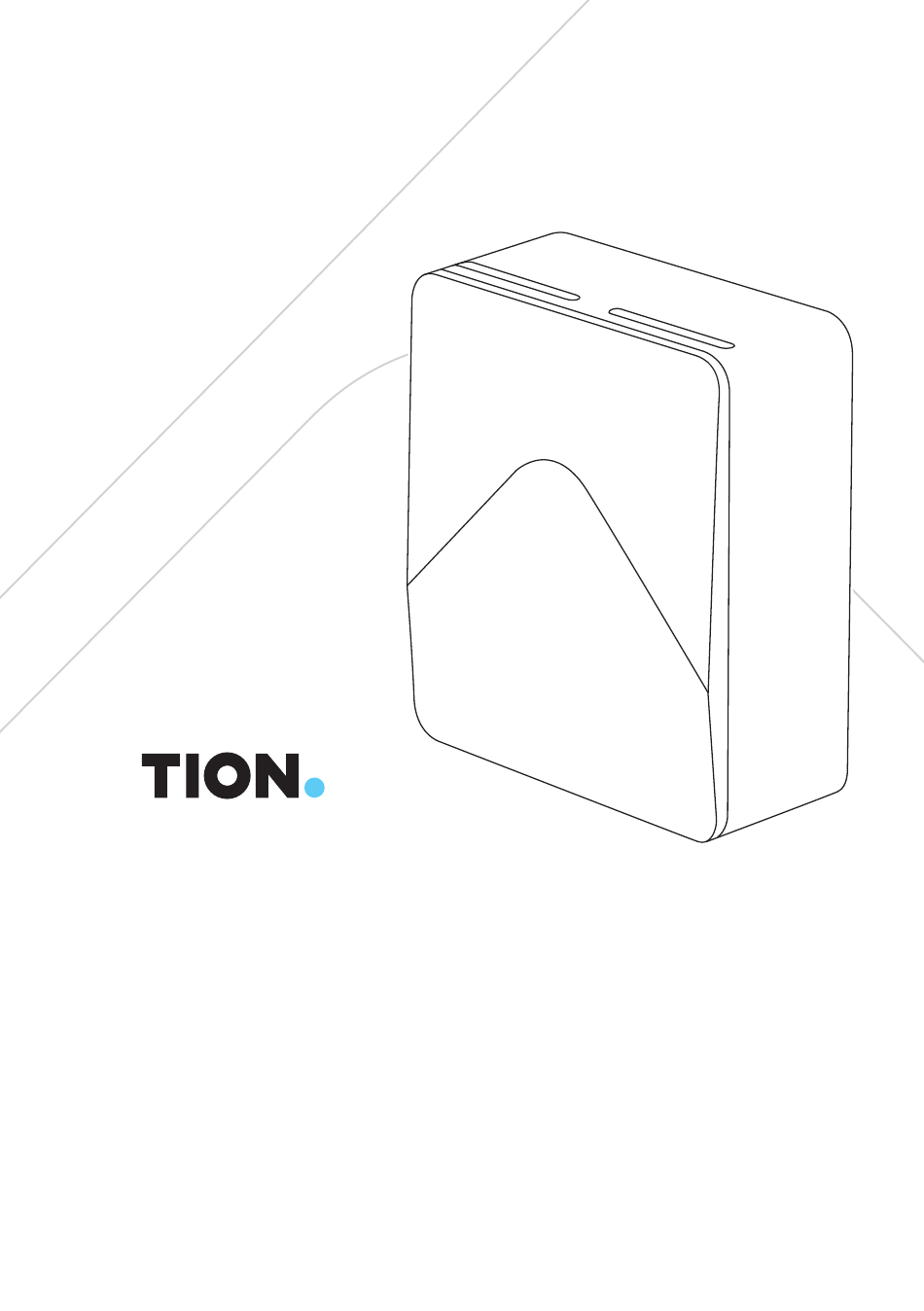

  • Page 1 User Manual Compact ventilation unit Tion Breezer 3S...

  • Page 3: Table Of Contents

    Table of Contents 1. GENERAL ........................2. PACKING LIST ......................3. SAFETY REQUIREMENT ..................4. TECHNICAL PARAMETERS ..................5. SCHEMATIC DIAGRAM AND OPERATING PRINCIPLE ........ 6. GETTING STARTED ....................22 7. MAINTENANCE ......................25 8. STORAGE, TRANSPORTATION, DISPOSAL ............27 9.

  • Page 4: General

    Dear Customer! Thank you for your purchase of the Tion Breezer 3S compact ventilation unit. 1. GENERAL The Compact Ventilation Unit Tion Breezer 3S ("the device" in what follows) is designed for active supply of considerable volumes of outside air into the building. This involves the following: •...

  • Page 5: Packing List

    2. PACKING LIST Package option Tion Tion Tion Delivery set Breezer Breezer Breezer Special Lite Construction Coarse filter of Class G4 High-efficiency Е11 (H11) filter Adsorption catalytic filter AK-XL – – Heater – Remote control User manualRC bracket AAA batteries, 2 pcs.

  • Page 6: Safety Requirement

    Tion Breezer 3S Lite or Special configurations should be outfitted with an additional AK-XL filter. The Tion Breezer 3S Lite can be upgraded to Tion Breezer 3S configuration upon the user’s request. Please contact any authorized Service Center of the Manufacturer to install optional heater system and AK-XL filter (at additional cost).

  • Page 7: Technical Parameters

    4. TECHNICAL PARAMETERS Tion Breezer Tion Breezer Tion Breezer Package option 3S Special 3S Lite Maximum power consumption, W 1450 1450 Permissible outdoor temperature -40 ... +50 -40 ... +50 0 ... +50 range, °С 30/45/60/75/ 30/50/70/90/ 30/50/70/90/ Air flow rate*, m³/hr...

  • Page 8: Schematic Diagram And Operating Principle

    5. SCHEMATIC DIAGRAM AND OPERATING PRINCIPLE 5.1. Construction The layout of the device with the service panel removed (Tion Breezer 3S) is shown below. Figure 1. Device layout 1. Fan unit 5. Coarse Class G4 filter 2. Heater 6. Air flap 3.

  • Page 9: Operating Principle

    5.2. Operating principle The device is attached to the wall with a drilled air duct leading to the street. The air from outdoors enters the device through the air duct. The air duct is protected by a thermal insulator, and the slope of the channel prevents rain water from penetrating into the device.
  • Page 10 The heater automatically goes off in recirculation mode. The mixed mode of Tion Breezer 3S ensures air intake from indoors and from outdoors in equal ratios. The air is cleaned by a set of filters and, if necessary, can be heated to a preset temperature.

  • Page 11: Remote Control

    No. Operating modeIndication IndicationOperating mode The device is connected to power Glowing yellow mains and is in Standby mode Normal functioning without Glowing light-green connection to MagicAir system. Normal functioning with MagicAir Glowing dark-green system Automatic functioning with MagicAir Glowing blue system Blinking blue during connection Connecting to MagicAir system...
  • Page 12 "NPAIr" is displayed on RC screen. If "NPAIr" is displayed, repeat the connection, switching on RC with its any button. If "nocon" is displayed, repeat the connection procedure, as described above. If reconnection fails again, contact the Service Center. Figure 3. Remote control Tion Breezer 3S...
  • Page 13 Pos. in Fig.3 Notation Timer is on or is adjusted right now Days before filter replacement. Heater is off / Heater is on Inlet temperature Outlet temperature Fan speed (1, 2, 3, 4, 5, 6) Automated control with MagicAir One arrow ( ) – outside air supply mode, three arrows ( ) – recirculation mode, four arrows ( ) –...
  • Page 14 Six air flow rate steps are provided. The air flow rate is adjusted manually (using MagicAir software or remote control) or automatically with MagicAir system (section 5.4). The "turbo" mode is used for enhanced, rapid aeration in a room after a longer period of not being used by people. Tion Breezer 3S...
  • Page 15 Pressing [FAN DOWN] or [FAN UP] on the Remote Control decreases/increases the air flow, if no other settings are being adjusted at the same time (section 5.3.6). The device may automatically decrease the fan speed to ensure proper air heating up to the target temperature.
  • Page 16 Heater coil status (ON/OFF) Clock setting (24 hour format) Timer adjustment If the appliance is under control of the MagicAir system, timers are automatically disabled Start-up and shutdown time adjustment for Timer [ON] mode Days before filter replacement. Tion Breezer 3S...
  • Page 17 To save settings go to the next parameter pressing [FAN UP], [FAN DOWN] buttons or press [MENU] to exit the Setting mode. A single beep will sound, confirming the changes on RC have been saved and updated. All parameters keep the configured values upon switching to and from Standby mode, and in case of the power supply outage.
  • Page 18 Target temperature adjustment range: from 0°С to +30°С. The new target temperature is attained in 1-5 minutes. Factory setting: +20°C. Using the [TEMP DOWN] or [TEMP UP] buttons on Figure 5. "Heater off" the RC, select the required target heating temperature. indication Tion Breezer 3S...
  • Page 19 * Except for Tion Breezer 3S Lite configuration. ** If you are using the Tion Breezer 3S Lite version, then turn the device off in case of condensate or frost formation. It is recommended to resume operation only after the temperature of the device warms up to room temperature and traces of frosting disappear.
  • Page 20 (00 h). When switched on by timer, the device will be engaged with the same settings as at the moment of timer activation. If the appliance is controlled by MagicAir (p.5.4), all previous timer setting are disabled. Tion Breezer 3S...
  • Page 21 5.3.12. Configuration of filter replacement alert schedule The user adjustable filter replacement alert function helps keep track of proper filter maintenance. The filter replacement alert message can be set in manual mode (with MagicAir software or from the remote control). After the alert is set, the countdown function is activated from the user defined value down to zero.
  • Page 22 5.4. Functioning with MagicAir 5.4.1. Device connection When the "Tion Breezer 3S" compact ventilation unit is used with the MagicAir system: • MagicAir base station can independently control the intensity of air flow according to the СО2 level in the room;...
  • Page 23 The automatic mode can be switched on by the designated mobile application MagicAir and through web interface on the site magicair.tion.ru by moving a slider. In automatic mode sound indications and timer are disabled. The automatic control sign is shown on the RC display.

  • Page 24: Getting Started

    2. Take out from the casing all filters for the present version. 3. Unwrap every new filter from the protective plastic film. 4. Install each filter into the device. 5. Reinstall the maintenance panel. Figure 6. Dismantling the maintenance panel Tion Breezer 3S...
  • Page 25 PLEASE NOTE: • If the device is turned on with plastic film on the filters, this may cause damage and render the warranty void. • When new, the device may have the characteristic odor of plasticware. Such an odor most likely comes from the shipping package. Take out filters and turn on the device at 5th or 6th speed for several hours.

  • Page 26: Power Supply

    • the plug must meet the standard СЕЕ 7/7 (Fig.7), • the connector must correspond to IEC 320 С13 female (Fig.7), • cord cross section must be at least 1 mm². Figure 7. Connector and plug of the power cord Tion Breezer 3S...

  • Page 27: Maintenance

    6.4.2. Concealed wiring With a concealed (flush) wiring connection, the power-supply line is laid inside the walls or structural units of the building. The electrical connection must be performed in accordance with the technical requirements of your country. After mounting connect the device to the electrical network. PLEASE NOTE: •...

  • Page 28: Filter Replacement

    LCD display (Fig. 8). In case of "ЕС-01", "EC-02" or "ЕС03" indications, please make sure that the outdoor air temperature does not exceed the value indicated in specifications (section 4). Figure 8. Example of error indication Tion Breezer 3S...

  • Page 29: Storage, Transportation, Disposal

    If the outer air temperature conforms with the specified range, please contact the service center by phone, as indicated on the Warranty Card. If the temperature is beyond the specified range, please wait until it reaches the required level (warms up/cools down), and switch on the device.

  • Page 30: Warranty

    "Tion Smart Microclimate" JSC, Tion Company Group, would like to thank you for your choice. The planned service life of the Tion Smart Microclimate JSC device is 5 years, subject to the installation and operation guidelines. The warranty period is 2 years* from the purchase date, provided that operating instructions are properly observed.
  • Page 31 To claim the fulfillment of warranty obligations for the device please contact the device Vendor. Tion Smart Microclimate JSC hereby confirms its obligations to satisfy the warranty conditions imposed by current legislation, in the case of detected device defects due to Manufacturer's fault.

  • Page 32: Acceptance Certificate

    ACCEPTANCE CERTIFICATE Compact ventilation unit Tion Breezer 3S corresponds to Technical Specifications TU 3646-006-66248641-2017 and is acceptable for operation. Manufacturing date __________________________________________________________ QC stamp Version 1.4.1.S Tion Breezer 3S...
  • Page 33 FOR NOTES...
  • Page 34 FOR NOTES Tion Breezer 3S...
