MAGNETIC BREAKERLESS
APPLICATION: YLM and YTM Series Distributors; 50 Series Mechanical Advance Distributors; 57 Series
Vacuum Advance Distributors; 82 Series Mechanical Advance Billet Competition Distributors; COMP
9000
87 Series Vacuum Advance Distributors; COMP 9000
®
tors; Magnetic Breakerless Ignition Conversions.
INSTALLATION PROCEDURE
Step 1
Step 2
YLM and YTM Series, and 50 Series
Distributors
Series 57 and 87 Distributors

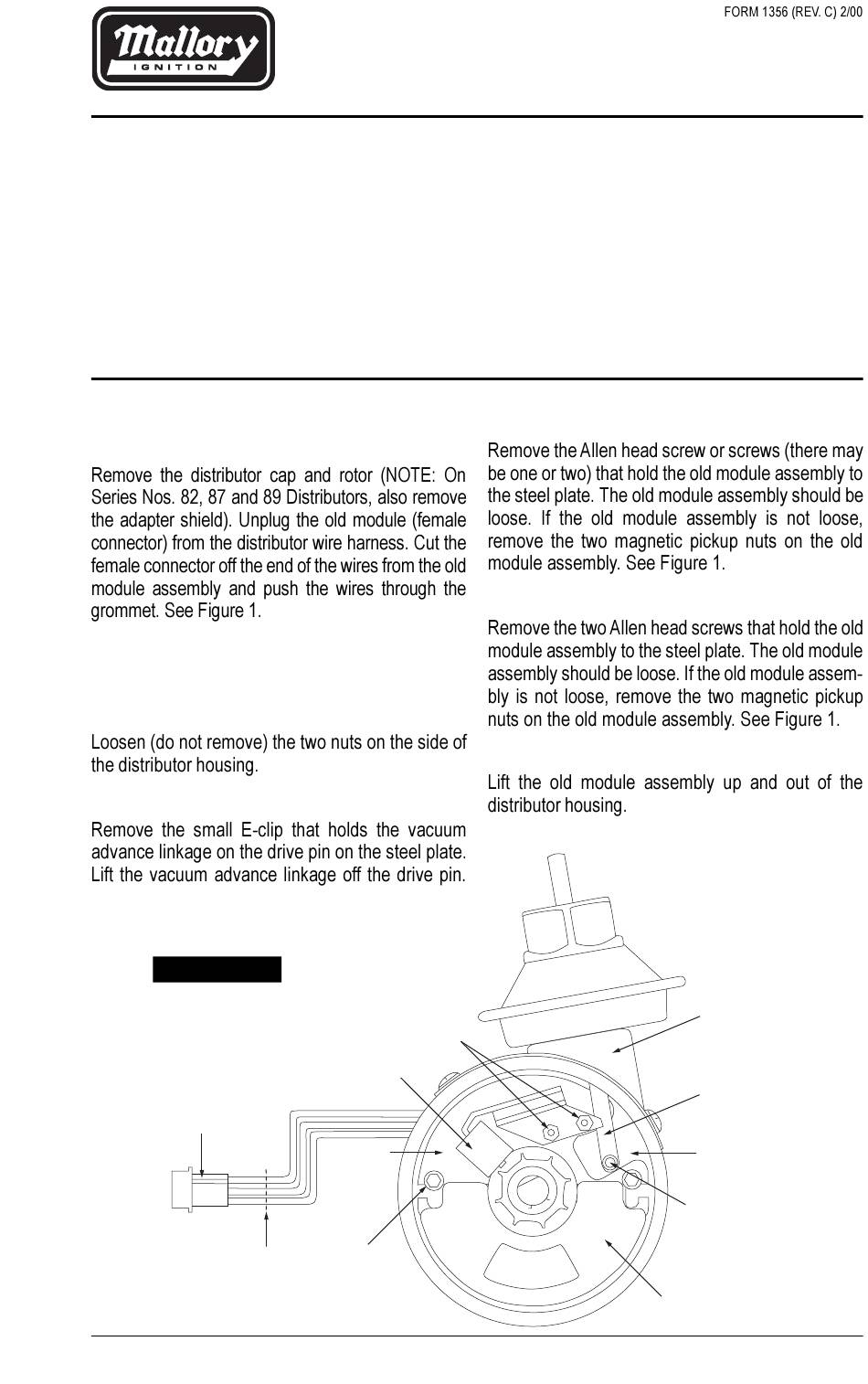

FIGURE 1
CONNECTOR
CUT HERE TO
REMOVE OLD
MODULE
INSTALLATION INSTRUCTIONS
IGNITION MODULE
PART NO. 609
NUTS (2)
FOR PICK-UP
PICK-UP
ALUMINUM
MOUNTING
PLATE
ALLEN HEAD
SCREWS (2)
89 Series Mechanical Advance Distribu-
®
Series 82 and 89 Distributors
Step 3
VACUUM ADVANCE
CANNISTER
VACUUM ADVANCE
LINKAGE
STEEL PLATE
DRIVE PIN
(WITH E-CLIP)
FOR VACUUM
ADVANCE
MODULE
0
Advertisement
Table of Contents
Related Manuals for Mallory 609
Summary of Contents for Mallory 609
-
Page 1: Installation Procedure
INSTALLATION INSTRUCTIONS ® MAGNETIC BREAKERLESS IGNITION MODULE PART NO. 609 APPLICATION: YLM and YTM Series Distributors; 50 Series Mechanical Advance Distributors; 57 Series Vacuum Advance Distributors; 82 Series Mechanical Advance Billet Competition Distributors; COMP 9000 87 Series Vacuum Advance Distributors; COMP 9000 89 Series Mechanical Advance Distribu- ®... - Page 2 Step 4 Step 6 NOTE (57, 82, 87 and 89 Series Distributors): If you had to remove the two magnetic pickup nuts that hold the pickup to the old module assembly (Step 2), remove the two magnetic pickup nuts on the new module assembly and Step 7 press the two studs out of the new module assembly.
- Page 3 REVIEW WIRING DISTRIBUTOR WIRE PROCEDURE HARNESS IMPORTANT: NOTE: If your vehicle is equipped with a HYFIRE Electronic Ignition Control or similar ® Example: aftermarket ignition control, use ignition ballast resistors along with wiring procedures included with your ignition control. Exception: ®...
- Page 4 (carbon COIL core, spiral core, or radio suppression core) spark plug wire. ® MALLORY IS A DIVISION OF THE MR. GASKET PERFORMANCE GROUP FORM 1356 550 MALLORY WAY, CARSON CITY, NV 89701 REV. C (2 /00) (775) 882-6600 FAX (775) 887-4326 MADE IN U.S.A.
