ELECTRONIC IGNITION CONTROL
1
HYFIRE
VIA Ignition Control
®
4
#10 Sheet Metal Screws
2
Wire Ties
2
Ring Terminals, Insulated
1
1-amp/100 volt Diode
2
1/4" Tab Terminals
®
®
®
MALLORY TECHNICAL SUPPORT
INSTALLATION INSTRUCTIONS
HYFIRE
®
PART NO. 6852M
®
®
®
®
(775) 882-6600
VI
SERIES
A
5
1/4" Male Disconnects
5
1/4" Female Disconnects
1
Rubber Grommet
2
Cable Clamps
1
Magnetic Pickup Extension
tech@mrgasket.com
FORM 1522 (REV. B) 03/01
®
®
®
®
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mallory 6852M
Summary of Contents for Mallory 6852M

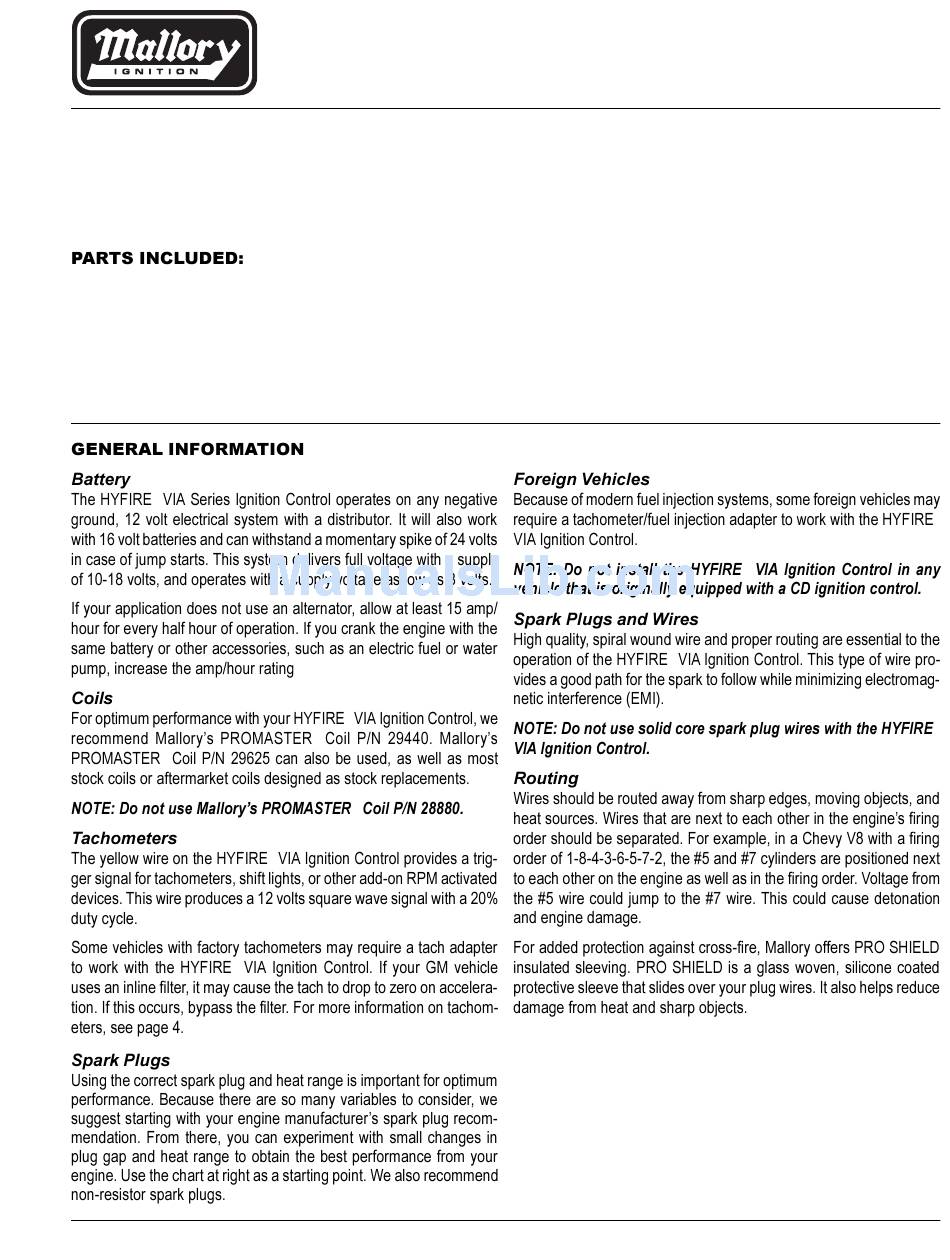

- Page 1 FORM 1522 (REV. B) 03/01 INSTALLATION INSTRUCTIONS ® HYFIRE SERIES ® ELECTRONIC IGNITION CONTROL PART NO. 6852M HYFIRE VIA Ignition Control 1/4" Male Disconnects ® #10 Sheet Metal Screws 1/4" Female Disconnects Wire Ties Rubber Grommet Ring Terminals, Insulated Cable Clamps...
- Page 2 ® ® ® ® ® ® ® ® ® FIGURE 1 DIAGNOSTIC ® ® LABELS FOR "CYLINDER SELECT" ON CIRCUIT BOARD ® MALLORY IGNITION 550 MALLORY WAY, CARSON CITY, NV 89701...
- Page 3 COMMON COLORS FOR MAG PICKUP WIRES Distributor Mag + Mag – Mallory Crank Trigger Purple Green Mallory Billet Competition Distributor, Series Nos. 81 and 84 Orange Purple Heavy Red Mallory COMP 9000 Series Nos. 96-99 Orange Purple ® Mallory Harness P/N 29040...
- Page 4 IGNITION SWITCH FROM POINTS OR FIGURE 5 AMPLIFIER SPLICE HERE SMALL RED DELCOTRON FROM HYFIRE® VIA ALTERNATOR WHITE WIRE FROM TO CHARGING LIGHT HYFIRE® VIA 1A-100V DIODE CHRYSLER DUAL BALLAST RESISTOR MALLORY IGNITION 550 MALLORY WAY, CARSON CITY, NV 89701...
-
Page 5: Jumper Wire
® ® ® ® FIGURE 6 ® WHITE WIRE ® TO GROUND FIGURE 7 ® GREEN JUMPER WIRE VIOLET MALLORY TECHNICAL SUPPORT (775) 882-6600 tech@mrgasket.com... - Page 6 MICROPROCESSOR CONTROLLED CD IGNITION SYSTEM PURPLE NOT USED GREEN RED (LARGE 14 GA) TO BATTERY POS (+) BLACK (LARGE 14 GA) TO BATTERY NEG (–) YELLOW TO TACHOMETER ORANGE COIL – BLACK (SMALLER) MALLORY IGNITION 550 MALLORY WAY, CARSON CITY, NV 89701...
- Page 7 TO BATTERY NEG (–) PART No. 6852 ® ® MICROPROCESSOR CONTROLLED CD IGNITION SYSTEM WHITE NOT USED YELLOW TO TACHOMETER ORANGE COIL – BLACK (SMALLER) ® PART OF MALLORY HEI KIT P/N 29008 (NOT INCLUDED) MALLORY TECHNICAL SUPPORT (775) 882-6600 tech@mrgasket.com...
- Page 8 PURPLE TO TACH YELLOW TO TACHOMETER TO ENGINE C– GRD B+ GROUND TACH BLACK (SMALL 18 GA TO C–) ORANGE (TO B+) PART OF MALLORY HEI KIT P/N 29008 (NOT INCLUDED) MALLORY IGNITION 550 MALLORY WAY, CARSON CITY, NV 89701...
-
Page 9: Magnetic Pick-Up
NOT USED (TAPE END) JUMPER PART No. 6852 WHITE JUMPER WHITE ® MICROPROCESSOR CONTROLLED CD IGNITION SYSTEM RED (SMALL 18 GA) PART OF MALLORY HEI KIT P/N 29008 (NOT INCLUDED) RED (LARGE 14 GA) BLACK ORANGE TO BATTERY POS (+) (SMALL ®... - Page 10 GREEN BLACK (LARGE 14 GA) TO BATTERY NEG (–) FACTORY HARNESS PLUG RED (LARGE 14 GA) (ORIGINALLY CONNECTED TO BATTERY POS (+) TO THE COIL) PURPLE MAGNETIC PICK-UP (NOT USED) GREEN MALLORY IGNITION 550 MALLORY WAY, CARSON CITY, NV 89701...
- Page 11 YELLOW TO TACHOMETER RED (LARGE 14 GA) TO BATTERY POS (+) BLACK (LARGE 14 GA) TO BATTERY NEG (–) GREEN MAGNETIC PICKUP NOT USED PURPLE GREEN/ORANGE ORANGE BLACK/GRAY OR GRAY BLACK (SMALL 18 GA) MALLORY TECHNICAL SUPPORT (775) 882-6600 tech@mrgasket.com...
- Page 12 ORIGINAL COIL (+) WIRE AMPLIFIER SPLICE HERE RED (SMALL 18 GA) TO IGNITION SWITCH ORIGINAL COIL (–) TERMINAL FROM (+) ORANGE AMPLIFIER SPLICE HERE (–) BLACK (SMALL 18 GA) WHITE PART No. 6852 ® ® MICROPROCESSOR CONTROLLED CD IGNITION SYSTEM MICROPROCESSOR CONTROLLED CD IGNITION SYSTEM YELLOW TO TACHOMETER...
