Spectroline COBRA CAM Operator's Manual

Uv/white light videoscope

Download this manual

OPERATOR'S MANUAL

UV/White Light Videoscope

U.S. Patent No. 6,491,408

Table of Contents

Need help?

Do you have a question about the COBRA CAM and is the answer not in the manual?

Page 1 OPERATOR’S MANUAL UV/White Light Videoscope U.S. Patent No. 6,491,408...
Page 2: Safety Information
• Never use this equipment in any manner not specified in these instructions because the protection provided by the equipment may be impaired. • The COBRA CAM is not approved for use in hazardous atmospheres. Do not attempt to use it in areas requiring explosion-proof lighting.

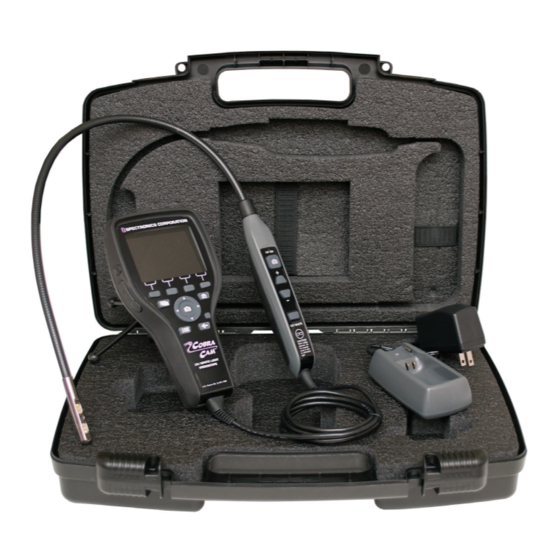

Page 3 Video Display Unit (VDU)—127213 Camera Wand and Controller—127215 10. Low Battery Indicator 11. Video Screen 1. Shock-Resistant 320 x 240 pixels Body TFT LCD, 24 bit RGB 2. Power Button 12. SD Card Slot 21 in Flexible Camera Lens Camera Cable UV and White 3.
Page 4: Operating Instructions
6. Once the inspection area is found, you may press the “Image Capture” • The COBRA CAM can operate for approximately one hour after a full charge. button (5 on the VDU or 22 on the wand handle), to capture the image.
Page 5: Specifications
• If the unit is dropped, check for cracks, or other conditions that may affect • Store the COBRA CAM indoors in its case. Avoid areas that are subject to the unit’s operation. If damaged, have it serviced before using.
Page 6 5/11 AM11020-2 PRINTED IN U.S.A.
