Page 1: Operating Instructions

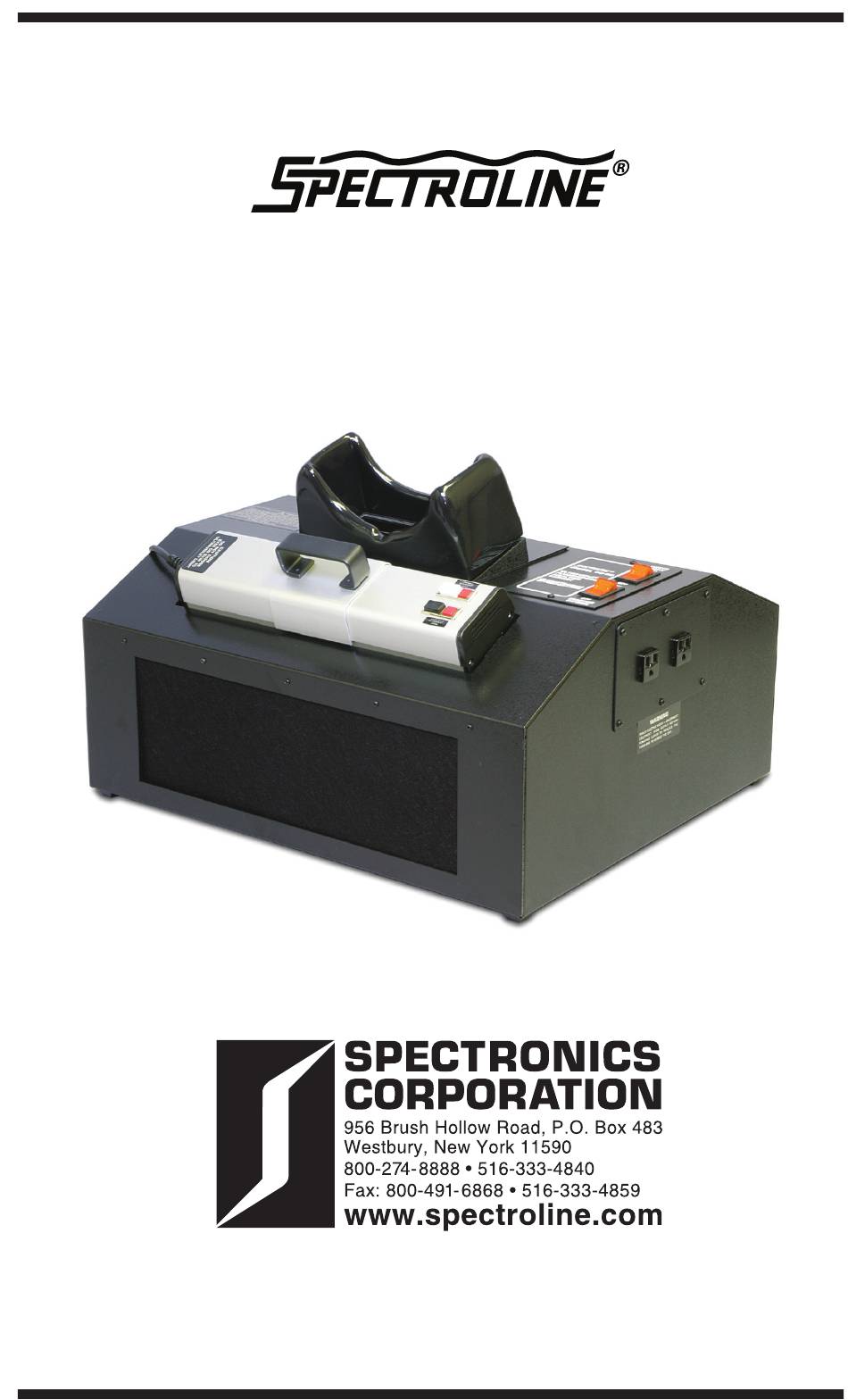

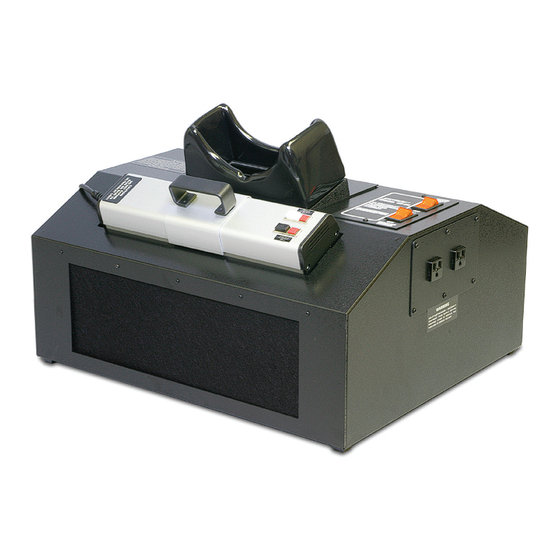

OPERATING INSTRUCTIONS CC-80 and CC-81 Fluorescence Analysis Cabinets CC-81 Manual No. AM11028 Printed in U.S.A. Issued: September 2011... - Page 2 CC-81 is additionally supplied with the Spectroline ENF-280C 365/254nm 8-watt UV lamp. For a list of E-Series lamp models that work with either the CC-80 or CC-81 cabinets, please visit www.spectroline.com. Choose from the available 8-watt lamps listed under "...
- Page 3 5. Port Cover 6. Lamp Port (under port cover) CC-80 8. Lamp Outlets 7. Curtain UNPACKING AND INSPECTION 1. Carefully unpack and inspect the cabinet for possible damage in shipment. If any damage is noted, immediately notify the carrier and supplier before attempting to use the equipment.
- Page 4 USING WITH A TRANSILLUMINATOR Place the Spectroline UV transilluminator on a solid, level surface, filter side up. Remove the bottom panel and reattach the rubber screw holders to the bottom of the cabinet. These will prevent scratching of the transilluminator surface.
- Page 5 Take care not to allow any liquids to leak into electrical components. Periodically clean the UV-absorbing viewing window with a glass cleaner and soft cloth. ENVIRONMENTAL SPECIFICATIONS The CC-80 and CC-81 cabinets are designed to be safe under the following conditions: • Indoor use; • Altitude up to 2,000 m (6,562 ft.);...
-
Page 6: Electrical Specifications
Medium Wave (UV-B) 312nm Short Wave (UV-C) 254nm WARRANTY The warranty policy for the CC-80 and CC-81 cabinets is provided on the Certificate of Limited Warranty enclosed separately with each unit. NOTE: For assistance of any kind, including help with a unit under warranty, contact the Customer Service Department at Spectronics Corporation. - Page 7 REPLACEMENT PARTS Description Product No. Bulb, 25W—White Light BLE-1T261 Eyepiece, UV-Absorbing Window Assembly Caution (refer to accompanying documents) LAMP CONTAINS MERCURY Manage in Accord with Disposal Laws See: www.lamprecycle.org...
