IV Pole
The upper right corner of the screen displays the current setting for the IV Pole (displayed numerically at the top
of the test tube). You can use the up and down arrows to change the height, and the IV Pole will automatically
move up and down to match the setting.
The On/Off button controls the continuous irrigation function, by opening or closing the irrigation pinch valve
in the fluidics system. If the irrigation control is turned off in anterior mode, the function will still be managed
by the Foot Control—when the footpedal enters Region 1, irrigation will commence.
Selecting the fill button opens the pinch valves in the fluidics system for 20 seconds. This function is useful for
filling surgical beakers without using BSS. A green ring around the button shows indicates that the fill system is
currently on. You can select the fill button to toggle to the off state.
The automatic "Fill" function is user programmable with a fill time range from 20s to 120s. To program the fill
time, perform the following steps
• Select the
More Screen
• Select the "Infusion" tab
• Change the fill time, "Fill (sec)" to the desired value
• Select "Save" to save changes.

Air Pressure

When using Air Forced Infusion, the air pump will turn ON after the cassette vacuum check is completed.
The upper right corner of the screen displays the actual air pressure. The actual air pressure may not reach the
maximum setting if the air tubing is not connected to the air output connector. The air pump can only be turned
off using the More Settings Screen.
When the infusion type is Air Forced Infusion, the infusion pressure unit of measurement display can be toggled
between cmH2O and mmHg. Pressing the display unit button will change the displayed unit of measure.
110017276EN Rev. B

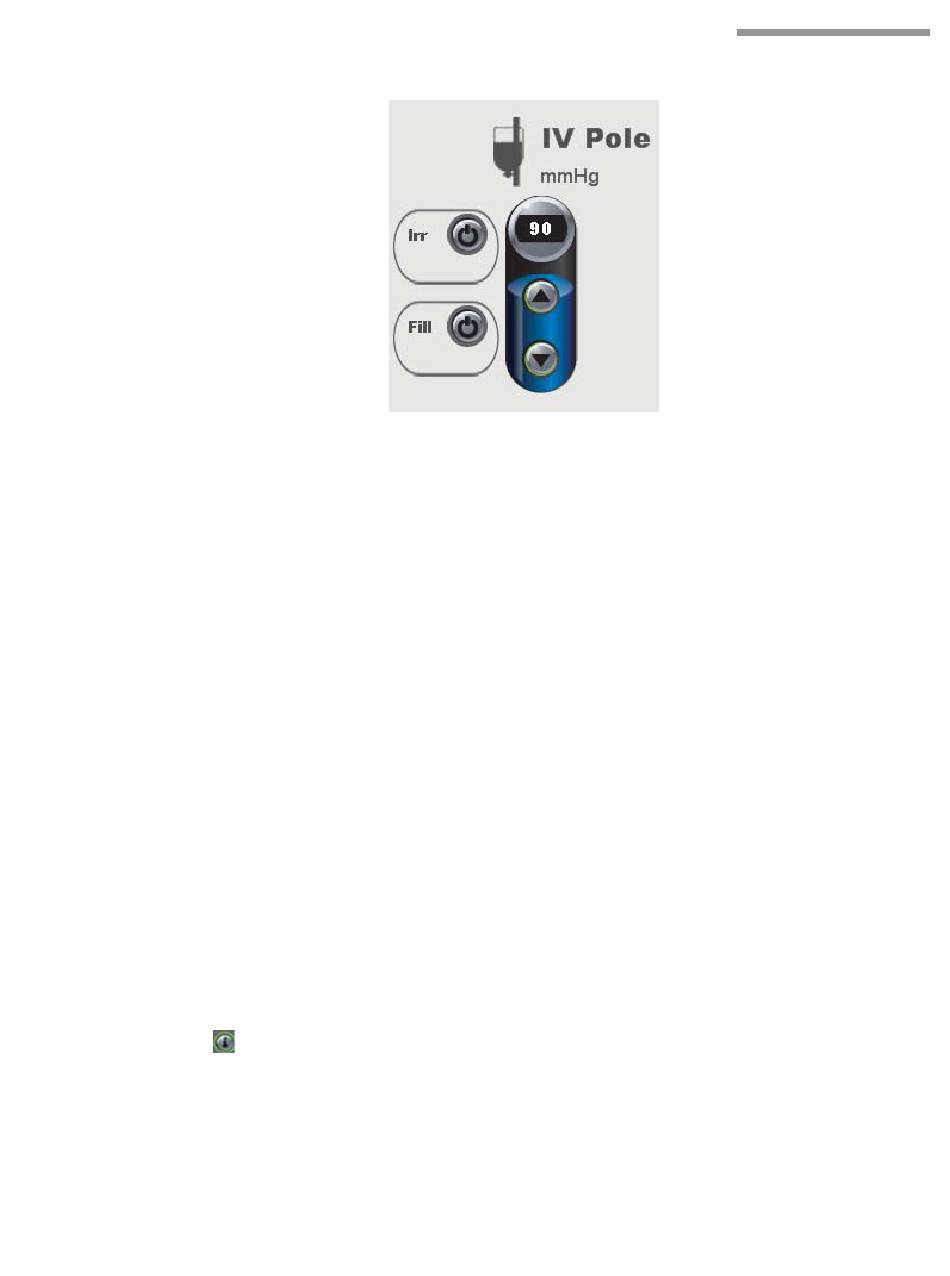

Figure 2.42. IV Pole Control display.
