- Page 1 Assembly instructions PRORUNNER mk1 Version 0.1 / 01-JUN-2013...
- Page 2 All rights reserved. No part of this document may be copied, stored in a database and/or published by means of printing, photocopying, microfilming or by any other means whatsoever without the prior written permission from Qimarox B.V. Assembly instructions PRORUNNER mk1...
-
Page 3: Table Of Contents
Safety instructions ....................10 Residual risks .......................11 Maintenance ......................11 Disposal and the environment ................11 Further support and information ................11 Overview PRORUNNER mk1 sections ............12 Required tools and pictograms ..............13 Assembly instructions ..................14 Drive section ......................15 5.1.1 Drive section parts ....................16 5.1.2 Drive section assembly 1/2 ................17... - Page 4 Assembly instructions PRORUNNER mk1...
-
Page 5: General

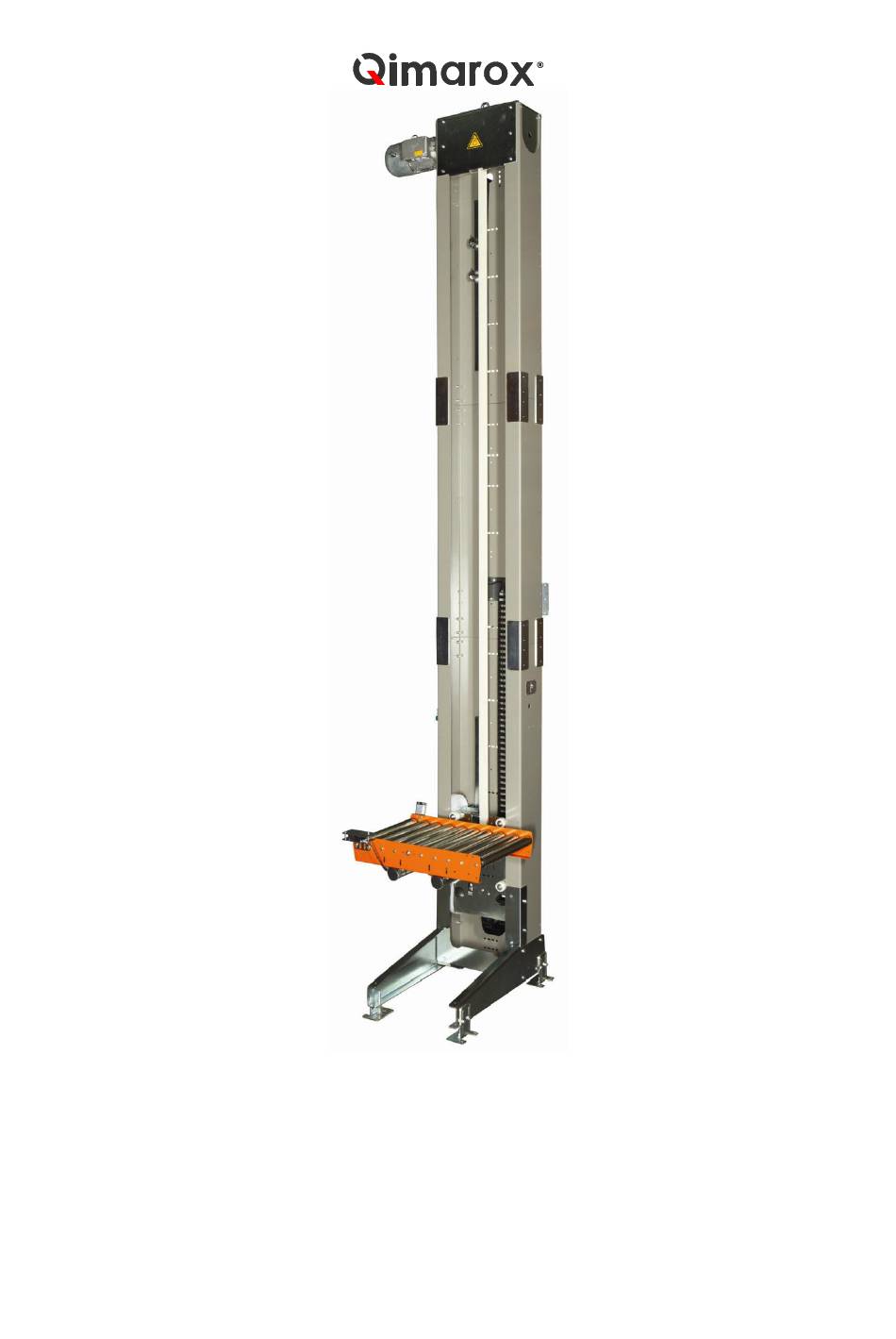

1.1 Preface These are the assembly instructions for the PRORUNNER mk1 product lift manufactured by Qimarox B.V. These instructions include all information that is important to you, the installer and/or user, to assemble the PRORUNNER mk1. The assembly instructions are intended for: ... -
Page 6: Machine Identification
1.4 Guarantee The scope and duration of the guarantee is agreed when the order is placed. The guarantee applies only if the PRORUNNER mk1 is used according to the specifications and if the use and maintenance instructions are observed. The PRORUNNER mk1 guarantee lapses if: ... -
Page 7: Liability
Using the machine for applications or under circumstances other than known at the time the order is placed with Qimarox B.V. Modifying the machine in any way. This also applies to replacement parts other than those specified in these assembly instructions. -
Page 8: Safety
Safety The responsibility of Qimarox B.V. lapses if the user does not comply with the guidelines and instructions provided in these assembly instructions for the assembly and construction of the PRORUNNER mk1. 2.1 Safety symbols The following symbols are used in these assembly instructions: Risk of damage to the PRORUNNER mk1 if the instructions are not followed carefully. -
Page 9: Installation
2.2 Installation Before the PRORUNNER mk1 is put into service, all of the parts the machine is composed of must comply with the applicable local regulations. See the user manual for installation instructions. Feel free to contact Qimarox B.V if you need assistance. -
Page 10: Safety Devices
Never switch on the power to the PRORUNNER mk1 or start the PRORUNNER mk1 if there are people in contact with the machine or if there are people inside the danger zones. -
Page 11: Residual Risks
2.6 Residual risks The machine is intended to be integrated into a transport system. Qimarox B.V has covered potential dangers as much as possible. Eliminate or guard the following residual risks before putting the whole assembly into service: Risk of injury caused by falling products. -
Page 12: Overview Prorunner Mk1 Sections
Overview PRORUNNER mk1 sections Section is a complete unit B Section is in two parts C Section is in three or more parts Assembly instructions PRORUNNER mk1... -
Page 13: Required Tools And Pictograms
Required tools and pictograms A Hammer B Crosshead screwdriver C Pliers D Spanner E Spirit level F Socket head wrench G Tape measure H Hoist Hoisting belt Assembly instructions PRORUNNER mk1... -
Page 14: Assembly Instructions
Assembly instructions Assembly instructions PRORUNNER mk1... -
Page 15: Drive Section
5.1 Drive section Assembly instructions PRORUNNER mk1... -
Page 16: Drive Section Parts
5.1.1 Drive section parts Optional Optional For the part numbers, see Section 6.1 Assembly instructions PRORUNNER mk1... -
Page 17: Drive Section Assembly 1/2
5.1.2 Drive section assembly 1/2 Assembly instructions PRORUNNER mk1... - Page 18 Drive section assembly 2/2 Optional Assembly instructions PRORUNNER mk1...
-
Page 19: Lower Section
5.2 Lower section Assembly instructions PRORUNNER mk1... -
Page 20: Lower Section Parts
5.2.1 Lower section parts Optional Optional Fit remaining mountings at a later stage. For the part numbers, see Section 6.2 Assembly instructions PRORUNNER mk1... -
Page 21: Lower Section Assembly 1/3
5.2.2 Lower section assembly 1/3 Assembly instructions PRORUNNER mk1... - Page 22 Lower section assembly 2/3 Optional Fit remaining mountings at a later stage. Assembly instructions PRORUNNER mk1...
- Page 23 Lower section assembly 3/3 Assembly instructions PRORUNNER mk1...
-
Page 24: Centre Section
5.3 Centre section Assembly instructions PRORUNNER mk1... -
Page 25: Centre Section Parts
5.3.1 Centre section parts Fit remaining mountings at a later stage. For the part numbers, see Section 6.3 Assembly instructions PRORUNNER mk1... -
Page 26: Centre Section Assembly 1/1
5.3.2 Centre section assembly 1/1 Fit remaining mountings at a later stage. Assembly instructions PRORUNNER mk1... -
Page 27: Trolley
5.4 Trolley Assembly instructions PRORUNNER mk1... -
Page 28: Trolley Parts
5.4.1 Trolley parts Optional Optional This part is fit at a later stage. Fit remaining mountings at a later stage. For the part numbers, see Section 6.4 Assembly instructions PRORUNNER mk1... -
Page 29: Trolley Assembly 1/2
5.4.2 Trolley assembly 1/2 Axes can be mounted on top or underneath. Assembly instructions PRORUNNER mk1... - Page 30 Trolley assembly 2/2 Optional This part is fit at a later stage. Assembly instructions PRORUNNER mk1...
-
Page 31: Subassembly Sections
5.5 Subassembly sections Assembly instructions PRORUNNER mk1... -
Page 32: Subassembly Section Parts
5.5.1 Subassembly section parts Optional Optional Fit the remaining Fit the remaining mountings now. mountings now. For the part numbers, see Section 6.5 Assembly instructions PRORUNNER mk1... -
Page 33: Drive And Tensioning Section Assembly 1/2
5.5.2 Drive and tensioning section assembly 1/2 Fit the remaining mountings now. Assembly instructions PRORUNNER mk1... - Page 34 Drive and tensioning section assembly 2/2 Optional Fit this part now. Assembly instructions PRORUNNER mk1...
-
Page 35: Exploded Views
Exploded views Assembly instructions PRORUNNER mk1... -
Page 36: Exploded View Drive Section
6.1 Exploded view drive section Assembly instructions PRORUNNER mk1... - Page 37 50P2 / STL 1001083 Mounting R57 1000842 C-profile 1000127 Nut plate M5 pc. 32 1000841 Bracket approach 1000932 Inductive sensor 1001326 Prefab cable PVC-OB L = 5 m 1001084 Column cover Left / Right 1001103 Eye bolt Assembly instructions PRORUNNER mk1...
- Page 38 Hexagon stud bolt 1000173 Spring washer M12 x 60 1001324 Hexagon stud bolt 1000150 Flat washer 1001325 Hexagon nut M8 x 12 1000385 Adjusting screw hexagon socket M8 x 70 1000878 Hexagon stud bolt 1000149 Flat washer Assembly instructions PRORUNNER mk1...
-
Page 39: Exploded View Lower Section
6.2 Exploded view lower section Assembly instructions PRORUNNER mk1... - Page 40 1001326 Prefab cable PVC-OB L = 5 m 1001092 Coupling profile column 1001093 Attachment of cable track 1000923 Cable track link Z.14.4.100.0 1000925 Cable track connecting set 114.4.12P2 1001045 Pipe clamp plastic ø34 1001090 Safety pin Assembly instructions PRORUNNER mk1...
- Page 41 1000398 Spring washer M6 x 12 1001312 Cylinder screw 1000174 Spring washer M5 x 16 1001313 Hexagon stud bolt 1000396 Spring washer M8 x12 1001311 Hexagon stud bolt 1000149 Flat washer M8 x12 1001314 Countersunk screw Assembly instructions PRORUNNER mk1...
-
Page 42: Exploded View Centre Section
6.3 Exploded view centre section Assembly instructions PRORUNNER mk1... - Page 43 L = 1250 mm 1001133 Frame centre L = 1950 mm 1001092 Coupling profile column Centre section mounting materials Centre section Quantity Part number Description (mounting mat.) Notes M8 x 12 1001311 Hexagon stud bolt 1000398 Spring washer Assembly instructions PRORUNNER mk1...
-
Page 44: Exploded View Trolley
6.4 Exploded view trolley Optional Assembly instructions PRORUNNER mk1... - Page 45 1000398 Spring washer 1000153 Flat washer 1000327 Hexagon nut M10 x 20 1000193 Hexagon stud bolt 1000147 Flat washer 1000172 Spring washer 1001104 Circlip M6 x 16 1000177 Countersunk screw 1000174 Spring washer 1000326 Hexagon nut Assembly instructions PRORUNNER mk1...
-
Page 46: Exploded View Subassembly Sections
6.5 Exploded view subassembly sections Assembly instructions PRORUNNER mk1... - Page 47 Signaller belt slack Optional 1000847 Clamping plate signaller belt slack Optional Subassembly section mounting materials Subassembly Quantity Part number Description (mounting mat.) Notes M8 x 20 1001175 Hexagon stud bolt 1000175 Spring washer 1000125 Hexagon nut Assembly instructions PRORUNNER mk1...
-
Page 48: Labels On Frame
Labels on frame Control cabinet Assembly instructions PRORUNNER mk1... - Page 49 Stickers on frame parts list Centre section Pos Quantity Part number Description (parts) Notes 1001535 Label for jamming 1000795 Type plate Assembly instructions PRORUNNER mk1...
- Page 50 Nobelstraat 43 NL 3846 CE Harderwijk Tel: +31 341 436 700 Fax: +31 341 436 701 Email: info@qimarox.com Internet: www.qimarox.com Assembly instructions PRORUNNER mk1...
