VIESMANN
Installation and service instructions
for contractors

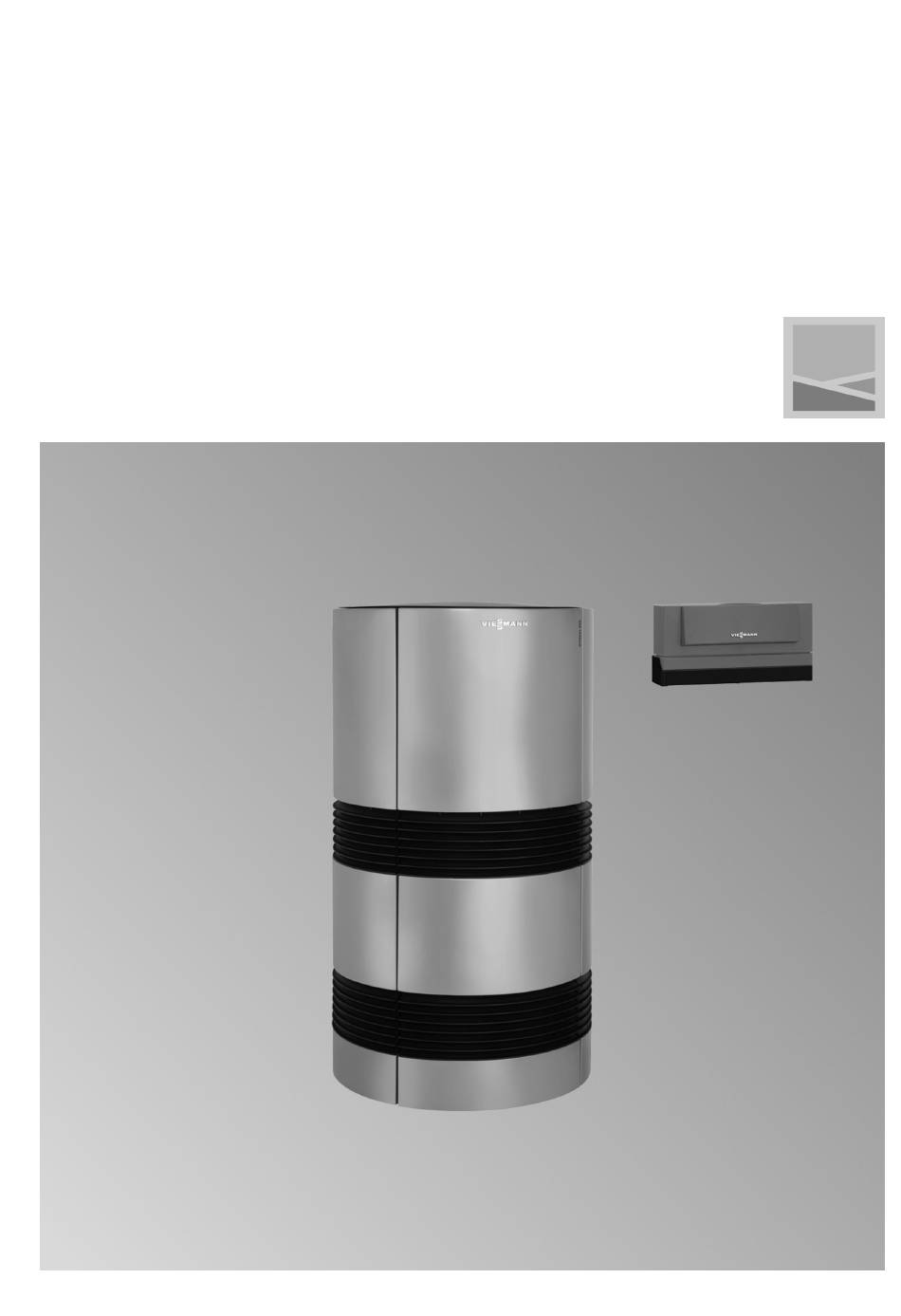

Vitocal 300-A
Type AWO-AC 301.B07 to B14
Air/water heat pump with electric drive, 400 V~
VITOCAL 300-A
Please keep safe.
5830928 GB
3/2018
