Description

Due to its small size the DiversiTech Mini-Split Pump is easy to use in all ductless systems (ceiling, wall or
floor-standing) with a cooling capacity of 34,000 btu/hr or less. The Mini-Split
• pump module (pump + control circuits)
• tank reservoir (3 level float: Pump shut-down, Pump start-up and alarm.)

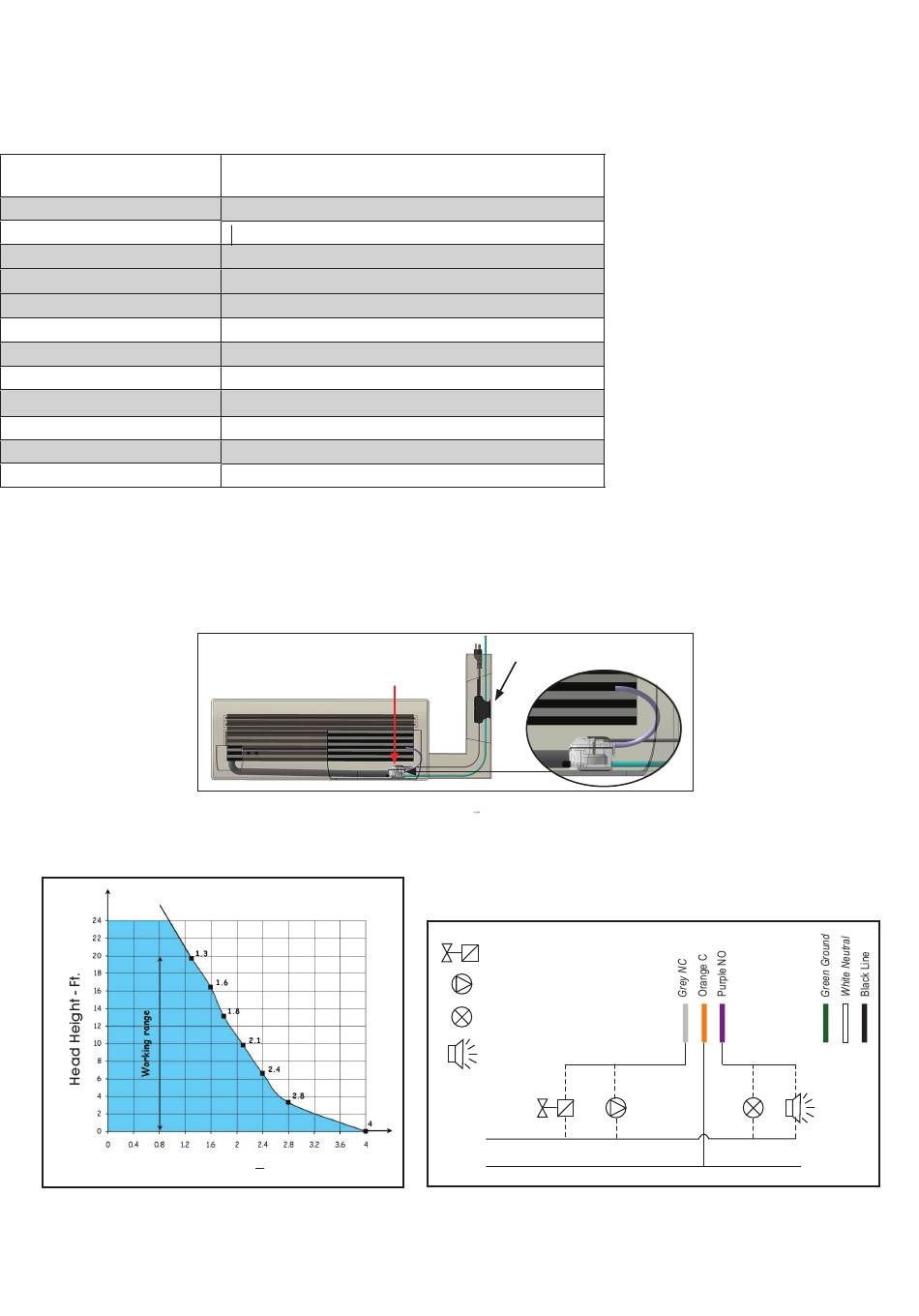

Technical Data

Liquid type:
Power Supply
Consumption
Rating
Working temperature
Storage temperature
Class
Capacity
Maximum discharge
Maximum suction
Thermal protection
Ingress Protection
Noise level
*= Average level pressure at 3.3 ft, calculated on acoustic power level Lwad = 32.80
dBA (ref 1pw) NF EN Iso 3744 standards

Installation

This pump must not be installed in zones of air circulation.
The power must be connected to a different source than air unit. Disconnect power before installation.
Only use the supplied cables.
Flow Rate Chart
condensate water from mini-split system -
maximum 35 ° C/95 ° F
115 V 60 Hz or 230 V 50/60 Hz
19 W
70% duty cycle (ex: 7 sec.ON/3 sec. OFF)
41 ° F to 113 ° F - 5 ° C to 45 ° C
37 ° F to 158 ° F - 3 ° C to 70 ° C
class 1 appliance
4 GPH @ zero head, 1.3 GPH @ 20 ft head
see Flow Rate Chart
6.6 ft
yes – with auto-restart
IP64
< 21 dBA* at 3.3 ft distance
Figure A
Reservoir Tank
Flow (GPH) + 10%
Pump comes in 2 modules:
®
Pump Module

Alarm and mains connections

Solenoid valve
Compressor
Light alarm
Sound alarm
or and / or
Neutral/Line 2
Line/Line 1
or
