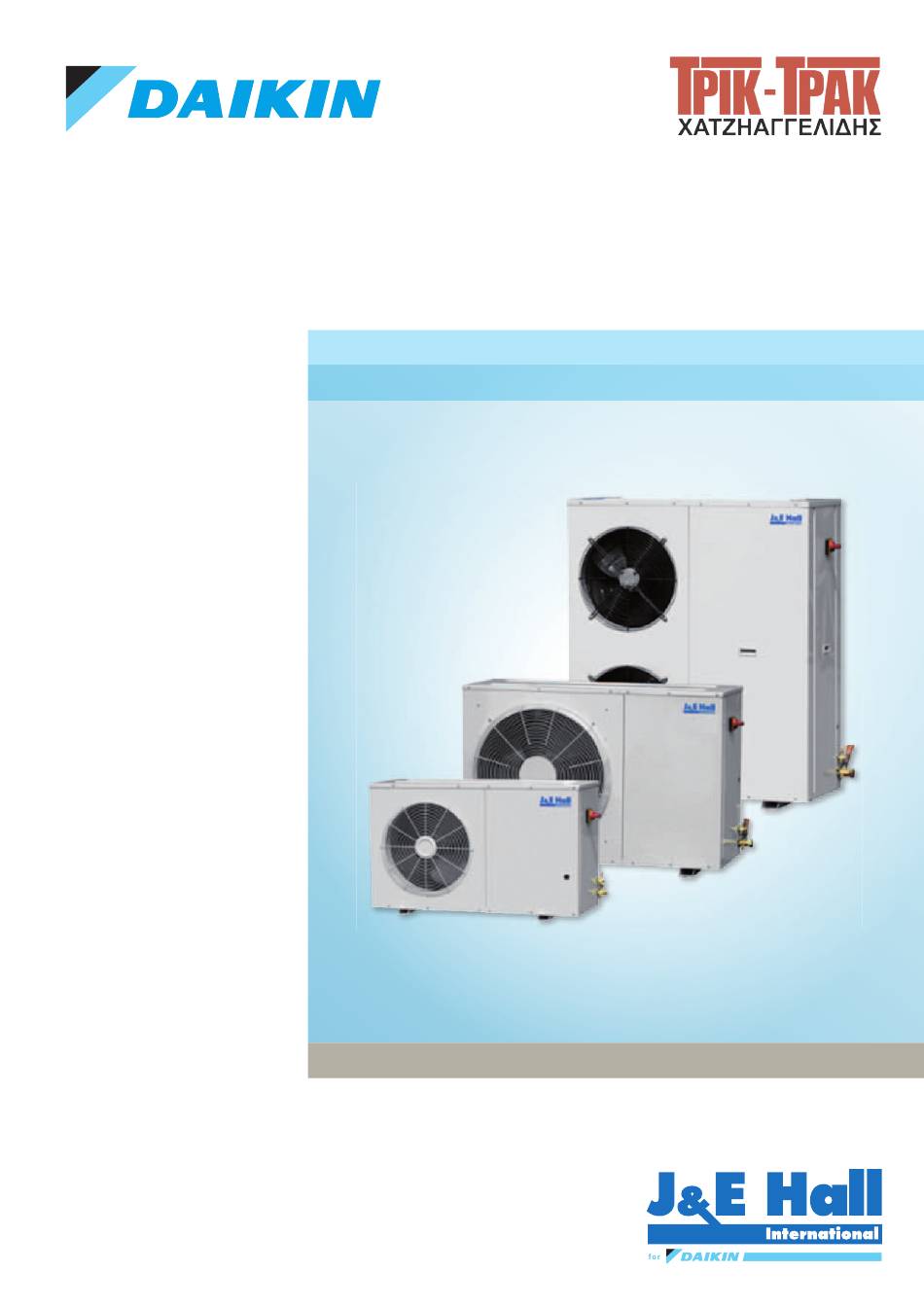

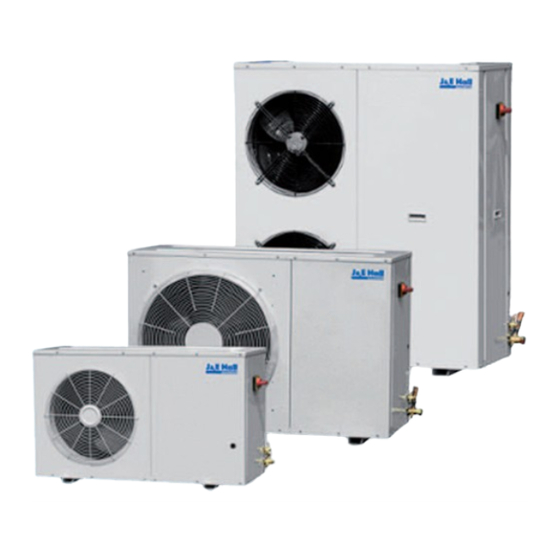

Page 1: Technical Data
Refrigeration Technical Data S c r o l l C o n d e n s i n g U n i t - J E H S C U E E D E N 1 3 - 7 8 0 A JEHSCU... - Page 2 Refrigeration Technical Data S c r o l l C o n d e n s i n g U n i t - J E H S C U E E D E N 1 3 - 7 8 0 A JEHSCU...
-
Page 3: Table Of Contents
• Scroll Condensing Unit • JEHSCU TABLE OF CONTENTS Scroll Condensing Unit Nomenclature ............2 Product Overview . -
Page 4: Nomenclature
1: Single Phase 3: Three Phase Application M: Medium Temperature L: Low Temperature Nominal Capacity in Horse Power 0200: 2.0 HP J & E Hall Commercial Scroll Condensing Unit for Daikin Product Overview Capacity(kW) Model Medium temperature* JEHSCU0200M1/3 JEHSCU0250M1/3 JEHSCU0300M1/3... -
Page 5: Specifications
• Scroll Condensing Unit • JEHSCU Specifications • Scroll Condensing Unit • JEHSCU... -
Page 6: Product System Cycles
• Scroll Condensing Unit • JEHSCU Product System Cycles Series 2 & 3: Medium Temperature Models Series 2 & 3: Low Temperature Models • Scroll Condensing Unit • JEHSCU... - Page 7 • Scroll Condensing Unit • JEHSCU Product System Cycles Series 4: Medium Temperature Models Series 4: Low Temperature Models • Scroll Condensing Unit • JEHSCU...
-
Page 8: Outline Drawings
• Scroll Condensing Unit • JEHSCU Outline Drawings Series 2: JEHSCU0200M1, JEHSCU0250M1, JEHSCU0300M1, JEHSCU0200M3, JEHSCU0250M3, JEHSCU0300M3, JEHSCU0200L3, JEHSCU0300L3 Series 3: JEHSCU0350M3 • Scroll Condensing Unit • JEHSCU... - Page 9 • Scroll Condensing Unit • JEHSCU Outline Drawings Series 3: JEHSCU0400M3, JEHSCU0500M3, JEHSCU0600M3, JEHSCU0680M3, JEHSCU0400L3, JEHSCU0500L3, JEHSCU0600L3 Series 4: JEHSCU0800M3, JEHSCU1000M3, JEHSCU0750L3, JEHSCU1000L3 • Scroll Condensing Unit • JEHSCU...
-
Page 10: Performance Data
• Scroll Condensing Unit • JEHSCU Performance Data R404A Medium Temperature (Rating Condition: Superheat 10K, Sub cooling 0K) COMPRESSOR Series MODEL CC (W) 2500 3050 3650 4350 5150 6019 PC (W) 1460 1510 1560 1600 1630 1655 CC (W) 2315 2820 3400 4050... - Page 11 • Scroll Condensing Unit • JEHSCU Performance Data R404A Medium Temperature (Rating Condition: Superheat 10K, Sub cooling 0K) COMPRESSOR Series MODEL CC (W) 6650 8100 9800 11700 13800 16130 PC (W) 4560 4660 4770 4890 5030 5177 CC (W) 6150 7550 9150 10900...
- Page 12 • Scroll Condensing Unit • JEHSCU Performance Data R404A Low temperature (Rating Condition: Superheat 10K, Sub cooling 0K) Series MODEL COMPRESSOR 1075 1350 1665 2030 2450 CC (W) 1390 1480 1580 1690 1800 PC (W) 1000 1260 1560 1910 2310 CC (W) 1480 1570...
- Page 13 • Scroll Condensing Unit • JEHSCU Performance Data R404A Low temperature (Rating Condition: Superheat 10K, Sub cooling 0K) Series MODEL COMPRESSOR 5060 6330 7770 9380 11150 CC (W) 5238 5728 6248 6808 7388 PC (W) 4660 5850 7200 8720 10400 CC (W) 5568 6098...
- Page 14 • Scroll Condensing Unit • JEHSCU Performance Data R134a Medium Temperature (Rating Condition: Superheat 10K, Sub cooling 0K) COMPRESSOR Series MODEL 3600 4550 5600 6850 8250 9900 11700 CC (W) 1700 1740 1800 1860 1930 2000 2070 PC (W) 3400 4300 5300 6500...
-
Page 15: Electrical Data
• Scroll Condensing Unit • JEHSCU Electrical Data Important Note: All wiring and connections to the condensing unit must be made in accordance to the local codes. Series 2 (230V/1~/50Hz) JEHSCU0200M1, JEHSCU0250M1, JEHSCU0300M1 3.15A PRESSURE FAN SPEED SWITCH CONTROLLER GRN/YLW GRN/YLW CRANKCASE HEATER... - Page 16 • Scroll Condensing Unit • JEHSCU Electrical Data Series 2 (400V/3~/50Hz) JEHSCU0200M3, JEHSCU0250M3, JEHSCU0300M3, JEHSCU0200L3, JEHSCU0300L3 3.15A 3.15A PRESSURE FAN SPEED SWITCH CONTROLLER GRN/YLW GRN/YLW CRANKCASE HEATER GRN/YLW GRN/YLW GRN/YLW CONDENSING COMPRESSOR Series 3 (400V/3~/50Hz) JEHSCU0350M3, JEHSCU0400M3, JEHSCU0500M3, JEHSCU0600M3, JEHSCU0680M3, JEHSCU0400L3, JEHSCU0500L3, JEHSCU0600L3 3.15A PRESSURE...
- Page 17 • Scroll Condensing Unit • JEHSCU Electrical Data Series 4 (400V/3~/50Hz) JEHSCU0800M3, JEHSCU1000M3 3.15A PRESSURE FAN SPEED SWITCH CONTROLLER GRN/YLW GRN/YLW CRANKCASE HEATER GRN/YLW GRN/YLW GRN/YLW GRN/YLW CONDENSING COMPRESSOR CONDENSING FAN TOP FAN BOTTOM Series 4 (400V/3~/50Hz) JEHSCU0750L3, JEHSCU1000L3 3.15A PRESSURE FAN SPEED SOLENOID...
-
Page 18: Safety And Health
• Scroll Condensing Unit • JEHSCU Safety and Health Important Note Only a qualified refrigeration engineer who is familiar with refrigeration systems and components, including all controls should perform the installation and start-up of the system. To avoid potential injury, use care when working around coil surfaces or sharp edges of metal cabinets. All piping and electrical wiring should be installed in accordance with all applicable codes, ordinances and local by-laws. -
Page 19: Installation & Commissioning
• Scroll Condensing Unit • JEHSCU Installation & Commissioning Unit site location • In order to achieve maximum cooling capacity, the installation location for condensing unit should be carefully selected. • Install the condensing unit in such a way so that hot air distributed by the condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air). -
Page 20: Field Piping
• Scroll Condensing Unit • JEHSCU Installation & Commissioning Installation Clearance • The installation location should allow sufficient space for air flow and maintenance around the unit. • To allow sufficient space for doing service or installation. Field Piping Important Note Line sizing should only be determined by qualified personnel. - Page 21 • Scroll Condensing Unit • JEHSCU Installation & Commissioning Recommend compressor working pressure range Med Temp Low Temp Med Temp Compressor Model ZB*KQE ZF*KQE ZB*KQE Refrigerant R404A R404A R134A Working Pressure Range High 7.14 - 27.6 7.14 - 24.6 6.6 - 22.6 Side, (barg) Working Pressure Range Low...
- Page 22 • Scroll Condensing Unit • JEHSCU Installation & Commissioning Safety pressure switch settings The pressure switch fitted to condensing units with auto reset for low pressure and manual reset for high pressure are NOT factory preset. High pressure safety (Manual reset) The high pressure safety switch is required to stop the compressor, should the discharge pressure exceed the values shown in the following table.
- Page 23 • Scroll Condensing Unit • JEHSCU Installation & Commissioning Important Note There must be no more than 10 compressor starts per hour. A higher number reduces the service life of the compressor. If necessary, use an anti-short-cycle timer in the control circuit. Minimum a 3 minute runtime after each start of compressor and a 3 minute idle time after each stop are recommended.
-
Page 24: Service & Maintenance
• Scroll Condensing Unit • JEHSCU Service & Maintenance Important Note Warning! - Disconnect the main electrical supply before servicing or opening the unit Warning! - Ensure there is no refrigerant in refrigerant circuit before dismantle it Warning! - If the supply cord is damaged, it must be replaced by the qualified service agent in order to avoid a hazard. The condensing units are designed to give long life operation with minimum maintenance. -
Page 25: Checkpoints
• Scroll Condensing Unit • JEHSCU Checkpoints • Ensure the high low pressure controls are configured properly. • Ensure crankcase heater is energized minimum 12 hours prior to start up and permanently energized. • Check the refrigerant is correct for intended use. •... -
Page 26: Trouble Shooting
• Scroll Condensing Unit • JEHSCU Trouble Shooting This troubleshooting guide describes some common condensing unit failure. Consult qualified personnel before any corrective actions are taken. Failure Possible Causes • Improper wiring Fan does not work • Fan motor faulty •... -
Page 27: Exploded View Of The Condensing Unit
• Scroll Condensing Unit • JEHSCU Exploded view of the condensing unit Series 2 (230V/1~/50Hz): Medium temperature: JEHSCU0200M1, JEHSCU0250M1, JEHSCU0300M1 Series 2 (400V/3~/50Hz): Medium temperature: JEHSCU0200M3, JEHSCU0250M3, JEHSCU0300M3 Series 2 (400V/3~/50Hz): Low temperature: JEHSCU0200L3, JEHSCU0300L3 • Scroll Condensing Unit • JEHSCU... - Page 28 • Scroll Condensing Unit • JEHSCU Exploded view of the condensing unit Series 3 (400V/3~/50Hz): Medium temperature: JEHSCU0350M3, JEHSCU0400M3, JEHSCU0500M3, JEHSCU0600M3, JEHSCU0680M3 Series 3 (400V/3~/50Hz): Low temperature: JEHSCU0400L3, JEHSCU0500L3, JEHSCU0600L3 • Scroll Condensing Unit • JEHSCU...
- Page 29 • Scroll Condensing Unit • JEHSCU Exploded view of the condensing unit Series 4 (400V/3~/50Hz): Medium temperature: JEHSCU0800M3, JEHCSU1000M3 Series 4 (400V/3~/50Hz): Low temperature: JEHSCU0750L3, JEHSCU1000L3 • Scroll Condensing Unit • JEHSCU...
-
Page 30: Exploded View Of The Control Box
• Scroll Condensing Unit • JEHSCU Exploded view of the control box SERIES 2 CONTROL BOX (SINGLE PHASE) Model: JEHSCU0200M1 JEHSCU0250M1, JEHSCU0300M1 Item Description CONTACTOR MOTOR CIRCUIT BRAKER AUXILLARY CONTACTOR FAN CAPACITOR FUSE 3.15 A H/L PRESS.SWITCH FAN SPEED CONTROLLER SERIES 2 CONTROL BOX (THREE PHASE) Model: JEHSCU0200M3 JEHSCU0250M3, JEHSCU0300M3, JEHSCU0200L3, JEHSCU0300L3 Item... - Page 31 • Scroll Condensing Unit • JEHSCU Exploded view of the control box SERIES 3 CONTROL BOX (THREE PHASE) Models: JEHSCU0350M3, JEHSCU0400M3, JEHSCU0500M3, JEHSCU0600M3, JEHSCU0680M3, JEHSCU0400L3, JEHSCU0500L3, JEHSCU0600L3 Item Description CONTACTOR MOTOR CIRCUIT BRAKER AUXILLARY CONTACTOR FAN CAPACITOR FUSE 3.15 A H/L PRESS.SWITCH FAN SPEED CONTROLLER SERIES 4 CONTROL BOX (THREE PHASE)
-
Page 32: Declaration Of Conformity
• Scroll Condensing Unit • JEHSCU Declaration of Conformity • Scroll Condensing Unit • JEHSCU... - Page 33 • Scroll Condensing Unit • JEHSCU Declaration of Conformity • Scroll Condensing Unit • JEHSCU...
- Page 34 Specifications are subject to change without prior notice. Daikin Europe Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende...
