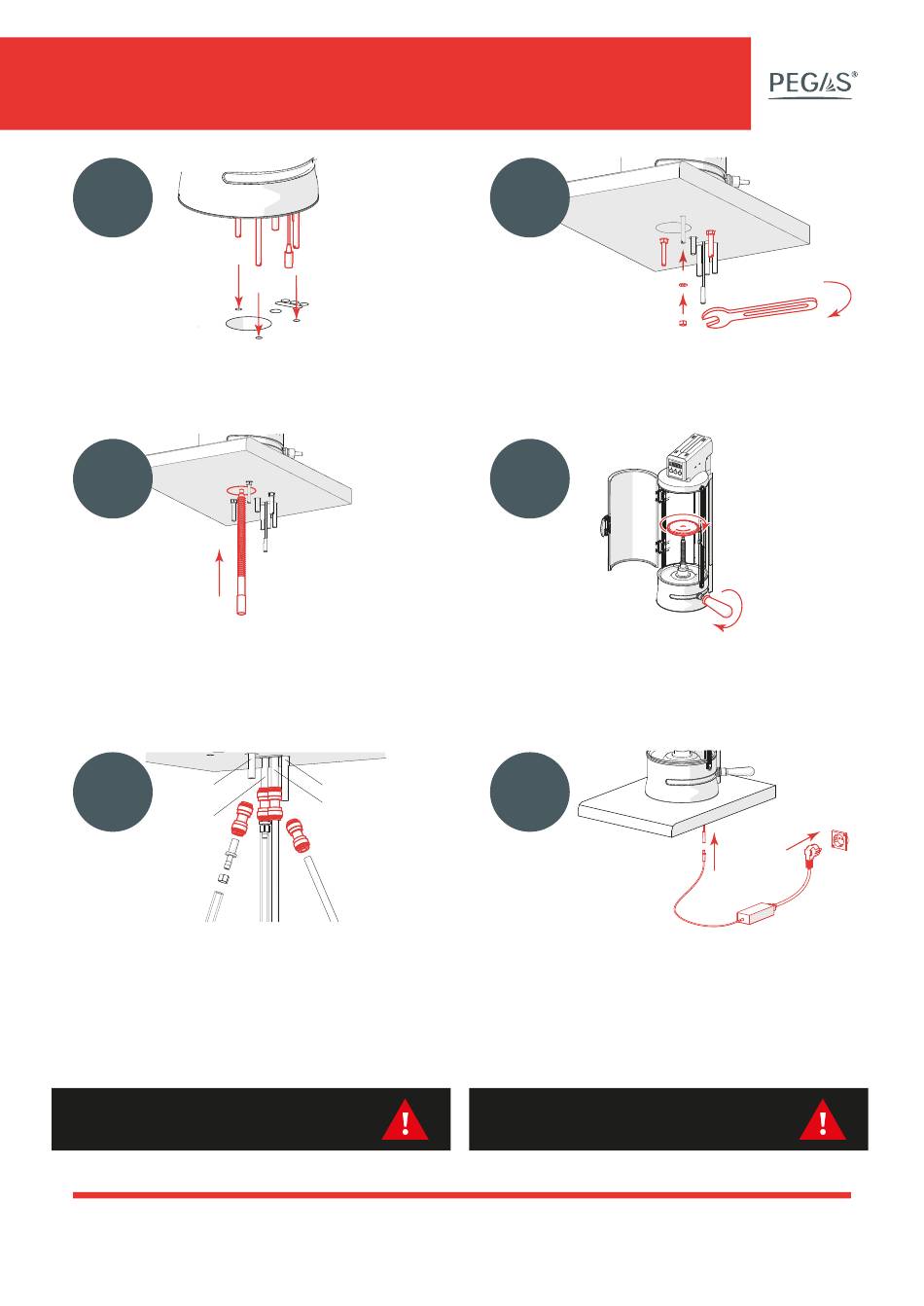

Install the device on the countertop
in the holes drilled.
6
Insert the stem in the central hole under the countertop
so that its threaded end is out of the cam's hole.
8
flask
drainage
gas
Connect the gas and beverage supply hoses and drainage
hoses to the appropriate tubes. If using hard hoses, take
JG 3/8'' straight connectors, for soft hoses— additionally
put the JG 3/8'' - 5/16'' nippels and fix hose ends with
clips.
Make sure that the gas
supply is closed
Manual videos can be found on http://beerinnovations.com
Put washers and screw nuts on the pins and fasten
the device at the countertop by tighting the nuts up.
Twist the drip tray onto the stem end, having
the pad attached. Then twist the handle
into the appropriate place.
beverage
dispensing
unit drainage
Connect power unit with the appropriate
device connector under the counter top.
Connect the device to a power supply.
Make sure that the power supply parameters
suit the requirements of the device
