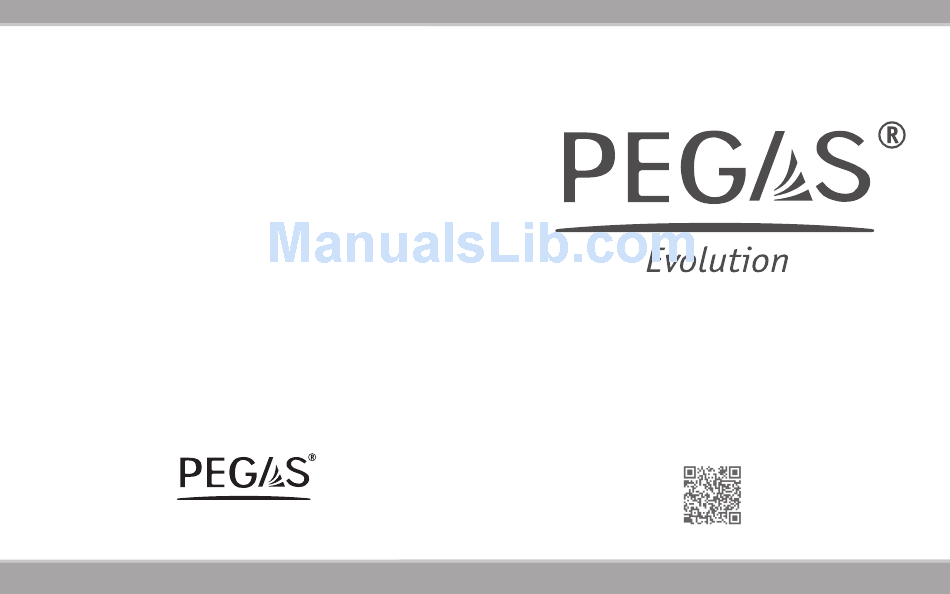

- Page 1 OPERATION MANUAL www.beerinnоvations.com www.bEERINNOvATIONs.cOM/Evolution_operation_manual...
-
Page 2: Table Of Contents
4. Assembly and installation 5. Typical connection pattern 6. Changeover of the universal bottle holder mechanism 7. Dispensing procedure 8. Device maintenance 9. Troubleshooting 10. Safety measures 11. Additional information Pegas Evolution Device diagram for ordering spare parts PEGAS EVOLUTION OPERATION MANUAL... -
Page 3: Pegas Evolution Device Diagram
11. Flat washer 12. 5/8’’ nut 13. coupling nut 14. beverage supply nipple 2. Function of Device The PEGAS Evolution device is intended for fast foam-free dispensing of foamy and/or car- bonated beverages (including beer) from pressurized containers (kegs) into plastic bottles with 5. - Page 4 Spare parts set: PEGAS Evolution device should be assembled as follows: IDENTIFICATION № Make sure the device is sealed Slider 123016 Gasket 101012 before installing the shank, make sure the O-Ring 108030 device has a gasket. Using an s19 wrench, screw the shank into O-Ring 131006 the 5/8”...
- Page 5 Unscrew the coupling nut [13] from the shank. the gasket is properly placed in position. Remove the beverage supply nipple [14] gether with its gasket. Unscrew the 5/8” nut [12] and remove the flat washer [11]. The device is now ready for installation. PEGAS EVOLUTION OPERATION MANUAL...
- Page 6 G 5/8’’ • Twist the shank into the hole in such a way that the PEGAS Evolution device is in vertical position, and the gasket is pressed down to ensure a proper seal.
- Page 7 14 mm diameter in the beer tower, or install the device onto a beer tower with ready-made holes. I. PEGAS Evolution Device II. beer keg III. cO gas cylinder with pressure regulator IV. cooler V.
-
Page 8: Changeover Of The Universal Bottle Holder Mechanism
PcO 1810, PcO 1881, bPF standard necks. joints are sealed tightly. Dispensing into plastic bottles with the PEGAs Evolution should be done as follows:... - Page 9 – open the throttle valve. In order to preserve beer quality, seal the bottle with a leak-proof cap as quickly as possible. PEGAS EVOLUTION OPERATION MANUAL...
-
Page 10: Device Maintenance
(wash-keg) To clean the device a sanitary liquid should be supplied from a hose-adapted container placed at the beer keg position. The beer supply hose and the PEGAS Evolution device itself are the Rinsing water 40-60 water pipe first ones to be washed. -
Page 11: Troubleshooting
Regular washing and disinfection as well as a constant monitoring of the sanitary condition of the Replace the hoses that are out of order beer/gas supply hoses are clogged PEGAs Evolution will ensure a long life span and smooth function of the device. Pressure release valve is closed/clogged Open/unclog the pressure release valve... - Page 12 The flow switch of PEGAS Evolution dispensing device is a high duty effective appliance which Device diagram for ordering spare parts ensures operating capability of the whole device for at least 100 000 cycles. Providing a proper 131033 maintenance (see section 8), the flow switch will effectively operate through the whole warranty...
