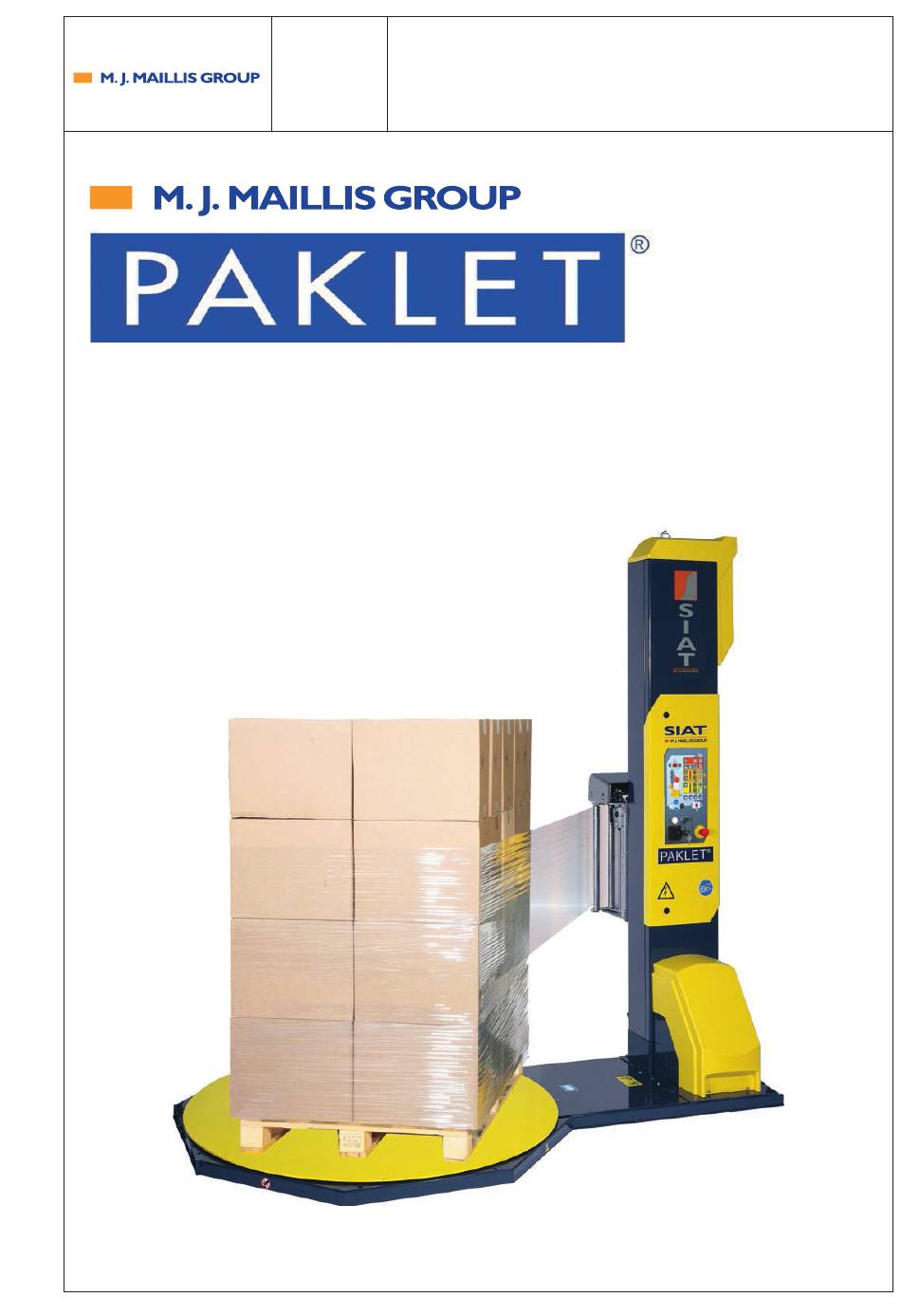

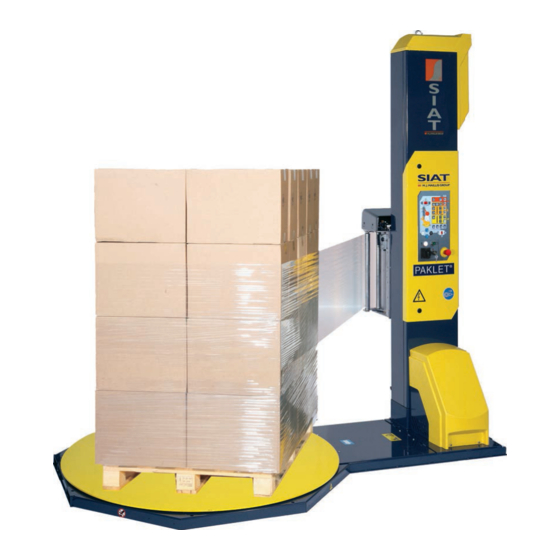

- Page 1 FASCICOLO AGGIUNTIVO MANUALE CO 3900218200 CONTRACT SBC0026936 ADDITIONAL SET CO 3900218200 CONTRACT Fasciapallet semiautomatico Semiautomatic stretchwrapper SW2A+...
- Page 2 This page is blank...
- Page 3 5-INSTRUCTIONS FOR USE CONTROL PANEL 1 - Main switch: rotate clockwise up to position 1 to power the machine 2 - READY - system on: by pressing it the power supply is activated 3 - EMERGENCY STOP: by pressing it the machine is immediately shut down (to unlock turn it anticlockwise) 4 - power at the machine inlet 5 - PROCESS START: cycle start up in automatic mode 6 - PROCESS STOP: immediate cycle shut-down in automatic mode;...
- Page 4 5-INSTRUCTIONS FOR USE OPERATION If the symbol shown in the picture appears on the touch screen at machine start, press it to reset the machine. During reset, the machine elements move and place on start position “0”. Read or write a program (see details on page 11). Recall the required program;...
- Page 5 5-INSTRUCTIONS FOR USE DESCRIPTION OF WRAPPING PROGRAMS Wrapping in ascent and descent: The machine wraps the rotating load both during the carriage ascent and descent, by forming a double cross coverage. Wrapping in ascent and descent with stop for top sheet positioning: The machine wraps the rotating load only during the carriage ascent.
- Page 6 5-INSTRUCTIONS FOR USE By pressing the button START again the machine re-start with the rising carriage that will wrap the protection top sheet by fixing its flaps. Once the load top limit is reached the carriage will reverse its running by wrapping the load during the descent, too. Wrapping only in ascent: The machine wraps the rotating load only during the car- riage ascent.
- Page 7 5-INSTRUCTIONS FOR USE PROGRAMS CREATION 1- Initial page appears, press the access icon, in this way you enter the main page. Selected working program. When a work cycle starts (by pressing start button) the program settled in “ACTUAL PROGRAM” is performed.
- Page 8 5-INSTRUCTIONS FOR USE PROGRAMS CREATION By selecting Setup Cycle the password is required PASSWORD REQUEST Enter the following password on the keyboard: After entering the password the main screen appears By selecting NEXT the “language selection” page appears After confirmation, the following page appears: Once you are in language selection choose the desired language and press next icon in order to enter selection of the wrapping program.
- Page 9 5-INSTRUCTIONS FOR USE After language selection appears: READING - Set the program to read then press OPEN button To read a prevoiusly saved program perform the function READING WRITING - Set the number of the program to write then press “SAVE” To save a program perform the function WRITING - “Saving recipe in course”...
- Page 10 5-INSTRUCTIONS FOR USE (A) complete wrapping cycle, ascent/descent (B) complete wrapping cycle ascent/descent with top sheet (C) wrapping cycle only ascent May 2014 ENGLISH...
- Page 11 5-INSTRUCTIONS FOR USE In parameters set it’s possible to set and adjust the speed of the carriage ascent and/or descent, it’s possible also to setup the film overlapping measure. Press next icon to enter the screen of the additional rounds parameters. In additional rounds parameters set it’s possible to setup the additional wrapping rounds: Down...
- Page 12 5-INSTRUCTIONS FOR USE On this page it’s possible to set: 1. Pressing unit enablement or disablingand the pressing unit descent time 2. The measure of the carriage descent, if used only in cycle wit top sheet Press next in order to proceed with parameters set- ting Rotation Speed On this screen customize the turntable rotation speed with carriage in ascent (arrow up) and with...
- Page 13 5-INSTRUCTIONS FOR USE WRITING Set the program to be saved then press “SAVE” During saving, message “writing recipe in course” appears Press close to exit May 2014 ENGLISH...
- Page 14 5-INSTRUCTIONS FOR USE You will be directed to main page, press mainte- nance. Enter password 100 on the keyboard and press enter. May 2014 ENGLISH...
- Page 15 5-INSTRUCTIONS FOR USE On page work cycle, press MANUAL icon that will be- come green. Press next, screen ‘manual controls’ appears, where it’s possible to control all machine movements. Adjust the turntable rotation speed Adjust the carriage ascent speed Adjust the carriage descent speed Adjust film tension Lever cut film Clamp film...
- Page 16 5-INSTRUCTIONS FOR USE On this page data concerning maintenance are visualized. You need to set the maintenance hours. 1 -RESET key clears the partial value 2 - Press RESET to clear the actual hours counter and to reset the alarm Once the settled value is reached the window MAINTENANCE HOURS SETTING will appear May 2014...
- Page 17 5-INSTRUCTIONS FOR USE Press reset icon and then close, coming back to programs page. If the alarms page icon is red select it to visualize them. May 2014 ENGLISH...
- Page 18 5-INSTRUCTIONS FOR USE You can enter “History Al.” page by pressing this button Alarm acknowledgment button Press Close to come back to main page Press Close to come back to main page Press Alarm to come back to “Alarms” page May 2014 ENGLISH...
- Page 19 5-INSTRUCTIONS FOR USE Press start icon on the control panel for work cycle start May 2014 ENGLISH...
- Page 29 Pos. Q.tà NuovoCodice Descrizione1 SBA0014485 GR. IMPIANTO PNEUMAT CAMOZZI SOFFIAT. 1 PZ SCB0000927 VALVOLA ELETTROPNEUMAT 5/2 MONOST. 1 PZ SCB0001016 CONNETTORE 152‐800 X ELETTROV. 1 PZ S3801006ZZZ TAPPO RA 019 1/8" CILINDRICO 1 PZ SCB0001111 RACCORDO A GOMITO 7522 6‐1/8 CAMOZZI...
- Page 31 POSIZ. DESCRIZIONE Q.Tà MCU 702‐M5+6610 6‐M6 VALVOLE DI REGOL. 2 PZ 24N2A16A050 MINICILINDRI 1 PZ 24N2A25A080 MINICILINDRI 1 PZ 60M2L063F0150 CILINDRI SERIE 60 1 PZ GA‐12‐16 ACCESSORI MINICILINDRI M6X1 1 PZ GA‐32 ACCESSORI CILINDRI M10X1,25 1 PZ GA‐50‐63 ACCESSORI CILINDRI M16X1,5 1 PZ CSH‐263 SENS. REED 3FILI 10‐30Vacdc M8 6 PZ S‐CST‐02 SUPPORTO DIAM.16 SR.24‐25‐27 2 PZ S‐CST‐25 SUPPORTO SENS. D.32‐‐63 SR.40 5 PZ 338‐035 VALVOLE A SPOLA 2 PZ VSO 425‐M5 VALVOLE AUTOMATICHE 1 PZ 2901 1/8 SILENZIATORI 2 PZ PMCU 704‐1/8‐6 VALVOLE DI REGOLAZIONE 3 PZ...
