IR2568 Concealed WC Cistern with Infra Red Flush
Introduction
This installation guide has been produced for the IR2568
WC cistern and infra red flush. These instructions cover the
installation, operation and maintenance.
The cistern and flush are intended for concealed installation
behind a panel.
Please read the enclosed instructions before commencing
the installation of this product, please note;
We recommend that the installation of any Inta product is
carried out by an approved installer.
Check Content
Before commencing remove all components from the
packaging and check each component with the contents
list.
Ensure all parts are present, before discarding any
packaging. If any parts are missing, do not attempt to
install your Inta cistern and flush until the missing parts
have been obtained.
Components
Item Component
1 Cistern with Cover
2 Flush Valve - installed in cistern
3 Inlet Flow Valve - installed in cistern
4 Solenoid Valve
5 Infra Red Sensor
6 IP65 Battery and Battery Box
7 Perspex Tube
8 Flush Pipe

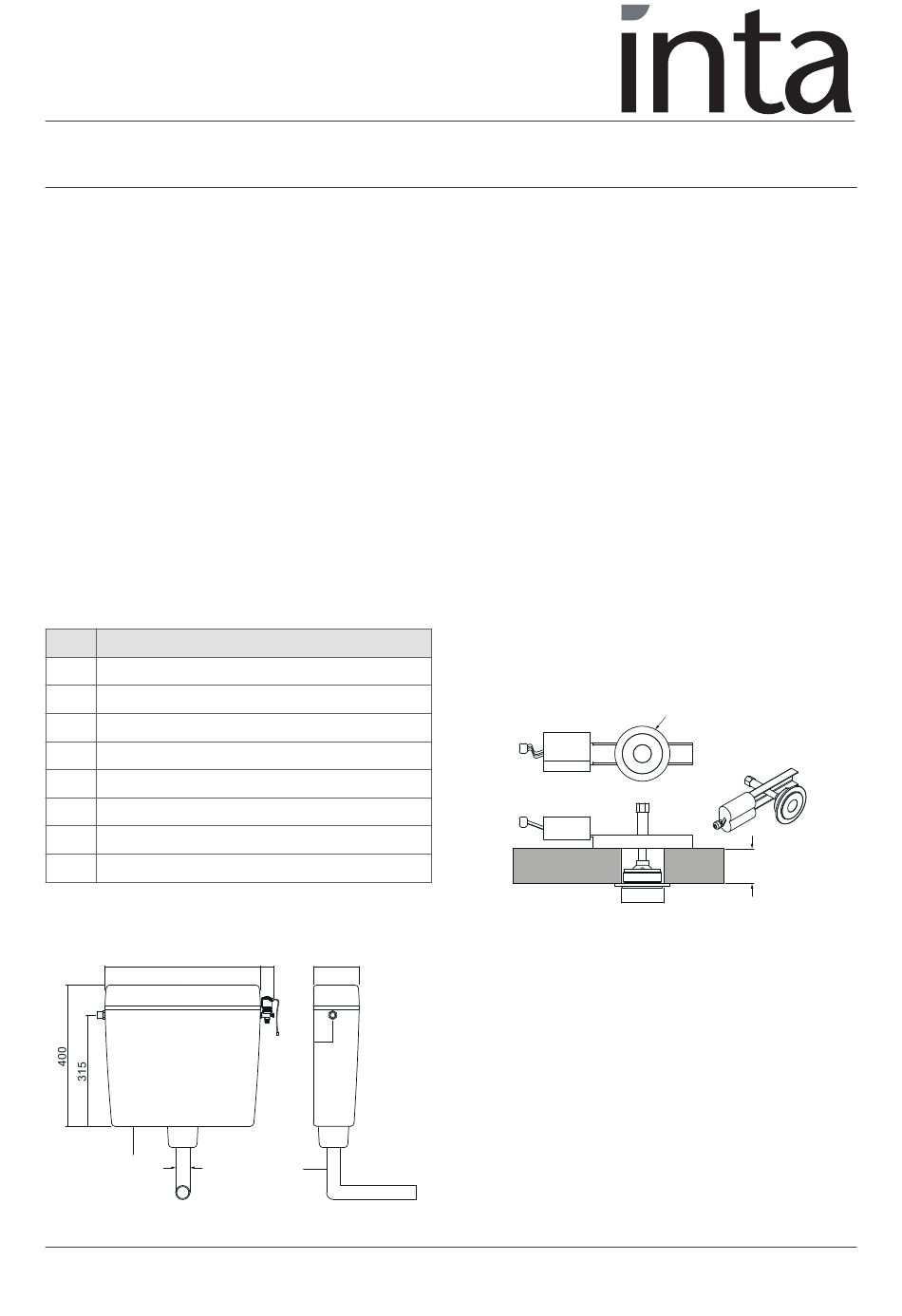

Dimensions
440
2
Ø50
Intatec Limited, Airfield Industrial Estate, Hixon, Staffordshire, ST18 0PF
Tel:01889 272 180
© Intatec Ltd. 2014
38 130
55
8
Fax:01889 272 181
Technical Specification
Operating water pressure range: 1 to 8 bar (recommended
max 5 bar).
Power supply: 6V lithium battery mod. CRP-2.
Operating
The water flush is activated by a hand wave 5 to 6 cm
away from the infra red sensor.
Auto-flush: every 24 hours from the last flush.
Installation
Before commencing the installation ensure the wall on
which the cistern is to be mounted is structurally suitable.
Install the cistern directly above the toilet pan and using the
most suitable flush pipe connect to the toilet.
Connect the water supply to the cistern, a service valve
must be installed in the supply pipe should future
maintenance be required.
Do not turn on the water supply at this time.
Drill a hole in the concealing panel 40 to 45mm in
diameter for the infra red sensor.
The distance from the sensor to the solenoid valve must be
less than 900mm.
email:sales@intatec.co.uk
Ø55
Battery
Box
Max 65
Ø40-45
