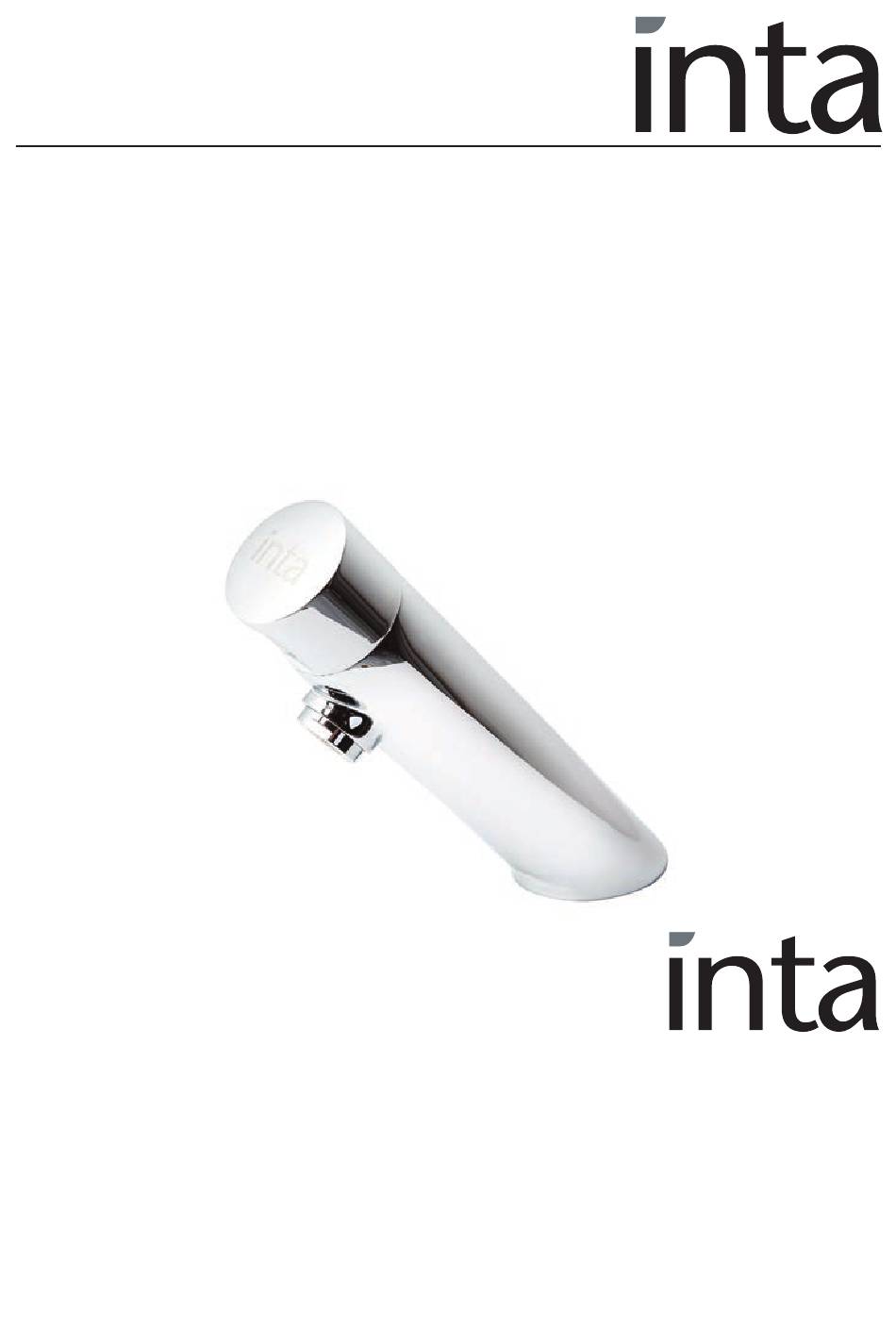

Infra Red Basin Tap
IR500CP & IR501CP
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the
information as accurate as possible.
Tel: 01889 272 180
We cannot accept any responsibility should it be found that in
Fax: 01889 272 181
any respect the information is inaccurate or incomplete or
email: sales@intatec.co.uk
becomes so as a result of further developments or otherwise.
web: www.intatec.co.uk
© Intatec Ltd 2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Inta IR500CP
Summary of Contents for Inta IR500CP
- Page 1 Infra Red Basin Tap IR500CP & IR501CP Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the information as accurate as possible. Tel: 01889 272 180 We cannot accept any responsibility should it be found that in...
-
Page 2: Check Contents
Introduction This installation guide has been produced for the IR500CP & IR501CP infra red basin taps. These instructions cover the installation, operation and maintenance. Please read the enclosed instructions before commencing the installation of this product, please note; We recommend that the installation of any Inta product is carried out by an approved installer. -
Page 3: Technical Data
To electricity supply Technical Data Power specification: 6V low voltage system Power source - IR500CP: 4 x 1.5V CRP2 batteries IR501CP: 230V transformer Operating water pressure: 1.0 to 8.0 bar (14.5 to 116 psi) With water pressure in excess of 8 bar use with a pressure reducing valve. -
Page 4: Pre-Installation Information
Dimensions Ø45 Ø49 Ø69 G½B G½ Pre-installation Information Warning Do not install the tap facing a mirror or any other electronic system operated by an infra red sensor. This tap is also vulnerable to stray sensor readings from users wearing high visibility or other reflective clothing. -
Page 5: Installation
Installation 1. A service valve should be installed in the water supply pipe to the valve should maintenance be required in the future. 2. Turn off the water supply using the service valve (not supplied). 3. Screw the two threaded rods (5) and copper tail (6) into the base of the tap. 4. -
Page 6: Limited Warranty
Aftercare • Inta taps have a high quality finish and should be treated with care. • An occasional wipe with a mild washing-up liquid on a soft damp cloth followed by a thorough rinsing is all that is required. -
Page 7: Troubleshooting
Trouble Shooting Problem Cause Solution Check service valve is closed Open service valve Exhausted battery - the LED Replace battery blinks Check the voltage - where needed Disconnect and reconnected the battery Check the connector of the Electrical problems power cable No water flow from tap Check the cable for damage Damaged sensor - assistance... - Page 8 Please leave this Manual for the User To active your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk E &...
