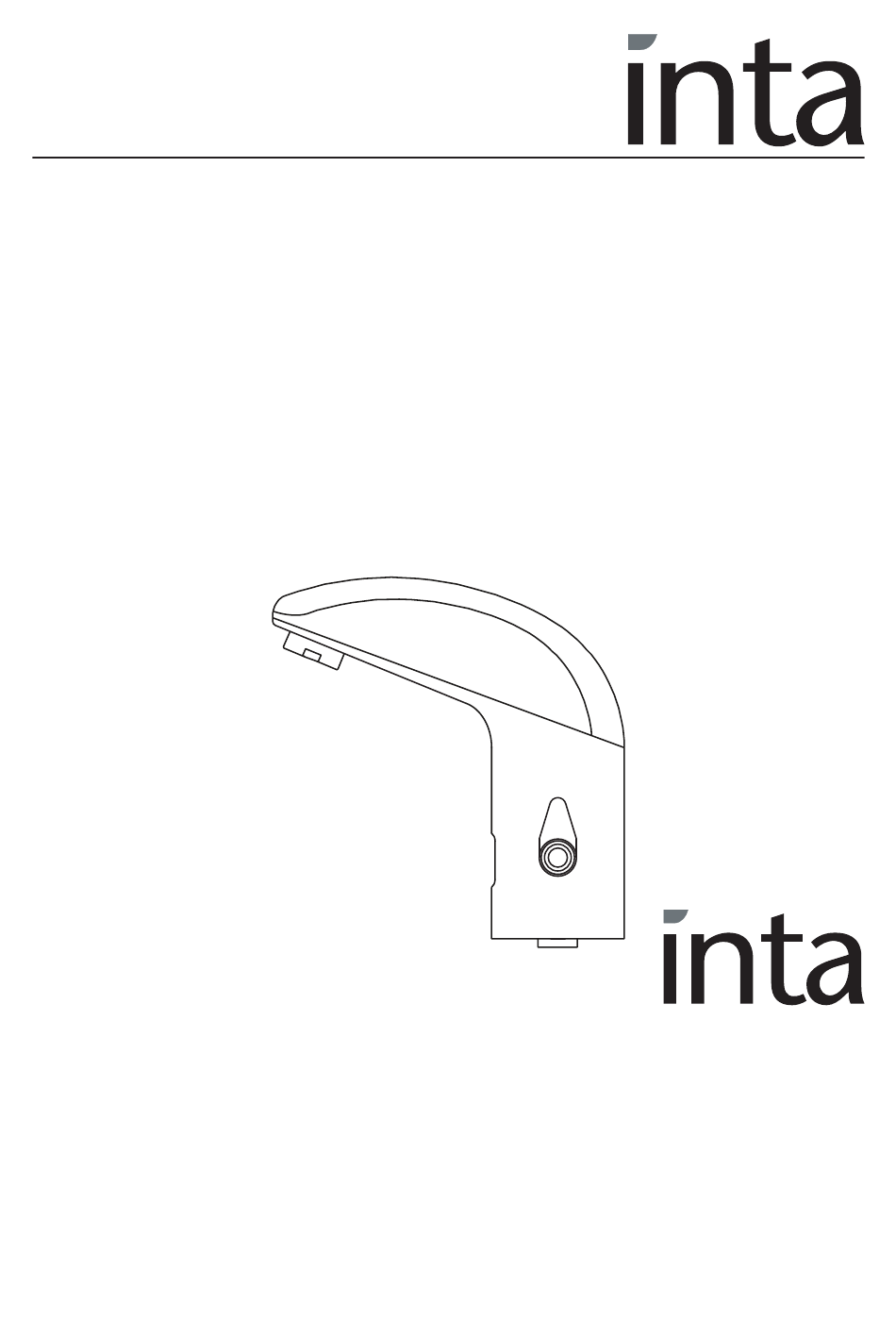

Infrared Temperature Adjustable
Basin Taps
IR180CP
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the
Tel: 01889 272 180
information as accurate as possible.
Fax: 01889 272 181
We cannot accept any responsibility should it be found that
email: sales@intatec.co.uk
in any respect the information is inaccurate or incomplete or
web: www.intatec.co.uk
becomes so as a result of further developments or otherwise.
© Intatec Ltd 2022
Advertisement
Table of Contents
Related Manuals for Inta IR180CP
Summary of Contents for Inta IR180CP
- Page 1 Infrared Temperature Adjustable Basin Taps IR180CP Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the Tel: 01889 272 180 information as accurate as possible. Fax: 01889 272 181 We cannot accept any responsibility should it be found that email: sales@intatec.co.uk...
-
Page 2: Check Components
Introduction This installation guide has been produced for the IR180CP infra red temperature adjustable basin taps. These instructions cover the installation, operation and maintenance. Please read the enclosed instructions before commencing the installation of this product, please note; We recommend that the installation of any Inta product is carried out by an approved installer. - Page 3 Components Constant Temperature Collar IR181CP Taps 1off 1 off Flexible Tail Threaded Rod 2 off 2 off Steel Horse Rubber Horse Rubber Seal Retaining Nut Shoe Washer Shoe Washer for Base of Tap 2 off 1 off 1 off 1 off Seal Washer Cap screws with Filter...
- Page 4 Dimensions ØA Product Codes IR180CP G½ © Intatec Ltd 2022...
-
Page 5: Operating Principle
Technical Specification Continued Inlet ½” BSP - female flexible hose Outlet Flow straightener Battery CRP2 lithium Battery powered Output 6V DC Protection IP67 Max. inlet pressure - static 8 bar Min. operating pressure - dynamic 1 bar Max. inlet temperature 70˚C Maximum basin thickness 26mm... -
Page 6: Connecting The Power Supply
Connecting the Power Supply 1 Check that the sensor window is clean and that there are no obstructions in front of the window. 2 The cover is supplied loosely assembled to the tap body and the retaining screws, battery box and battery are supplied separately. Cover Battery box Battery... -
Page 7: Sensor Range
Sensor Range The sensing range of the tap is pre-set and should not require adjustment. If needed, users can customise it between 5 and 25 cm ap proximately. Remove the top cover of the tap and disconnect the battery box. Wait for 30 seconds then reconnect the battery box to restore power to sensor. -
Page 8: Warranty
Once the object has been removed or the sensor cleaned, the tap will start working again. Aftercare • Inta taps have a high quality finish and should be treated with care. • An occasional wipe with a mild washing-up liquid on a soft damp cloth followed by a thorough rinsing is all that is required. -
Page 9: Fault Finding
Fault Finding Problem Cause Solution Check if service valve is Open service valve closed Exhausted battery - the LED Replace batteries blinks Check the voltage - where needed Disconnect and reconnect the battery Electrical problems No water flow from tap Check for cable damage Damaged sensor - assistance required... - Page 10 Notes: © Intatec Ltd 2022...
- Page 11 Notes: © Intatec Ltd 2022...
- Page 12 Please leave this Manual for the User To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk E &...
