Makeblock mBot Construction Manual page 7

Hide thumbs Also See for mBot:

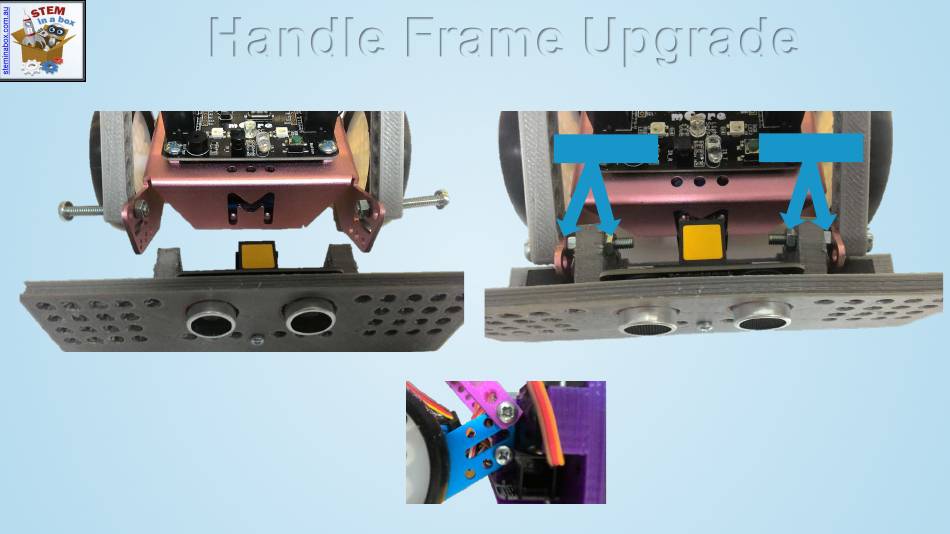

Handle Frame Upgrade

2xM4 Nuts

M4X20mm

Bolt

Use 2 x M4X30mm Bolts and

Use 2 x M4X16mm Bolts to

4 x M4 Nuts to secure handle

secure bumper to chassis to

and bumper to chassis

ensure no moving

(Left)

(Above & Above Right)
