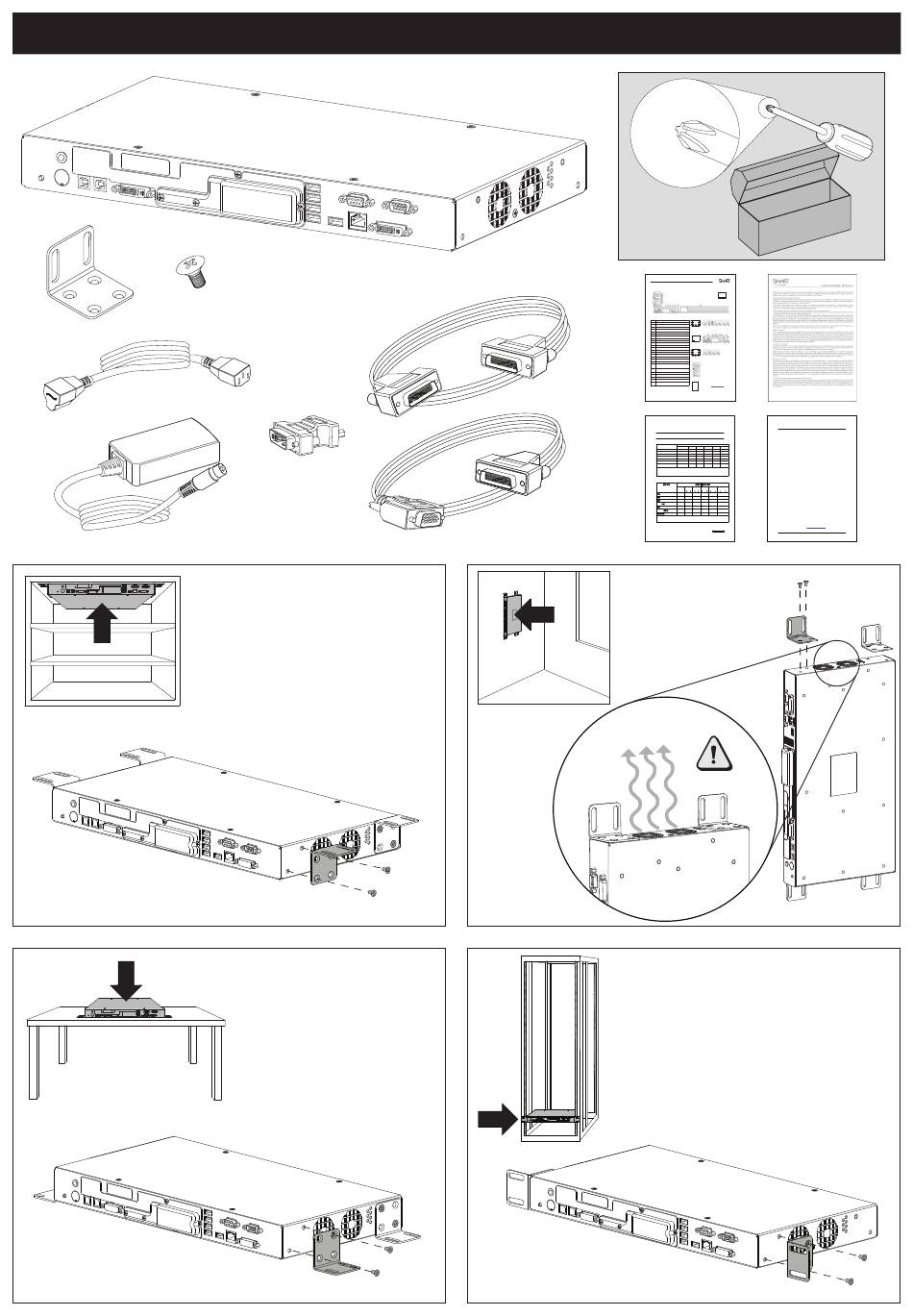

SMART VE220 Textless Install Instructions

×4
×8
SMART Hub VE220
×8
×4
×8
×4
#2
Using Your SMART Hub VE220
Toolbars
Whiteboard toolbar (full):
3
On-Screen
4
Location
23
24
1
25
12 14
5 6 7 8 9
2 3 4 10 11 13
L e g e n : d W i h e t b o a d r o t o b l a ( r m i n i m z i e d : )
No. Description
On-Screen
1 Opens and collapses the Menu toolbar. Locations
2 Minimize the Whiteboard toolbar.
15 16 4 14 12 14 15
3 Switch to Whiteboard mode.
4 Opens the computer input toolbar.
Computer input toolbar (full):
5 Select the pointer tool.
1 5 6 7 18 19 21
6 Write digital ink notes.
7 Erase digital ink notes. On-Screen
8 Create a new Whiteboard file. Location
9 Open an existing Whiteboard file.
10 Save the Whiteboard file to a USB storage device. 2 18 4 20 22
11 Attach the Whiteboard file to an e-mail message.
Computer input toolbar (minimized):
12 Insert a page.
13 Delete the current page.
On-Screen
14 Move through Whiteboard pages. Locations
15 Move the toolbar. 15 16 17 15
16 Restore the toolbar.
17 Switch to Whiteboard mode. Online Help
18 Clear digital ink from your display.
The SMART Hub VE220 includes
19 Freeze the image on your display. online Help. To view the online Help,
NOTE: This button does not pause the input device. press Menu, and then press Help on
the expanded menu toolbar.
20 Take a screen capture and insert it in a
Whiteboard page.
21 Set the next press to a right-click.
22 Opens the SMART Keyboard.
23 Opens the settings Menu.
Installation and User's Guide
24 Opens the online Help document.
25 Exits the whiteboarding session (shuts down the An installation and user's guide for the
SMART Hub VE220). Update with SMART Hub VE220 is available on our
User's Guide
Graphics support site. See document ××××××.
