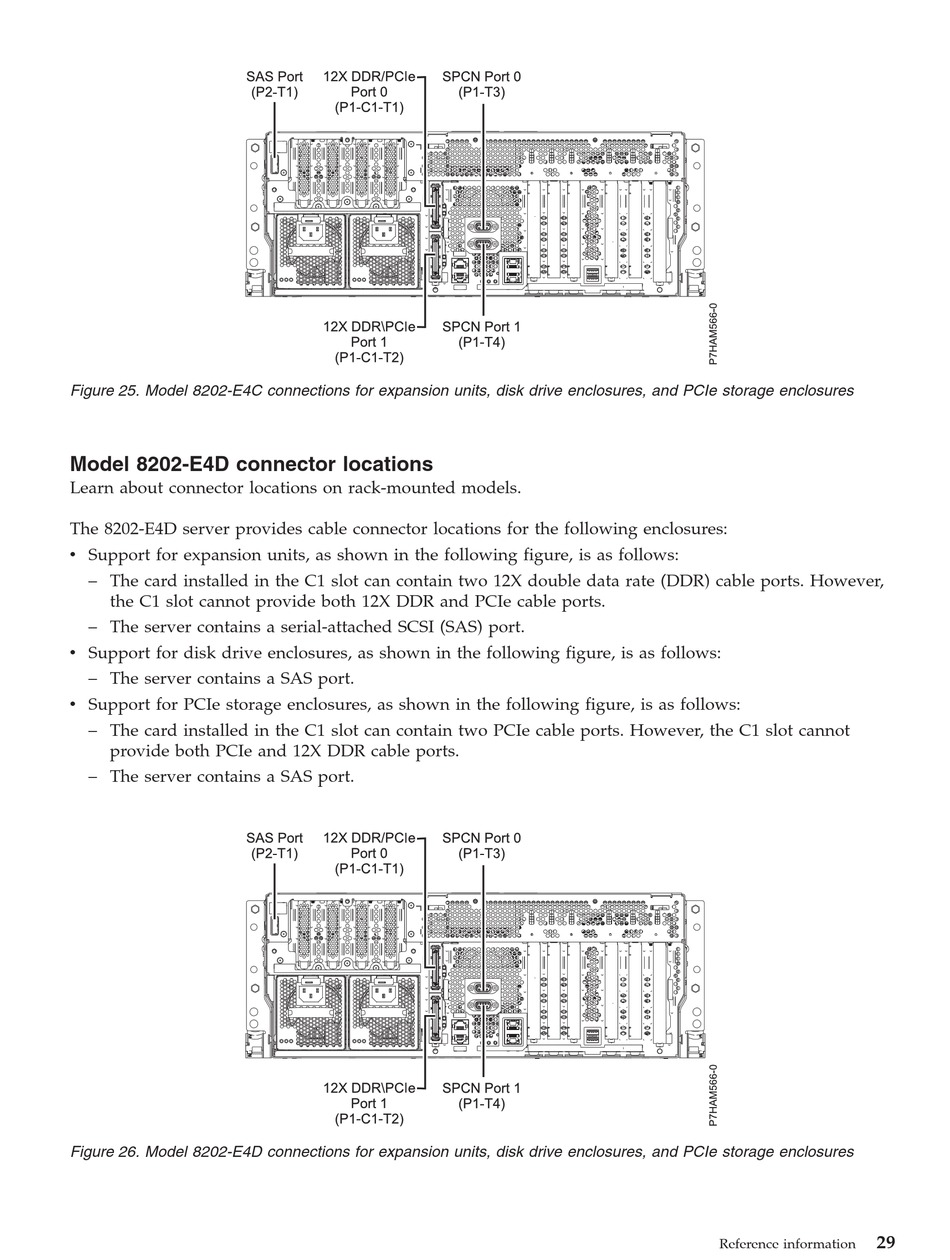

Figure 25. Model 8202-E4C connections for expansion units, disk drive enclosures, and PCIe storage enclosures

Model 8202-E4D connector locations

Learn about connector locations on rack-mounted models.
The 8202-E4D server provides cable connector locations for the following enclosures:
v Support for expansion units, as shown in the following figure, is as follows:
– The card installed in the C1 slot can contain two 12X double data rate (DDR) cable ports. However,
the C1 slot cannot provide both 12X DDR and PCIe cable ports.
– The server contains a serial-attached SCSI (SAS) port.
v Support for disk drive enclosures, as shown in the following figure, is as follows:
– The server contains a SAS port.
v Support for PCIe storage enclosures, as shown in the following figure, is as follows:
– The card installed in the C1 slot can contain two PCIe cable ports. However, the C1 slot cannot
provide both PCIe and 12X DDR cable ports.
– The server contains a SAS port.
Figure 26. Model 8202-E4D connections for expansion units, disk drive enclosures, and PCIe storage enclosures
29
