IBM High IOPS SSD PCIe Adapters
IBM System x at-a-glance guide
The IBM High IOPS SSD PCIe Adapters provide a new generation of ultra-high-performance storage
based on solid state device technology for System x and BladeCenter. These adapters are alternatives to
disk drives and are available in several sizes, from 160 GB to 1.2 TB. Designed for high-performance
servers and computing appliances, these adapters deliver throughput of up to 300,000 I/O operations per
second (IOPS), while providing the added benefits of lower power, cooling, and management overhead,
and a smaller storage footprint.

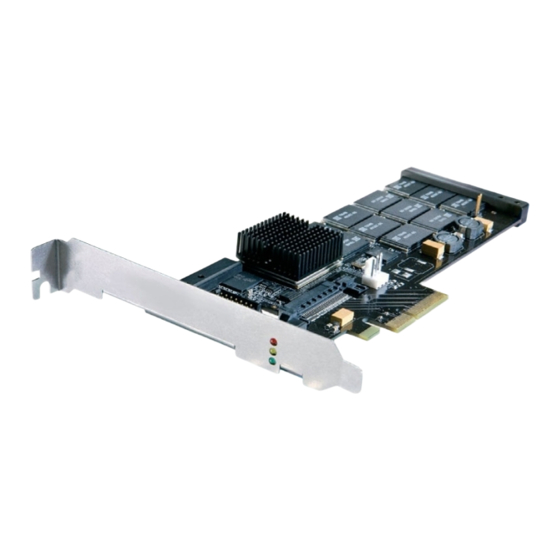

The IBM 320GB High IOPS SSD PCIe Adapter is shown in Figure 1.
Figure 1. The IBM 320GB High IOPS SS and MS Class SSD PCIe Adapter
Did You Know?
These adapters use flash memory as the storage medium, contain no moving parts, and do not have the
issues associated with vibration, noise, and mechanical failure. The adapters are built as block devices on
a PCIe bus with advanced wear-leveling, advanced ECC, and N+1 chip-level redundancy, providing
unparalleled reliability and efficiency.
IBM High IOPS SSD PCIe Adapters
1
Advertisement
Table of Contents
Related Manuals for IBM High IOPS SSD PCIe Adapters
Summary of Contents for IBM High IOPS SSD PCIe Adapters
- Page 1 IBM High IOPS SSD PCIe Adapters IBM System x at-a-glance guide The IBM High IOPS SSD PCIe Adapters provide a new generation of ultra-high-performance storage based on solid state device technology for System x and BladeCenter. These adapters are alternatives to disk drives and are available in several sizes, from 160 GB to 1.2 TB.
-
Page 2: Part Number Information
Documentation on a USB key Safety flyer Figure 2 shows the 640GB High IOPS SLC Duo Adapter for IBM System x Figure 2. 640GB High IOPS SLC Duo Adapter for IBM System x IBM High IOPS SSD PCIe Adapters... - Page 3 Business intelligence and analytics Decision support The IBM High IOPS SSD PCIe Adapters have the following features: Performance features : High performance - 230 times better IOPS. That means, for example, 97,014 IOPS at 4K block random reads versus 420 IOPS for a 15K RPM 146GB disk drive.
-
Page 4: Specifications
1.28TB High IOPS MLC Duo Adapter for IBM System x 81Y4527 PCIe 2.0 (Gen2) x8 Comparison Table 3 shows a comparison between the High IOPS SSD PCIe Adapters and solid-state drives. Table 3. Comparison High IOPS SSD PCIe Adapters Solid-state drive Model 1.28... -
Page 5: Physical Specifications
10° to 32°C (50° to 32°F) at 914 to 2,133 m (3,000 to 7,000 ft) Relative humidity: 20% to 80% (non-condensing) Warranty The IBM High IOPS SSD PCIe Adapters have a three-year limited warranty. IBM High IOPS SSD PCIe Adapters... -
Page 6: Supported Servers
Supported servers The IBM High IOPS SSD PCIe Adapters are supported in the IBM System x servers listed in Table 5. Table 5. Supported System x servers (Part 1) Adapter IBM 160GB High IOPS SS Class SSD 46M0877 IBM 320GB High IOPS MS Class SSD... -
Page 7: Related Publications
Supported operating systems The IBM High IOPS SSD PCIe Adapters support the following operating systems: Microsoft Windows Server 2003/2003 R2, Datacenter x64 Edition Microsoft Windows Server 2003/2003 R2, Enterprise x64 Edition Microsoft Windows Server 2003/2003 R2, Standard x64 Edition ... - Page 8 Web sites. The materials at those Web sites are not part of the materials for this IBM product and use of those Web sites is at your own risk.IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
- Page 9 Machines Corporation in the United States, other countries, or both. These and other IBM trademarked terms may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available on the Web at http://www.ibm.com/legal/copytrade.shtml...
