- Page 1 Manual Control Stereo Monitor Controller 2860 • IN 1 IN 2 MONO SP 1 SP 2 SP 3 Made in Germany 2Control Model 2860 Speaker and Headphone Monitoring Controller...
- Page 2 This document is the property of SPL and may not be copied or reproduced in any manner, in part or fully, without prior authorization by SPL.
-
Page 3: Table Of Contents
Content Symbols And Notes, Scope of Delivery ......Important Security Information ........Hook Up . -
Page 4: Symbols And Notes, Scope Of Delivery
Attention Do not attempt any alterations to this machine without the approval or supervision of SPL electronics GmbH. Doing so could nullify com- pletely any and all of your warranty/guarantee rights and claims to user support. -
Page 5: Important Security Information
Important Security Information Please note and retain this manual. Carefully read and follow all of the safety and operating instructions before you use the machine. Be dou- bly careful to follow all warnings and special safety instructions noted in this manual and on the unit. Connections: Only use the connections as described. - Page 6 Important Security Information Air circulation: Chassis openings offer ventilation and serve to protect the machine from overheating. NEVER cover or otherwise close off these openings. NEVER place the machine on a soft surface (carpet, sofa, etc.). Make sure to provide for a mounting space of 4-5 cm/2 inch- es to the sides of the unit when mounting the unit in racks or cabinets.
-
Page 7: Hook Up
Hook Up Be very careful to check that the rear chassis power selection switch is set to the correct local line voltage position before using the unit (230 V position: 220-240 V/50 Hz, 115 V position: 110-120 V/60 Hz)! When in doubt about a source, contact your dealer or a professional electrician. -
Page 8: Introduction

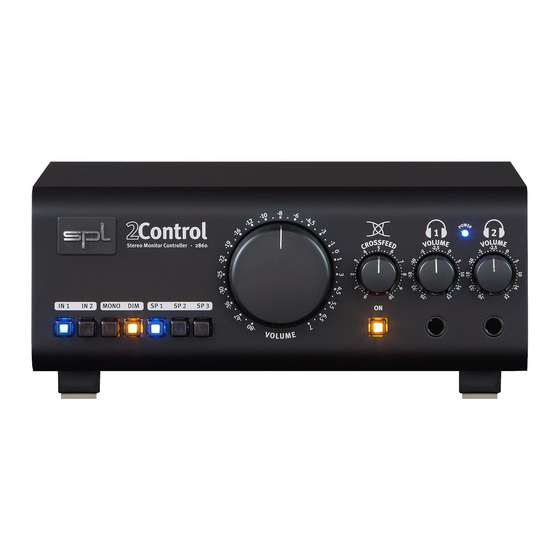

Introduction The 2Control combines loudspeaker and headphone monitoring in a compact, user-friendly and high quality control device. Any studio based on a digital audio workstation (DAW) can benefit from its impor- tant and essential monitoring functions. The concept of the 2Control is based on a dual-channel operation that allows for connection of two sources, two stereo speaker sets and two headphones. -
Page 9: Speakers Or Headphones
Introduction Crossfeed A new feature of the 2Control is the CROSSFEED control for both head- phone outputs, which was derived from the high-end headphone amplifier Phonitor. From their principle, headphones have the disad- vantage of producing a 180 degree stereo panorama – the CROSSFEED control can be used to adjust a stereo panorama that corresponds to a stereo speaker image. -
Page 10: Applications
Applications The speakers and headphones monitoring center The 2Control combines loudspeaker and headphone monitoring in a compact, user-friendly and high quality control device. Control near- field monitors, full-range speakers and headphone monitoring for two listeners from one central unit! Analog volume control for your DAW A majority of D/A converters and sound cards provide nothing in the way of analog level monitoring control, and this means the necessity of varying signal levels at the converter outputs. -
Page 11: Connections
Connections Wiring Two headphones 2nd stereo source (e. g. player) MAINS INPUT +4 dBu -10 dBV Sound Performance Lab 2Control– Model 2860 soundperformancelab.com MADE IN GERMANY SERIAL NUMBER C A U T I O N IN 2 IN 1 RISK OF ELECTRIC SHOCK D O N O T O P E N AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR WARNING: DO NOT EXPOSE THIS UNIT TO RAIN OR... -
Page 12: Rear Panel/Switches & Connections
Rear Panel/Switches & Connections Electrical Power Input Power Switch Sensitivity MAINS INPUT +4 dBu -10 dBV Sound Performance Lab 2Control– Model 2860 soundperformancelab.com MADE IN GERMANY SERIAL NUMBER C A U T I O N IN 2 RISK OF ELECTRIC SHOCK D O N O T O P E N AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR WARNING: DO NOT EXPOSE THIS UNIT TO RAIN OR... -
Page 13: Input Sensitivity In 2
Rear Panel/Switches & Connections Power Connection Connect the included power cord to the rear Mains Input. Transformer, power cord and case connection conform to VDE, UL and CSA require- ments. Power fuse ratings are 315 mA slow blow (220-240 volts) or 630 mA slow blow (110-120 volts). - Page 14 Rear Panel/Switches and Connections XLR Sockets Switch off the unit before you begin the process of making the first or any subsequent connections (rear panel power switch). Neglecting this can damage either or both your ears and your headphones! Connect the monitoring signal(s) to the XLR sockets of the first or sec- ond input IN 1 and IN 2 (A/D converter outputs of DAWs and interfaces or playback devices).
-
Page 15: Front Panel/Connections
Front Panel/Connections Control Stereo Monitor Controller 2860 • IN 1 IN 2 MONO SP 1 SP 2 SP 3 Made in Germany Headphone Connection Connect headphones to the standard 1/4" (TRS) stereo jack plugs on the front panel. The layout is: Tip =left channel, Ring = right channel, Sleeve = ground. Make sure that the plug is firmly seated for a solid connection. -
Page 16: Control Elements
Control Elements IN 1 and IN 2 Switch IN 1 IN 2 With IN 1 and IN 2 you select the source to listen to on speakers and headphones. Like all switches they illuminate after activation so that you can easily see which source is selected. Activation of both switch- es sums the input signals. -
Page 17: Calibration Of The Monitoring System
On the other hand, the power amp’s/active speaker’s input sensitivity should be raised if the 83 dB SPL point is reached far before the 60% control level. In cases where regulating power amp/active speaker in-... -
Page 18: Crossfeed
Control Elements Crossfeed The CROSSFEED control interacts with a complex analog circuitry that – simply put – serves to simulate the listening experience from loud- speakers on headphones. The ON switch below the control activates and deactivates the circuitry. CROSSFEED regulation is always applied to both headphone outputs simultaneously and is present at the head- phone outputs only (no effect on the speaker outputs). -
Page 19: Headphone Volume Controls 1 And 2, Optimal Control Range Of The Potentiometers
Control Elements Headphone Volume Controls 1 and 2 With these two detended controls you regulate the amplification of the headphone signals. Output and amplification specifications allow operation with a wide variety of headphones from ranges 30 to 600 Ohms. The 2Control provides two separate headphone amplifiers. This excludes mutual influences while VOLUME controls are independent from each other as well as from speaker volume. -
Page 20: Specifications
Specifications Inputs & Outputs Electronically balanced instrumentation amplifiers Input sockets: Output sockets: XLR, Stereo TRS Nominal input level: IN 1: +4 dBu, IN 2: +4 dBu/-10 dBV Input impedance: 22 kOhm Output impedance: 75 Ohm/Headphones: 22 Ohm Max. input level: 21,3 dBu Max. -
Page 21: Block Diagram
Block Diagram 2Control... -
Page 22: Copy Master: Recall Settings
Copy Master: Recall Settings 2Control... -
Page 23: Guarantee
Direct SPL product support requires product registration. Please fill out the guarantee card enclosed in the package legibly in printed let- ters and send it directly to SPL. Or use the online registration form that may be reached at www.soundperformancelab.com. - Page 24 Manual 2Control Model 2860 spl.info...
