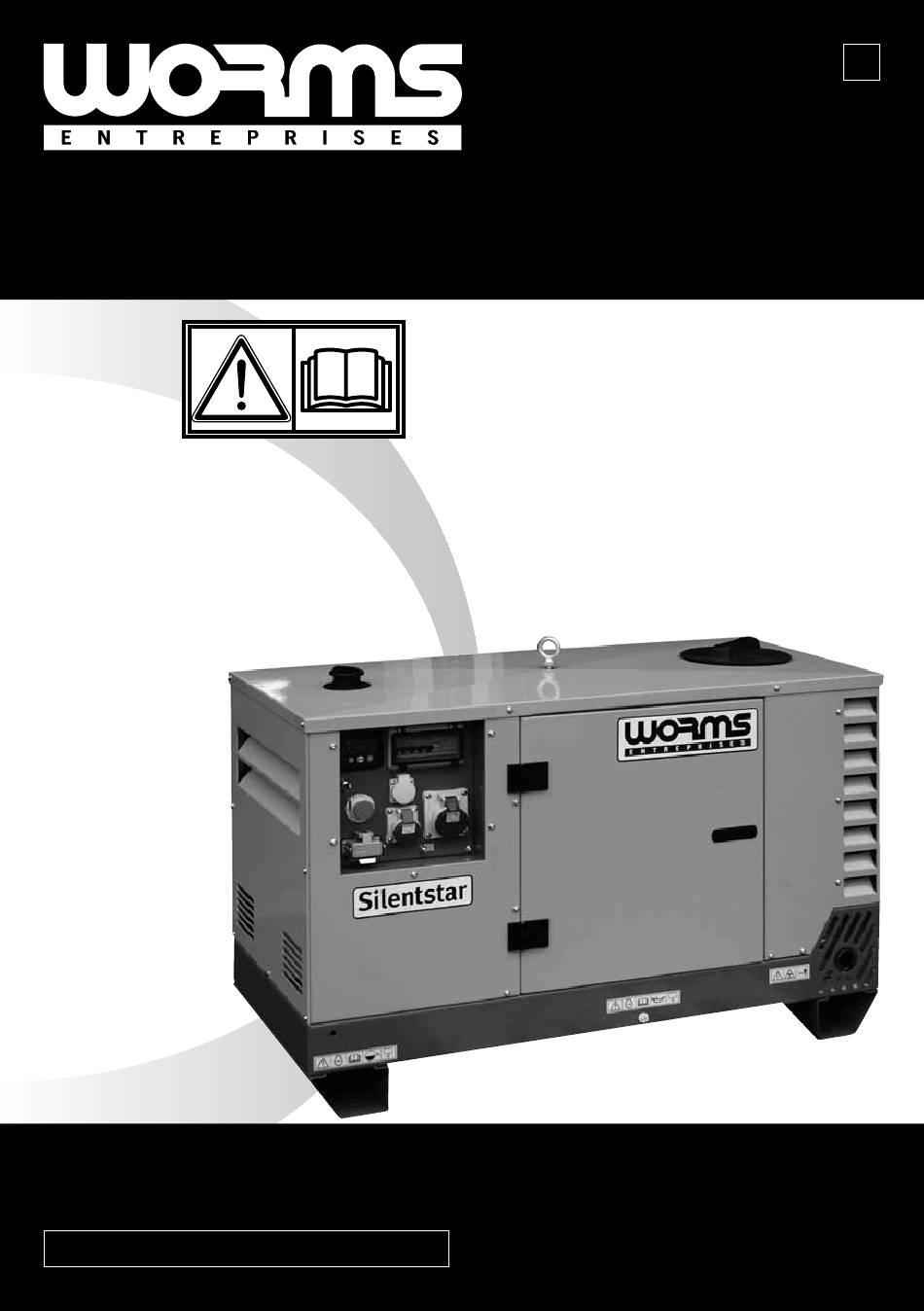

- Page 1 InstructIons for use GenerAtors MoDeLs sILentstAr 7 M AVr Yn 7 t AVr Yn 11000D M AVr Yn 11000D t AVr Yn 13000D M AVr Yn 13000D t AVr Yn Mu_02Ge_sILentstAr_7k_11k_13k_AVr_Yn_GB...
- Page 2 Thank you for purchasing a Robin generator. This manual covers operation and maintenance of the Robin generators. All information in this publica- tion is based on the latest production information available at the time of approval for printing. Pay special attention to statements preceded by the following words: Indicates an impending dangerous situation.
-
Page 3: Table Of Contents
suMMArY 1. sYMBoLs AnD MeAnInGs ............................PAGe 2. sAfetY precAutIons ............................. PAGe 3. specIfIcAtIons ................................PAGe 4. controL pAneL ................................PAGe 5. pre-operAtIon check ............................PAGe 6. operAtInG proceDures ..........................PAGe 7. stoppInG the GenerAtor ..........................PAGe 8. oIL sensor .................................. -
Page 4: Symbols And Meanings
1. sYMBoLs AnD MeAnInGs In accordance with the ISO standard, the specified symbols as shown in the following table are used for the products and this instruction manual. Read the operator’s instruction manual. Stay clear of the hot surface. exhaust gas is poisonous. Do not operate in an unventilated room. - Page 5 ON (Switch engine) Rated power (kW) ƒ r OFF (Switch engine) Rated frequency (Hz) Maximum site altitude above H max Alternating current sea-level (m) Direct current Continuous power (kW) Plus : positive polarity Rated voltage (V) Maximum ambient tempera- T max Minus : negative polarity ture (°C) STOP-position of a bistable push control...
-
Page 6: Safety Precautions
2. sAfetY precAutIons Do not operate the generator near gasoline or gaseous fuel because of the potential danger of explosion or fire. Do not fill the fuel tank with fuel while the engine is running. Do not smoke or use a naked flame near the fuel tank. Be careful not to spill fuel during refueling. - Page 7 Be extremely careful that all necessary electrical grounding procedures are followed during each and every use. Failure to do so can be fatal. Do not contact the generator to a commercial power line. Connection to a commercial power line may short circuit the generator and ruin it or cause electric shock hazard. Use the transfer switch for connecting to domestic circuit.
-
Page 8: Specifications
3. specIfIcAtIons... -
Page 9: Control Panel
4. controL pAneL Current leakage protection and circuit breaker earth connection Single phase socket 230 V - 10/16 A Single phase socket 230V - 16A Cee SCHUKO Starting and Control Module Connection for additional options (Frequencymeter / Voltmeter) Key Switch emergency Stop Button Single phase socket 230V –... -
Page 10: Pre-Operation Check
Replace the oil when this one is dirty. oil capacity Lower/Upper Level sILentstAr 7 M AVr Yn 1.3 / 2.9 L sILentstAr 7 t AVr Yn 1.3 / 2.9 L sILentstAr 11000D M AVr Yn 1.5 / 3.2 L sILentstAr 11000D t AVr Yn 1.5 / 3.2 L... - Page 11 If it is missing some cooling liquid, unscrew the oil filling cap (2), fill and adjust with clean liquid, when the engine is cold. cooling system Liquid sILentstAr 7 M AVr Yn sILentstAr 7 t AVr Yn sILentstAr 11000D M AVr Yn 5 Liters sILentstAr 11000D t AVr Yn...
-
Page 12: Check Fuel Level
Make sure the Diesel filter is filled. If there is not enough diesel, it is necessary to drain the air (see the part below). Diesel tank capacity sILentstAr 7 M AVr Yn sILentstAr 7 t AVr Yn sILentstAr 11000D M AVr Yn 40 Liters sILentstAr 11000D t AVr Yn... - Page 13 • Make sure you review each warning in order to prevent fire hazard. • Do not refill tank while engine is running or hot. • Be careful not to admit dust, dirt, water or other foreign objects into fuel. • Wipe off spilt fuel thoroughly before starting engine.
-
Page 14: Operating Procedures
• Make sure you review each warning in order to prevent fire hazard. • Keep area clear of in flammables or other hazardous materials. • Keep generator at least 3 feet (1 meter) away from buildings or other structures. • Only operate generator in a dry, well ventilated area. - Page 15 • Make sure the diesel filter and water filter are in “O” position.. • Turn the key in “ON” position. During this time, the display turns on (see below the description of the display). • Press “START” button to start the engine and let it run for few minutes with no load.
-
Page 16: Using Electric Power
6.3. usInG eLectrIc power Ac AppLIcAtIon This generator is thoroughly tested and adjusted in the factory. If the generator does not produce the specified voltage, consult your nearest Worms dealer or service shop. • Turn off the switch(es) of the electrical appliance(s) before connecting to the generator. -
Page 17: Stopping The Generator
When the circuit breaker or no-fuse breaker turns off during operation, the generator is overloaded or the appliance is defective. Stop the generator immediately, check the appliance and/or generator for overloading or detect and have repaired as necessary by Worms dealer or service shop. 7. stoppInG the GenerAtor... -
Page 18: Oil Sensor
8. oIL sensor • The oil sensor detects the fall in oil pressure in the crankcase and automatically stops the engine when the oil pressure falls below a predetermined value. • When engine has stopped automatically, turn off the key switch of the generator, and check the oil level. - Page 19 sILentstAr 11000D M AVr Yn AVr Yn AVr Yn Bulb / Halogen / Heating 5500 W 1800 W / phase 8800 W Neons - Low consumption Bulb 5500 W 1800 W / phase 8800 W Hand Tools without variator 3500 W 1200 W / phase 5500 W Compressor...
-
Page 20: Maintenance Schedule
10. MAIntenAnce scheDuLe note • Maintenance operations require trained and qualified personel. • The maintenance schedule is given as a guide. Under severe conditions, the frequency of maintenance must be increased. • Before changing the oil, check for a suitable way to dispose of the old oil. Do not pour it down sewage drains, onto garden soil or into open streams. -
Page 21: How To'' Maintenance
11. ‘‘how-to’’ MAIntenAnce 11.1. enGIne oIL chAnGe Change engine oil every 250 hours. (For new engine, change oil after 50 hours.) Fire forbidden. • Place a receptacle under the drain oil. • Unscrew the oil drain plug (1). • Take out the oil drain pipe (2). •... - Page 22 The air filter has 2 elements: one main element in carton (2) and a second one with a special tissue, a central cylinder in plastic material, and one radial seal in polyurethan foam (3). • Then, put back the filter elements inside the plastic air filter after maintenance or replacement.
- Page 23 11.3. check BAtterY VoLtAGe BAtterY 11.4. DrAIn the cooLInG pIpes The pipes of the cooling liquid must be drained, cleaned and filled every 1000 hours of working. • Place a receptacle under the engine to get the used cooling liquid. •...
-
Page 24: Preparation For Storage
12. prepArAtIon for storAGe The following procedures should be followed prior to storage of your generator for periods of 6 months or longer: • Drain fuel from fuel tank carefully by disconnecting the fuel line. Diesel left in the fuel tank will eventually deteriorate making engine-starting difficult. -
Page 25: Troubleshooting
13. trouBLeshootInG When generator engine fails to start after several attempts, or if no electricity is available at the output socket, check the following chart. If your generator still fails to start or to generate electricity, contact your nearest Robin dealer shop for further information or corrective procedures. - Page 28 Mu_02Ge_sILentstAr_7k_11k_13k_AVr_Yn_GB 20110829 head office Parc Gustave eiffel - 1 Bd. de Strasbourg - Bussy Saint Georges - 77607 Marne la Vallée - Cedex 3 - FRANCe standard commercial and spare parts service After sales service TeL. +33 (0) 1 64 76 29 50 TeL.
