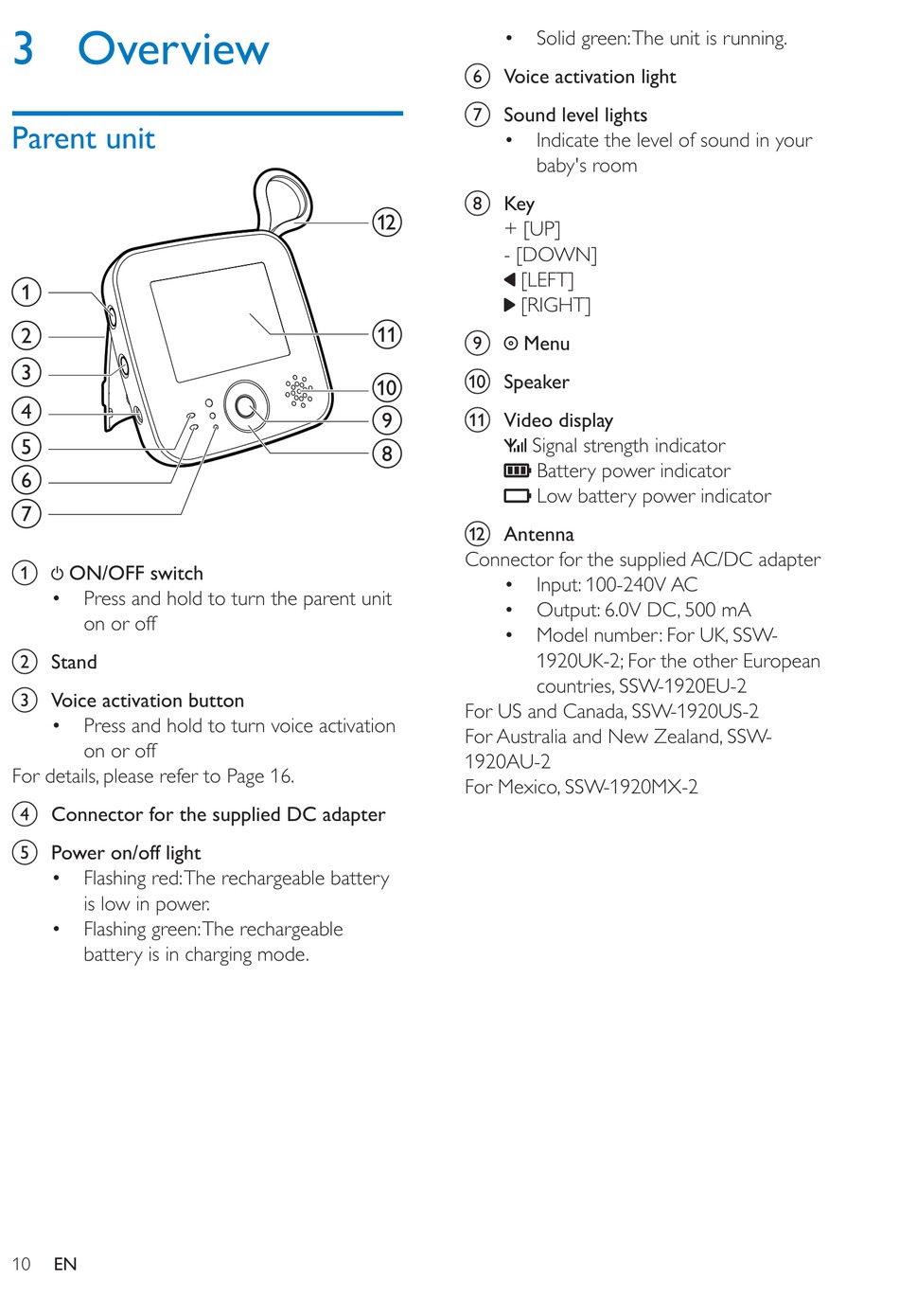

3 Overview

Parent unit

a
b
c
d
e
f
g
a
ON/OFF switch
‡ Press and hold to turn the parent unit
on or off
b Stand
c Voice activation button
‡ Press and hold to turn voice activation
on or off
For details, please refer to Page 16.
d Connector for the supplied DC adapter
e Power on/off light
‡ Flashing red: The rechargeable battery
is low in power.
‡ Flashing green: The rechargeable
battery is in charging mode.
10 EN
‡ Solid green: The unit is running.
f Voice activation light
g Sound level lights
‡ Indicate the level of sound in your
baby's room
h Key
l
+ [UP]
- [DOWN]
[LEFT]
[RIGHT]
k
i
Menu
j Speaker
j
i
k Video display
Signal strength indicator
h
l Antenna
Connector for the supplied AC/DC adapter
‡ Input: 100-240V AC
‡ Output: 6.0V DC, 500 mA
‡ Model number: For UK, SSW-
1920UK-2; For the other European
countries, SSW-1920EU-2
For US and Canada, SSW-1920US-2
For Australia and New Zealand, SSW-
1920AU-2
For Mexico, SSW-1920MX-2
Battery power indicator
Low battery power indicator
