2 ADULTS REQUIRED FOR ASSEMBLING
If you have any questions regarding assembly or if you are missing
parts, do not return this item to Retailer Store
Please call our customer service number and have your instructions and
parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 am - 4:30 pm Monday to Friday
or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
or e-mail your request to
parts@whalenfurniture.com
MODEL No.: PRO-5
LOT No.:
DATE OF PURCHASE:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 1
Advertisement
Related Manuals for VAS Furniture Mfg. Inc. Pro-5
Summary of Contents for VAS Furniture Mfg. Inc. Pro-5
- Page 1 24 hours a day, 7 days a week for product assistance at www.whalenfurniture.com or e-mail your request to parts@whalenfurniture.com MODEL No.: PRO-5 LOT No.: DATE OF PURCHASE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

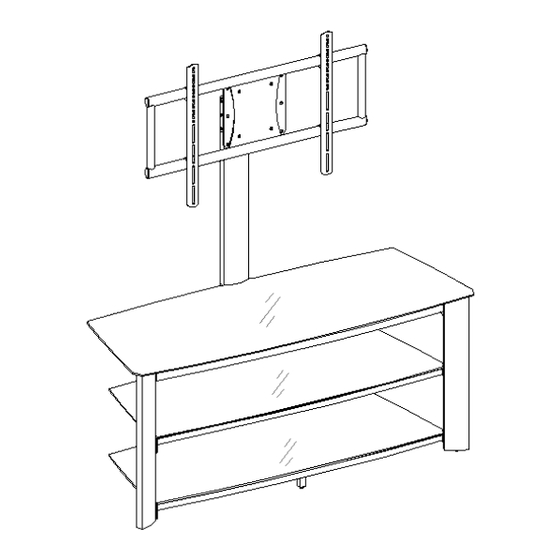

- Page 2 Customer Service: 1-866-942-5362 8:30 a.m. - 4:30 p.m. PST Monday to Friday www.whalenfurniture.com MANUFACTURER: VAS FURNITURE CATALOG: Flat Panel Console with Swinging Floater (PRO-5) DATE OF MANUFACTURE: April, 2009 MADE IN CHINA FITS UP TO MOST 56” FLAT PANEL TV’S...
- Page 3 Parts List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. A-Top Shelf Frame (1) B- Middle Stretcher (1) C- Bottom Shelf Frame (1) D- Spine (1) E- Left Leg (1) F- Right Leg (1) G- Top Glass (1) H- Glass Shelf (2) I- Front Left Support...
- Page 4 Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. (1)- 5/8” Bolt (48+2 extra) (2)- 3/4” Bolt (4+1 extra) (3)- Lock Washer (50+2 extra) (4)- Flat Washer (5)-Suction Cup (6)- Large Flat Washer (46+2 extra) (22+1 extra) (8+1 extra)
- Page 5 Tools Required: Allen Wrench (provided), Open Wrench (provided) and Phillips Screwdriver. Assembly Instructions Note: Please do not fully tighten all bolts until you finish assembling all parts, then go back and fully tighten all bolts, this will make it easier during assembly of unit. 1.
- Page 6 Assembly Instructions 4. Attach Left Leg and Right Leg (E & F) to the Shelf Frames (A & C) using 5/8” Bolts (1) with Washers (3 & 4) through the end bracket holes as shown in detail #2. DO NOT tighten the bolts.
- Page 7 Assembly Instructions 6. Stand the unit upright. 7. For a stable structure, align and attach the Front Left & Right Support (I & J) in place to connect the Top Shelf Frame (A) with both Legs (E & F) using 5/8” Bolts (1) with Washers (3 &...
- Page 8 Assembly Instructions 9. Go back and securely tighten all the bolts with Allen Wrench provided. 10. In case of uneven floor, Floor Levelers are provided at the bottom of Legs (E & F) and front rail of Bottom Shelf Frame (C). Simply tilt the unit back and raise or lower floor leveler by hand to correct tilting.
- Page 9 Assembly Instructions to attach Deluxe Bracket w/ VESA Plate 11. Attach Deluxe Bracket with VESA Plate (M) to the top of Spine (D) using six 5/8” Bolts (1) with Lock Washers & Flat Washers (3 & 4) as shown in detail #5. Parts Required Tools Required M –...
- Page 10 Assembly Instructions Note: There are two mounting options included in this swinging floater TV console: 1. VESA Plate; 2. XYZ Mounting Frame to accommodate random hole patterns. 12. For LCD 32” or smaller you can mount your LCD directly to the Deluxe Bracket with VESA Plate (M), using the appropriate Bolts through the Lock Washers and Flat Washers through the proper holes of VESA Plate and then into the TV.
- Page 11 Assembly Instructions Note: For Plasma and LCD TVs larger than 32”, you must use the XYZ Mounting Frame (N) provided. The XYZ Mounting Frame will accommodate large LCD without VESA Hole Patterns and Plasma TV’s with Random Hole Patterns. 13. Attach XYZ Mounting Frame (N) to the Deluxe Bracket with VESA Plate (M), using 3/4” Bolts (2) with Large Flat Washers (6) through the mounting plate and appropriate hole set on VESA Plate, through the other Large Flat Washers (6) and Lock Washers (3) then secure with Nut (7), as shown in detail #7.
- Page 12 Mounting Monitor Bracket to a television with a flat back Note: For televisions with a curved back or recessed back proceed directly to step #17. 14. Please refer to detail #8 & 8A to determine the correct size bolt your TV requires by several try.
- Page 13 Mounting Monitor Bracket to a television with a curved / recess back 17. Please refer to detail #9 to determine the correct size bolt your TV requires by several try. If you are unable to find the correct bolt consult a local hardware store. 18.
-
Page 14: 5/8" Bolt
Assembly Instructions 20. Now you can hang your Plasma onto the XYZ Mounting Frame (N). For additional safety please screw two 5/8” Bolts (1) into the upper hooks of Monitor Brackets (O) to prevent TV from falling. See detail #10. Parts Provided Tools Required (1) –... - Page 15 Assembly Instructions 21. Insert the Suction Cups (5) into the top holes of Top & Bottom Shelf Frames (A & C) and Middle Stretcher (B). Make sure they go all the way in. See detail #11. 22. Insert the Top Glass & Glass Shelves (G & H) in place. Make sure the Glass Shelf sits correctly and goes all the way against the Spine to prevent falling easily and getting damage.
-
Page 16: Tools Required
TIPPING RESTRAINT HARDWARE Note: We have included one Tipping Restraint Hardware bag for this Unit. When properly installed, this restraint can provide protection against the unexpected tipping of the Unit due to small tremors, bumps or climbing. We strongly recommend mounting this hardware to a wall stud and your Unit when assembling and using your console. - Page 17 IF YOU REQUIRED TO ORDER PARTS PLEASE USE THE LIST BELOW Flat Panel Console with Swinging Floater (PRO-5) *PRO-5-1-S Spine *PRO-5-27-M8LW M8 Lock Washer *PRO-5-2-TG Top Glass *PRO-5-28-M4x12B M4 x 12 Bolt *PRO-5-3-GS Glass Shelf *PRO-5-29-M4x30B M4 x 30 Bolt...
