Pressure System Controller
Installation and Operating
NOTE: Prior to installation remove the inlet and outlet
pipe transport plugs & associated seals from the suction
and/or discharge ports.
WARNING: The Torrium2 controller, pump and associated pipework operate
under pressure. Under no circumstances should the Torrium2 controller, pump
or associated pipework be disassembled unless the internal pressure of the
unit has been relieved. Failure to observe this warning will expose persons to
the possibility of personal injury and may also result in damage to the pump,
pipework or other property.
WARNING: Failure to follow these instructions and comply with all applicable codes
may cause serious bodily injury and/or property damage.
Please pass these instructions on to the operator of this equipment.
Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Davey Torrium 2 TT45
Summary of Contents for Davey Torrium 2 TT45
- Page 1 Pressure System Controller Installation and Operating Instructions NOTE: Prior to installation remove the inlet and outlet pipe transport plugs & associated seals from the suction and/or discharge ports. WARNING: The Torrium2 controller, pump and associated pipework operate under pressure. Under no circumstances should the Torrium2 controller, pump or associated pipework be disassembled unless the internal pressure of the unit has been relieved.
- Page 2 Installation and Operating Instructions please contact your Davey dealer or the appropriate Davey office as listed on the back of this document. Your Torrium2 controller is an electronic flow control device – a Davey designed product that enables the use of a highly efficient pump design and offers the following benefits:–...

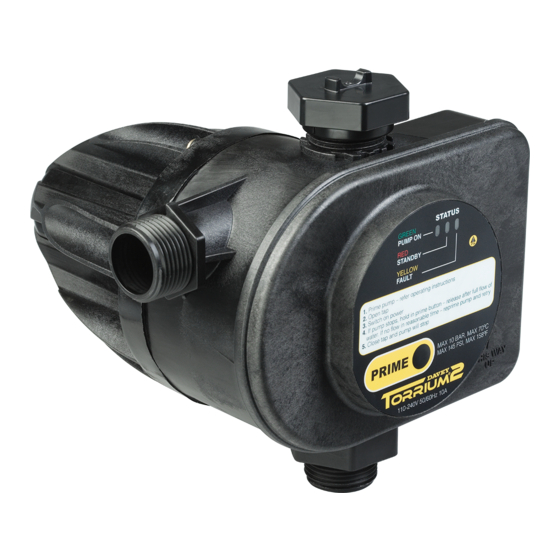

- Page 3 The Torrium2 controller fits onto the outlet of the pump. The Torrium2 controller is designed to fit in place of a Davey Torrium or Hydrascan, a Presscontrol or can be installed to replace another form of controller eg. pressure switch.
- Page 4 For pumps with a 1” male outlet (e.g. XP350, XP450, XJ50, XJ70 and XJ90) a adaptor socket (P/No. 44992) is required. When used with a Davey XP, or XJ model the o-rings included with the adapter socket will seal this fitting. If used on other models thread sealing tape may be needed.
- Page 5 If you use the vertical outlet instead or as well, you need to consider access to the inbuilt check valve in the Torrium. Davey suggest you use a flexible connection and / or union connection to allow for ease of access to the check valve.
- Page 6 These terminations will usually be to suit the Davey X frame motor connections. There will be three terminations for connection to the pump motor, an Active, a Neutral and an Earth connection.
- Page 7 See the underside of the capacitor cover for a wiring diagram. The exception to this rule is where the special four wire Hydrascan fitted to the M series models or USA models is to be replaced. In such a case consult your Davey Dealer for assistance.
- Page 8 The pumping of abrasive materials will cause damage to the Torrium2 controller which will then not be covered by the guarantee. NOTE: For protection, the Davey pump motors are fitted with an automatic reset thermal overload, constant tripping of this overload indicates a problem e.g. low voltage at pump, excessive temperature (above 50°C) in pump enclosure.
- Page 9 1. Power not connected or no power available from supply outlet. d) MOTOR STOPS - YELLOW STATUS INDICATOR LIGHT IS ILLUMINATED 1. Motor ”over temperature” cut-out tripped. Consult Davey dealer. 2. Motor not free to turn - e.g. a jammed impeller. Consult Davey dealer.
- Page 10 This is more likely to occur when boosting mains pressure. Should this occur, re-prime your pump unit. Should this not prove successful, it is likely you have a blockage in the pump. You should contact your Davey dealer for assistance.
- Page 11 2. Davey products are warranted, subject to the exclusions and limitations below, to the original user only to be free of defects in material and workmanship for a period of 36 months from date of installation or sale with a proof of a receipt, but no more than 48 months from the date of manufacture.
- Page 12 To the fullest extent permitted by law Davey disclaims any warranties regarding the accuracy, completeness or reliability of App data. Davey is not responsible for any direct or indirect loss, damage or costs to the User arising from its reliance on internet connectivity. The User indemnifies Davey against any claims or legal actions from them or others relying on internet...
