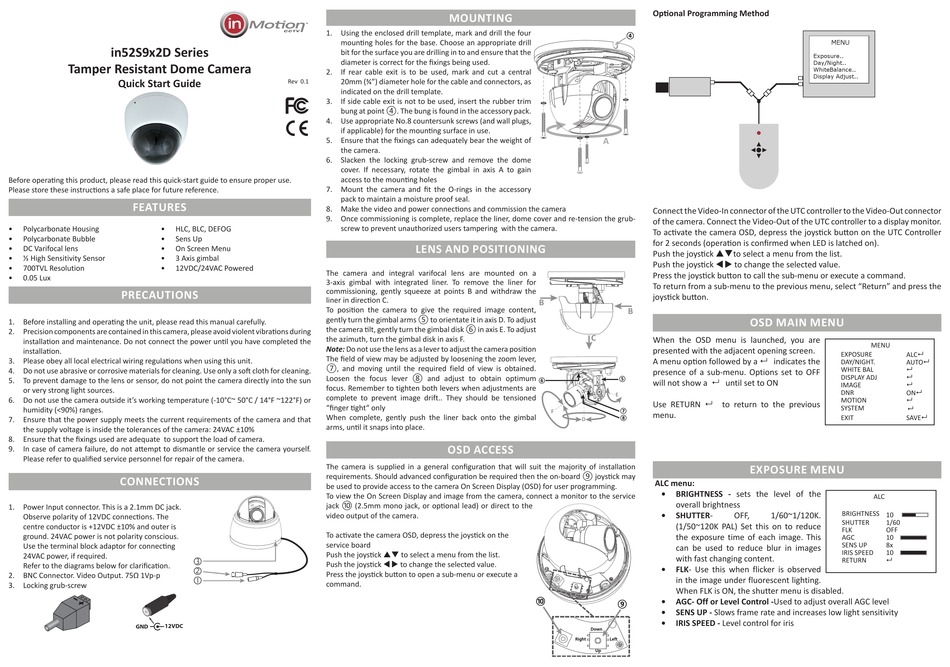

InMotion in52S9x2D Series Quick Start Manual

in52S9x2D Series
Tamper Resistant Dome Camera
Quick Start Guide
Before operating this product, please read this quick-start guide to ensure proper use.
Please store these instructions a safe place for future reference.
FEATURES
• Polycarbonate Housing • HLC, BLC, DEFOG
• Polycarbonate Bubble • Sens Up
• DC Varifocal lens • On Screen Menu
• ⅓ High Sensitivity Sensor • 3 Axis gimbal
• 700TVL Resolution • 12VDC/24VAC Powered
• 0.05 Lux
PRECAUTIONS
1. Before installing and operating the unit, please read this manual carefully.
2. Precision components are contained in this camera, please avoid violent vibrations during
installation and maintenance. Do not connect the power until you have completed the
installation.
3. Please obey all local electrical wiring regulations when using this unit.
4. Do not use abrasive or corrosive materials for cleaning. Use only a soft cloth for cleaning.
5. To prevent damage to the lens or sensor, do not point the camera directly into the sun
or very strong light sources.
6. Do not use the camera outside it's working temperature (-10°C~ 50°C / 14°F ~122°F) or
humidity (<90%) ranges.
7. Ensure that the power supply meets the current requirements of the camera and that
the supply voltage is inside the tolerances of the camera: 24VAC ±10%
8. Ensure that the fixings used are adequate to support the load of camera.
9. In case of camera failure, do not attempt to dismantle or service the camera yourself.
Please refer to qualified service personnel for repair of the camera.
CONNECTIONS
1. Power Input connector. This is a 2.1mm DC jack.
Observe polarity of 12VDC connections. The
centre conductor is +12VDC ±10% and outer is
ground. 24VAC power is not polarity conscious.
Use the terminal block adaptor for connecting
24VAC power, if required.
Refer to the diagrams below for clarification.
2. BNC Connector. Video Output. 75Ω 1Vp-p
3. Locking grub-screw
12VDC
GND
1. Using the enclosed drill template, mark and drill the four
mounting holes for the base. Choose an appropriate drill
bit for the surface you are drilling in to and ensure that the
diameter is correct for the fixings being used.
2. If rear cable exit is to be used, mark and cut a central
20mm (¾") diameter hole for the cable and connectors, as
Rev 0.1
indicated on the drill template.
3. If side cable exit is not to be used, insert the rubber trim
bung at point ④. The bung is found in the accessory pack.
4. Use appropriate No.8 countersunk screws (and wall plugs,
if applicable) for the mounting surface in use.
5. Ensure that the fixings can adequately bear the weight of
the camera.
6. Slacken the locking grub-screw and remove the dome
cover. If necessary, rotate the gimbal in axis A to gain
access to the mounting holes
7. Mount the camera and fit the O-rings in the accessory
pack to maintain a moisture proof seal.
8. Make the video and power connections and commission the camera
9. Once commissioning is complete, replace the liner, dome cover and re-tension the grub-
screw to prevent unauthorized users tampering with the camera.
The camera and integral varifocal lens are mounted on a
3-axis gimbal with integrated liner. To remove the liner for
commissioning, gently squeeze at points B and withdraw the
liner in direction C.
To position the camera to give the required image content,
gently turn the gimbal arms ⑤ to orientate it in axis D. To adjust
the camera tilt, gently turn the gimbal disk ⑥ in axis E. To adjust
the azimuth, turn the gimbal disk in axis F.
Note: Do not use the lens as a lever to adjust the camera position
The field of view may be adjusted by loosening the zoom lever,
⑦, and moving until the required field of view is obtained.
Loosen the focus lever ⑧ and adjust to obtain optimum
focus. Remember to tighten both levers when adjustments are
complete to prevent image drift.. They should be tensioned
"finger tight" only
When complete, gently push the liner back onto the gimbal
arms, until it snaps into place.
The camera is supplied in a general configuration that will suit the majority of installation
requirements. Should advanced configuration be required then the on-board ⑨ joystick may
be used to provide access to the camera On Screen Display (OSD) for user programming.
To view the On Screen Display and image from the camera, connect a monitor to the service
jack ⑩ (2.5mm mono jack, or optional lead) or direct to the
video output of the camera.
To activate the camera OSD, depress the joystick on the
service board
Push the joystick  to select a menu from the list.

Push the joystick  to change the selected value.

Press the joystick button to open a sub-menu or execute a

command.
MOUNTING
LENS AND POSITIONING
B
C
⑥
F
D
OSD ACCESS
⑩
Down
Right
Up
Optional Programming Method
④
A
Connect the Video-In connector of the UTC controller to the Video-Out connector
of the camera. Connect the Video-Out of the UTC controller to a display monitor.
To activate the camera OSD, depress the joystick button on the UTC Controller
for 2 seconds (operation is confirmed when LED is latched on).
Push the joystick to select a menu from the list.
Push the joystick   to change the selected value.
Press the joystick button to call the sub-menu or execute a command.
To return from a sub-menu to the previous menu, select "Return" and press the
joystick button.
B
OSD MAIN MENU
When the OSD menu is launched, you are
presented with the adjacent opening screen.
A menu option followed by a  indicates the
presence of a sub-menu. Options set to OFF
⑤
will not show a  until set to ON
E
Use RETURN  to return to the previous
⑦
menu.
⑧
EXPOSURE MENU
ALC menu:
• BRIGHTNESS - sets the level of the
overall brightness
• SHUTTER- OFF, 1/60~1/120K.
(1/50~120K PAL) Set this on to reduce
the exposure time of each image. This
can be used to reduce blur in images
with fast changing content.
• FLK- Use this when flicker is observed
in the image under fluorescent lighting.
When FLK is ON, the shutter menu is disabled.
• AGC- Off or Level Control -Used to adjust overall AGC level
⑨
• SENS UP - Slows frame rate and increases low light sensitivity
• IRIS SPEED - Level control for iris
Left
MENU
Exposure..
Day/Night..
WhiteBalance..
Display Adjust..
MENU
EXPOSURE ALC
DAY/NIGHT. AUTO
WHITE BAL

DISPLAY ADJ 
IMAGE 
DNR ON
MOTION 
SYSTEM

EXIT SAVE
ALC
BRIGHTNESS 10
SHUTTER 1/60
FLK OFF
AGC 10
SENS UP 8x
IRIS SPEED 10
RETURN 
