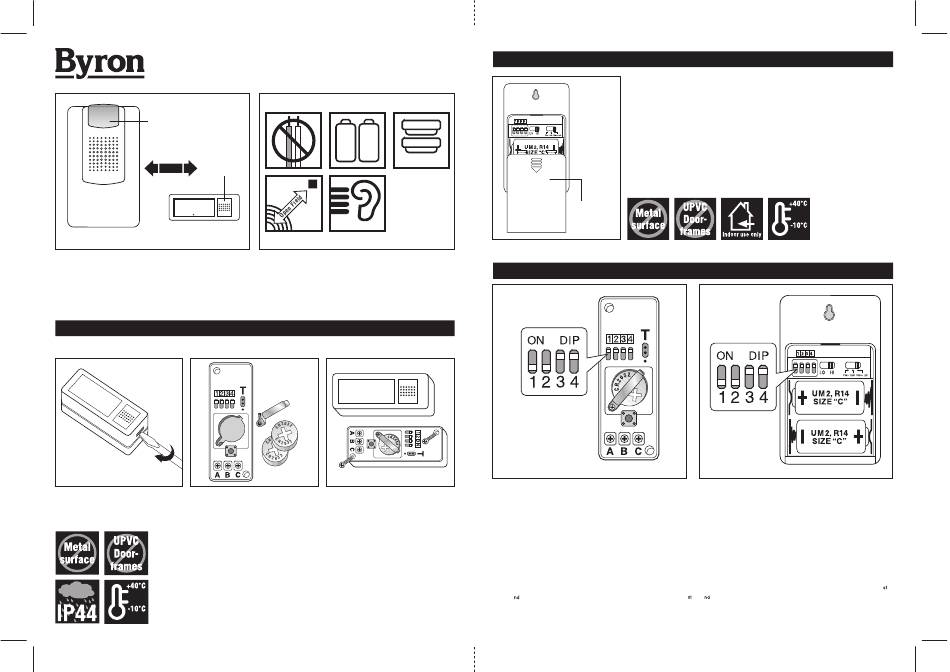

Byron TX12 Quick Start Manual

Model No. TX12 & TX14
Wire Free Portable Door Chime Kit with
Strobe Light TX12 & TX14
Strobe Light
Operating
Distance
Push Button
200m
Push Button Unit
Door Chime Unit
No wiring is required for this Wire Free Door Chime Kit. When the Push Button is pressed, it sends a wire free signal to
the door chime unit that activates the chime. As the operating range is up to 200 metres (640 ft. approx. - in open field),
you can mount or take the door chime virtually anywhere in the home. However, the transmission range of the wire free
signal will be reduced if the signal is transmitted through a number of walls or ceilings. Metal and UPVC doorframes
will also reduce the operating range.
Push Button Unit
2 x 3volt Lithium batteries (CR2032) have already been installed. Your Push Button is ready to use.
To Replace
The Batteries
Remove the back of the case by Remove the locking screw from the
pushing in the tab on the side with battery fastener. Insert 2 x 3 volt
a small, flat screw driver. CR2032 Lithium batteries (Byron
SX-100) in the battery compartment,
ensuring the battery polarity matches
the internal markings, then tighten the
screw on the battery fastener to hold
the batteries firm in it's compartment.
Batteries Batteries
Wire Free
Required Included
C C
UM2 UM2
R14 R14
CR2032
200
85db
Operating Loudness
Distance
CR2032 x 2
Using the two holes on the back of
Push Button as a template, mark
the fixing position for the unit. Drill
holes and fit wall plugs and secure
the Push Button unit with screws
(self tapping N3 x 16mm screw).
Door Chime with Strobe Light Unit
Slide open the battery compartment door. Insert 2 x 1.5 volt alkaline batteries
("C", UM2, R14 - not included) into the battery compartment, ensuring the
battery polarity matches the internal markings. It will beep twice to indicate that
it is ready for new operation code registration (Please see Digital Code Set Up).
Close the battery door, then the chime unit is ready to use.
It has a slotted hang hole on the rear of the unit, this will enable the chime unit
to be hooked onto a screw and easily removed or relocated to another room.
Drill hole and fit wall plug (if fixing to masonry) and screw (self-tapping 3 x
16mm screw) to fixing position. Leave a gap of 3mm between the screw head
and the wall. Locate the keyhole slot on the back of the unit over the screw.
Battery
Compartment

Digital Code Set Up

Push Button
Eg.
The unit comes from the factory on a pre-set radio frequency digital code. However, should your door chime
activate intermittently for no reason at all, it is possible that a similar unit is operating nearby on the same
frequency digital code. The encoded frequency of the Push Button (transmitter) and be changed to avoid this
problem.The Door Chime unit is equipped with advanced self-learning operation code ability therefore no setting
is needed.
1. Push Button unit: Remove the back of the case by pushing in the tab on the bottom with a small, flat
screwdriver.
Door Chime Unit: Slide open the battery compartment.
2. There is a 4 position dipswitch marked 1,2,3 & 4. Use an insulated tool to to alter the dip switch levers to the
"ON/Off" position, which can be altered to achieve a total of sixteen (16) possible digital codes.
3. Select any combination ensuring it is set to the same code on both Push Button and Door Chime units. E.g. If the 1
& 2 dipswitches are down in your Push Button, then 1 & 2 dipswitches must be down in your chime unit.
4. Test to ensure correct operation before final installation.
Chime
Unit
Eg.
