Table of Contents

SIDE-POWER
Thruster Systems
Installation and user's manual
EN
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
Tel: +47 69 30 00 60
Fax: +47 69 30 00 70
S-linkControl Panel
v1.0.5
w w w . s i d e - p o w e r . c o m
s i d e p o w e r @ s l e i p n e r. n o
8700
© Sleipner Motor AS 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIDE-POWER S-linkControl Panel 8700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SLEIPNER MOTOR AS SIDE-POWER S-linkControl Panel 8700

Summary of Contents for SLEIPNER MOTOR AS SIDE-POWER S-linkControl Panel 8700

  • Page 1 . s i d e - p o w e r . c o m Tel: +47 69 30 00 60 s i d e p o w e r @ s l e i p n e r. n o Fax: +47 69 30 00 70 © Sleipner Motor AS 2016...

  • Page 2: Table Of Contents

    Side-Power products connected void and null. DECLARATION OF CONFORMITY We, Sleipner Motor AS P.O. Box 519 N-1612 Fredrikstad, Norway declare that this product with accompanying standard remote...

  • Page 3: Product Features

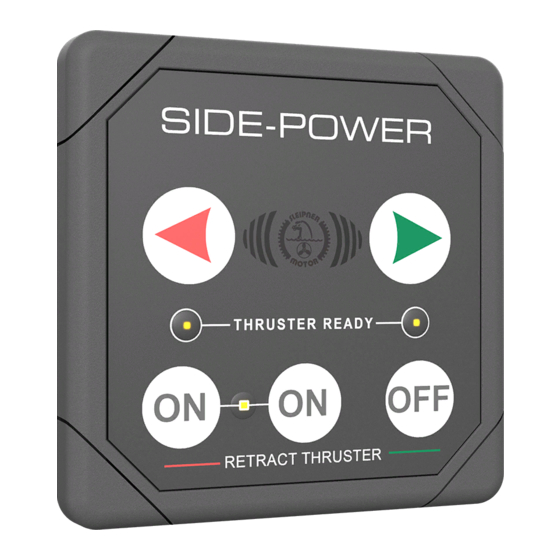

    Product features Ref: Pcs. Parts: Control panel Gasket Screws (A4) Corner clips PORT ON 2 STBD Installation: Find a comfortable position for the panel where it does not obstruct or are obstructed by other controls. Use the enclosed cut-out pattern to mark the area.

  • Page 4: S-Link Overview

    Remote control thruster ( opt.) (opt.) optional Setup with manual main switch Retract panel +12V Battery Drawn: Sleipner Motor AS Power supply P.O. Box 519 Wiring Retract thruster black cable N-1612 Fredrikstad W / manual main switch yellow Draw no: Norway...

  • Page 5: S-Link Setup Procedure

    S-Link Setup Procedure To control a dual thruster setup on one S-link bus, the panels must be set up to control one thruster each. As factory default, the panel is setup to control the bow thruster. The panel controlling the stern thruster must be set up fol- lowing the procedure described: Disconnect all S-link equipment concerning the bow thruster (Panel, AMS, Thruster Control Box, Interface etc.) from the S-link bus, and keep...

  • Page 6: General Use And Alarm Indication

    General use and alarm indication PANEL ON: push both “ON” buttons simultaneously, thruster deploys. PANEL OFF: push “OFF” button, thruster retracts. Operate thruster by pushing red and green arrows. STATUS/ALARM LEDS: YELLOW LED solid light means panel is on. GREEN LED flashes during deploy phase, Solid GREEN LED indicates thruster deployed and ready to operate.

  • Page 7: Alarm Codes

    Alarm Codes Control Panel 8700 version 1.0.5 - 2016...
