Southern States SO17542LT Operator's Manual

17.5 hp 42 inch lawn tractor
Hide thumbs Also See for SO17542LT:

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
MODEL NO. SO17542LT
17.5 HP
*
LAWN TRACTOR
•
Assembly
•
Operation
•
433485
01.04.10 BAD
42 INCH
Maintenance
•
Service and Adjustments
•
Storage
•
Troubleshooting
For Parts and Service, contact our authorized distributor:
call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886
*As rated by the engine manufacturer
Printed in the U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SO17542LT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Southern States SO17542LT

Summary of Contents for Southern States SO17542LT

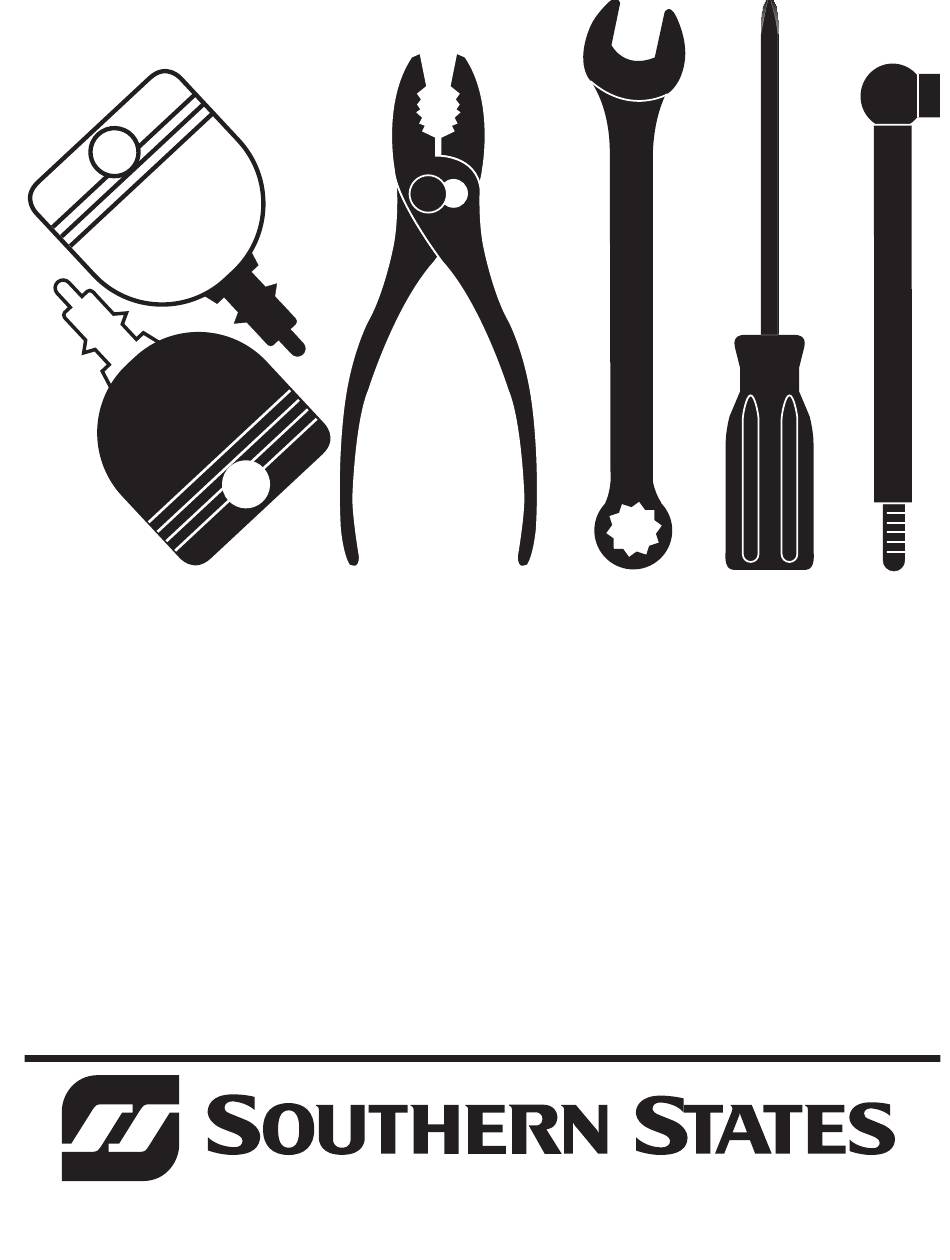

  • Page 1 OPERATOR’S MANUAL MODEL NO. SO17542LT 17.5 HP 42 INCH LAWN TRACTOR • Assembly • Operation • Maintenance • Service and Adjustments • Storage • Troubleshooting For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886...
