LabelTac 9 Quick Start Manual page 2

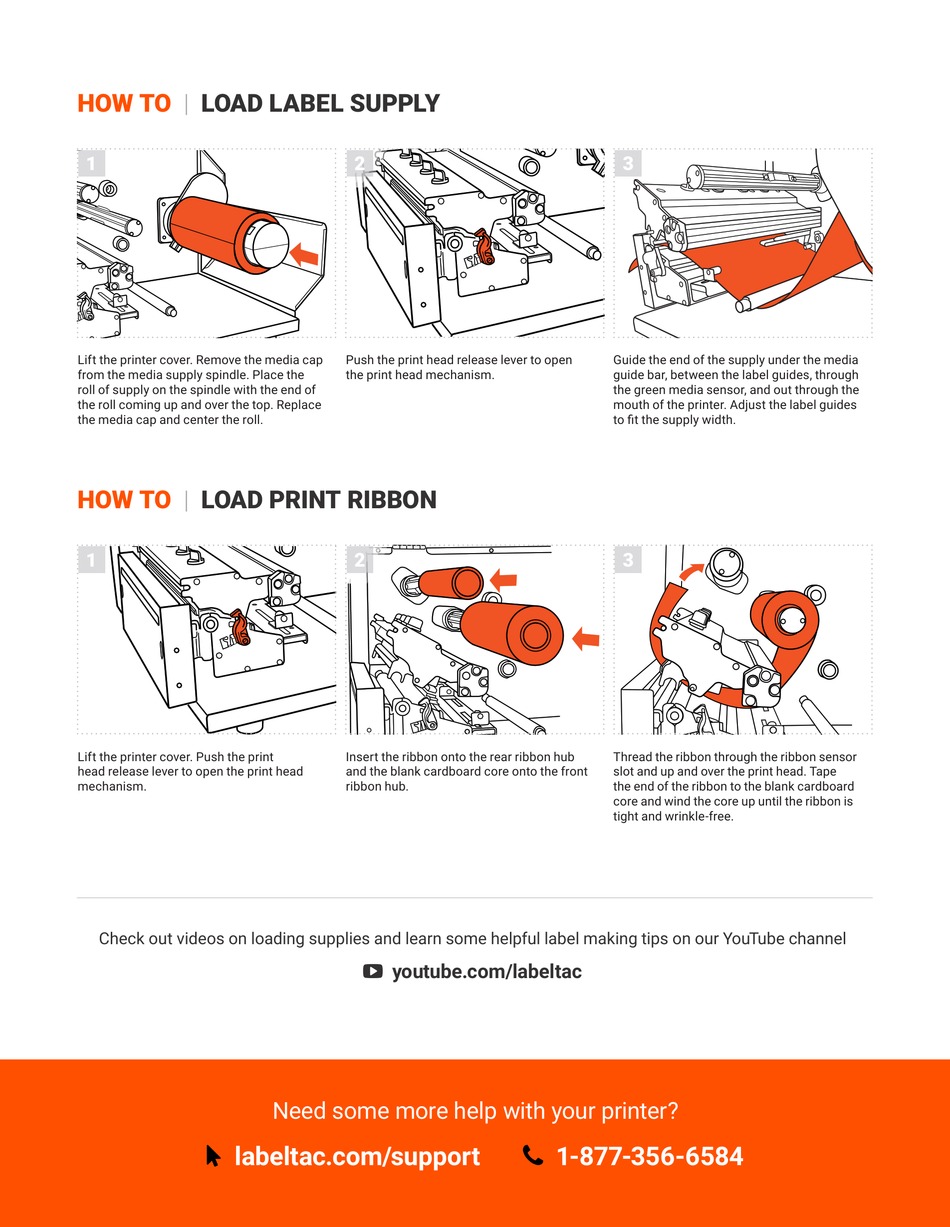

HOW TO | LOAD LABEL SUPPLY
1
Lift the printer cover. Remove the media cap
from the media supply spindle. Place the
roll of supply on the spindle with the end of
the roll coming up and over the top. Replace
the media cap and center the roll.
HOW TO | LOAD PRINT RIBBON
1
Lift the printer cover. Push the print
head release lever to open the print head
mechanism.
Check out videos on loading supplies and learn some helpful label making tips on our YouTube channel
labeltac.com/support

2
Push the print head release lever to open
the print head mechanism.
2
Insert the ribbon onto the rear ribbon hub
and the blank cardboard core onto the front
ribbon hub.
 youtube.com/labeltac
Need some more help with your printer?
3
Guide the end of the supply under the media
guide bar, between the label guides, through
the green media sensor, and out through the
mouth of the printer. Adjust the label guides
to fit the supply width.
3
Thread the ribbon through the ribbon sensor
slot and up and over the print head. Tape
the end of the ribbon to the blank cardboard
core and wind the core up until the ribbon is
tight and wrinkle-free.
1-877-356-6584

