Summary of Contents for Fender MTG: LA

  • Page 1 MTG: L A...

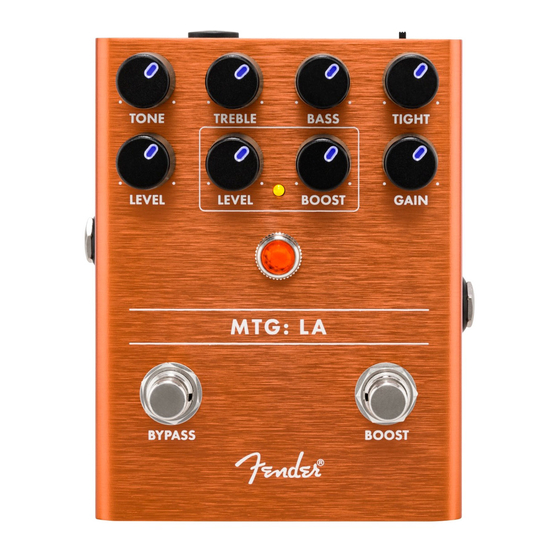

  • Page 2 LEDs 9V DC INPUT TONE TREBLE BASS TIGHT LEVEL LEVEL BOOST GAIN MTG: L A BYPASS BOOST 1. Bypass Footswitch 9. Boost 2. Jewel Indicator 10. Bass 3. Output Jack 11. Tight 12. Gain 4. Level 5. Tone 13. Input Jack 6.
  • Page 3 Thanks for purchasing MTG: LA – a high-gain tube distortion pedal inspired by the late ’80s sounds of the Sunset Strip. MTG: LA uses a real NOS 6205 preamp tube running at 150 plate volts for authentic tube tone. You’ll find familiar Level, Gain, Tone and EQ controls, and a footswitchable boost that can be configured to...
  • Page 4 Bypass footswitch Bypasses effect. Jewel indicator Illuminates when effect is active. Level Controls overall distortion output level. Boost Level Controls output volume. Boost LED Illuminates when boost is engaged. Boost Controls amount of saturation added to signal. Gain Controls amount of distortion added to signal. Tone Similar to tone control on a guitar —...
  • Page 5: Input Jack

    Input Jack High-impedance input suitable for electric guitar, bass, acoustic guitars with pickup systems, keyboards and other instruments. Output Jack Low-impedance output jack connects to amp or to next effect pedal in signal chain. DC Power Connector Standard center-negative 9VDC jack for use with appropriate power supplies.
  • Page 6: Important Safety Instructions

    A PRODUCT OF: FENDER MUSICAL INSTRUMENTS CORPORATION CORONA, CALIFORNIA, USA Fender® is a registered trademark of FMIC. Copyright © 2019 FMIC. All rights reserved. P/N 7717098000 - REV 2 Important Safety Instructions •WARNING: To prevent damage, fire or shock hazard, do not expose the unit or its AC power to rain or moisture.
  • Page 7 NOTES:...
  • Page 8 © FENDER MUSICAL INSTRUMENTS 2019...
