Gymna V-ACTOR II Accessory Manual

Handpiece for shockmaster devices
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

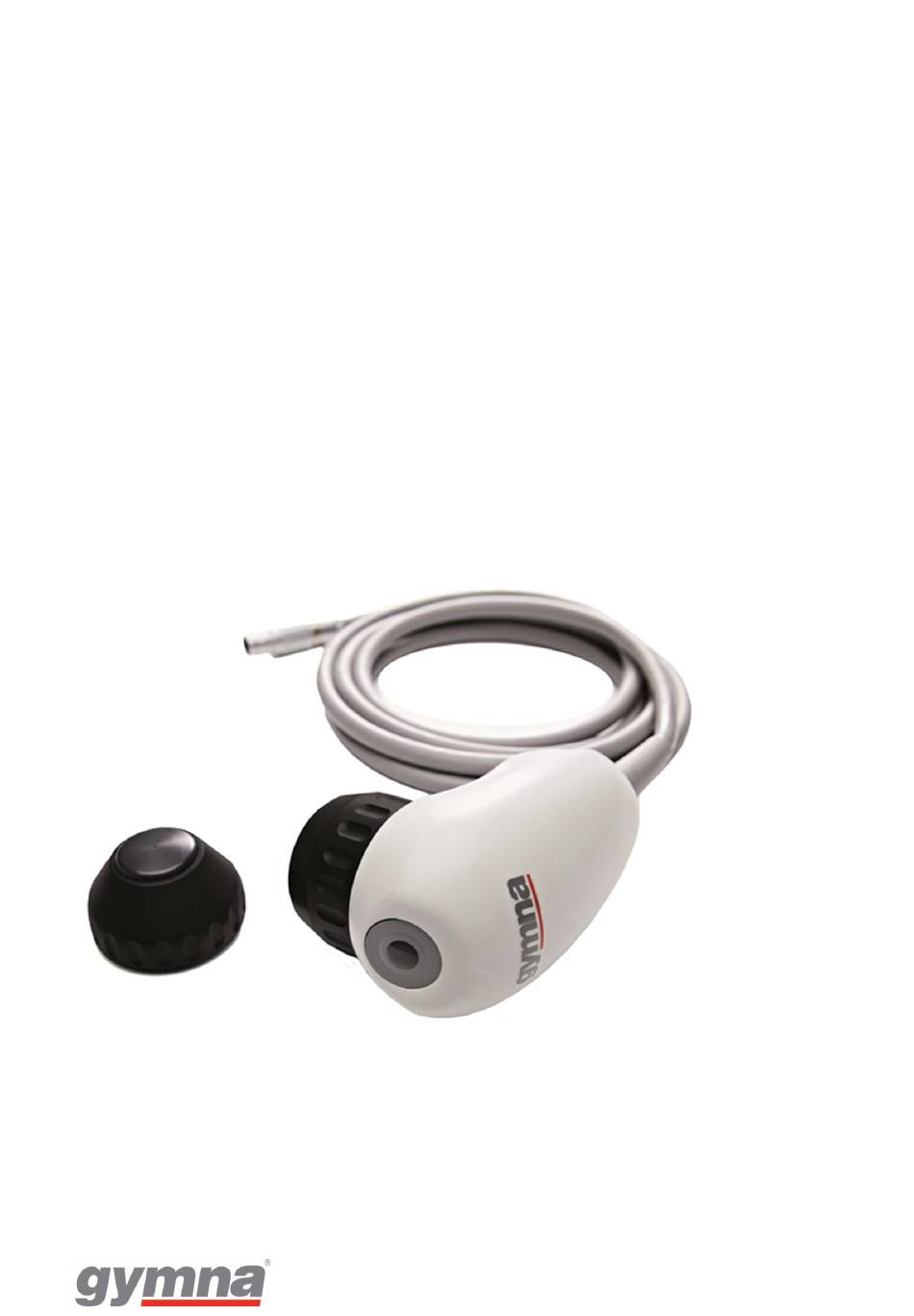

ACCESSORY MANUAL
V-ACTOR II Handpiece
For ShockMaster devices

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-ACTOR II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gymna V-ACTOR II

Summary of Contents for Gymna V-ACTOR II

  • Page 1 ACCESSORY MANUAL V-ACTOR II Handpiece For ShockMaster devices...

  • Page 3: Table Of Contents

    Compatibility ..................6 2.3.2 How to change the transmitters ............6 Operation ....................... 7 General warnings and safety information ............7 V-ACTOR II treatment parameter settings ............ 7 Functional checks ..................8 Standard operation ..................8 Treatment ....................8 Cleaning ......................9 Disposal ....................

  • Page 4: General Information

    General information Introduction This manual describes the use of the V-ACTOR II handpiece as assigned certain standard accessory for the ShockMaster control units distributed by: GymnaUniphy NV Pasweg 6A 3740 Bilzen Belgium Tel.: +32(0) 89 510.510 Fax: +32(0) 89 510.511 info@gymna.com...
  • Page 5 CAUTION Before using the V-ACTOR II handpiece for the first time, please make sure you have read and understood all information provided in this operating manual. Familiarity with the information and instructions contained in this manual is essential for ensuring efficient and optimal use of the system, for avoiding hazards to personnel and equipment and for obtaining good treatment results.

  • Page 6: V-Actor Ii

    ShockMaster control units, which may be used to complement the radial shockwave therapy. The V-ACTOR II handpiece allows the treatment of soft tissue with high frequency pulses. Depending on the therapy to be performed, the handpiece can be equipped with the following ...

  • Page 7: Installation

    NOTE Please also refer to the separate operating instructions of your control unit.  Connect the connector of the V-ACTOR II handpiece to the handpiece connector provided on the respective control unit (1).  Make sure that the red spot on the connector matches the red spot on the socket.

  • Page 8: Compatibility

    To break the connection, pull the outside of the plug body. This means the locking function is initially released, then the plug is pulled out of the handpiece connector. (2) 2.3.1 Compatibility The V-ACTOR II handpiece can be connected to the ShockMaster control units from the manufacturer GymnaUniphy NV. 2.3.2 How to change the transmitters ...

  • Page 9: Operation

    General warnings and safety information See the manual of the ShockMaster control unit. NOTE The V-ACTOR II is suitable to connect to the ShockMaster control units. V-ACTOR II treatment parameter settings After connecting the V-ACTOR II handpiece, the control unit automatically recognizes V-ACTOR II and operating mode will be available.

  • Page 10: Functional Checks

    Connect the V-ACTOR II handpiece to the control unit  Set the pressure to an initial value of 2.0 bar and a frequency of 20Hz.  Start the V-ACTOR II treatment by pushing the trigger button. Treatment CAUTION Always read chapter 3.1 SAFETY INSTRUCTIONS before starting a treatment.

  • Page 11: Cleaning

    It is essential to prevent fluid penetrating into the unit or its tubing. Regular cleaning of the system ensures perfect hygiene and operation of the ShockMaster V-ACTOR II handpiece. The handpiece, in particular the applicator, must be thoroughly cleaned and disinfected after each therapy session.

  • Page 12: Disposal

    Disposal When disposing of the V-ACTOR II handpiece, no special measures have to be observed. Proceed in accordance with national regulations. At the end of its life time, the V-ACTOR II must be disposed of as electronic waste. Repair Repair work on defective equipment must only be carried out by authorized personnel. Only original spare parts may be used for this purpose.

  • Page 13: Trouble Shooting

    Trouble shooting Fault description Possible cause Corrective actions No compressed air supply Leaks on handpiece cable or Check the cable connection cable properly replace them connected. necessary. Check compressor (see User Manual control device) Please contact No pulse output Handpiece defective manufacturer your Service...

  • Page 14: Accessories And Spare Parts

    Accessories and spare parts V-ACTOR II handpiece ShockMaster V-ACTOR II BLACK 338.239 ShockMaster V-ACTOR 25mm Applic Black 338.668 ShockMaster V-ACTOR 40mm Applic Black 338.679 NOTE For information on various applicators, please contact your distributor Version 252 of 2018-04-06...

  • Page 15: Technical Specifications

    Technical specifications V-ACTOR II handpiece  Operating frequency V-ACTOR II SCM300 0.5 – 31 Hz SCM500 0.5 – 35 Hz  Compressed air input ShockMaster 500 1 - 5 bar ShockMaster 300 1 - 4 bar  Operating conditions Ambient temperature: 10 °C - 35 °C...

  • Page 16: Warranty

    Warranty Warranty The V-ACTOR II handpiece is a wear and tear part. We will replace new handpieces that have performed up to 1 million pulses at no charge to the customer upon the customer furnishing adequate proof that the defect is due to defects in material or workmanship.
  • Page 17 Version 252 of 10/04/2018...
