Directed Electronics PKALL Wiring Schematic Configuration page 2

LEXUS GX460
© 2011 Directed Electronics. All rights reserved.

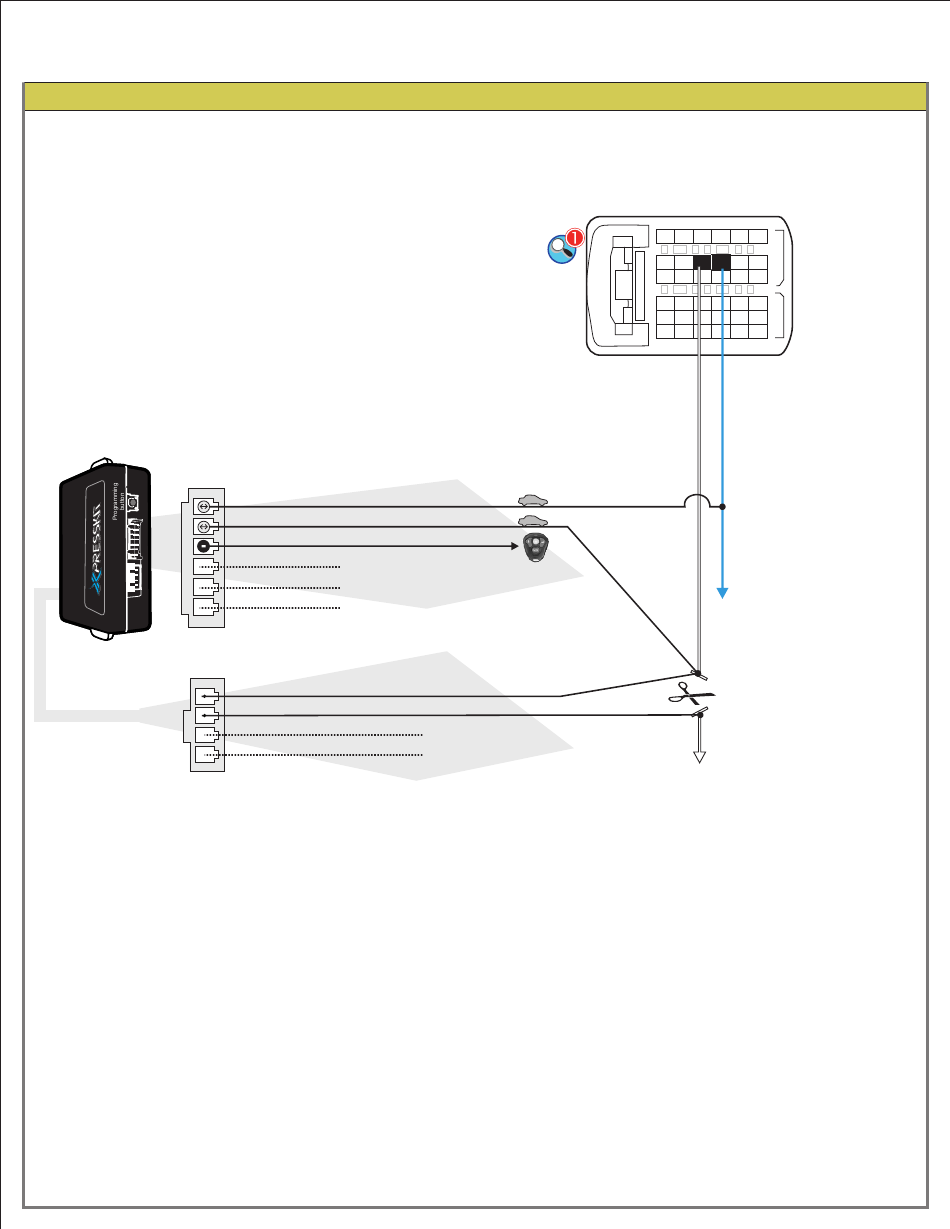

ADDENDUM - SUGGESTED WIRING CONFIGURATION/SCHÉMA DE BRANCHEMENT SUGGÉRÉ
Front view of the module
Vue de face du module
Purple/White | Mauve/Blanc
Yellow/Black | Jaune/Noir
2
Blue/White | Bleu/Blanc (-) While running
Green | Vert N.C.
conn.
Pink | Rose N.C.
N.C.
Black | Noir
Relay | Relais 1a
Light Green | Vert Pâle
3
Relay | Relais 1b
Orange/Brown|Orange/Brun
Orange/Green | Orange/Vert N.C.
conn.
Brown | Brun
N.C.
ECM
Back view -
Behind glove box
Vue de dos -
Derrière le coffre à gant
IMO
IMI
status
PKALL
www.xpresskit.com
Rev.: 20110830
7 13 19 25
1 31
2 8 14 20 26 32
3 9 15 27 33
21
4 10 16 22 28 34
5 11 17 23 29 35
6 12 18 24 30 36
White Light Blue
Blanc Bleu Pâle
IMO
IMI
P.2
