Visit door transmitter

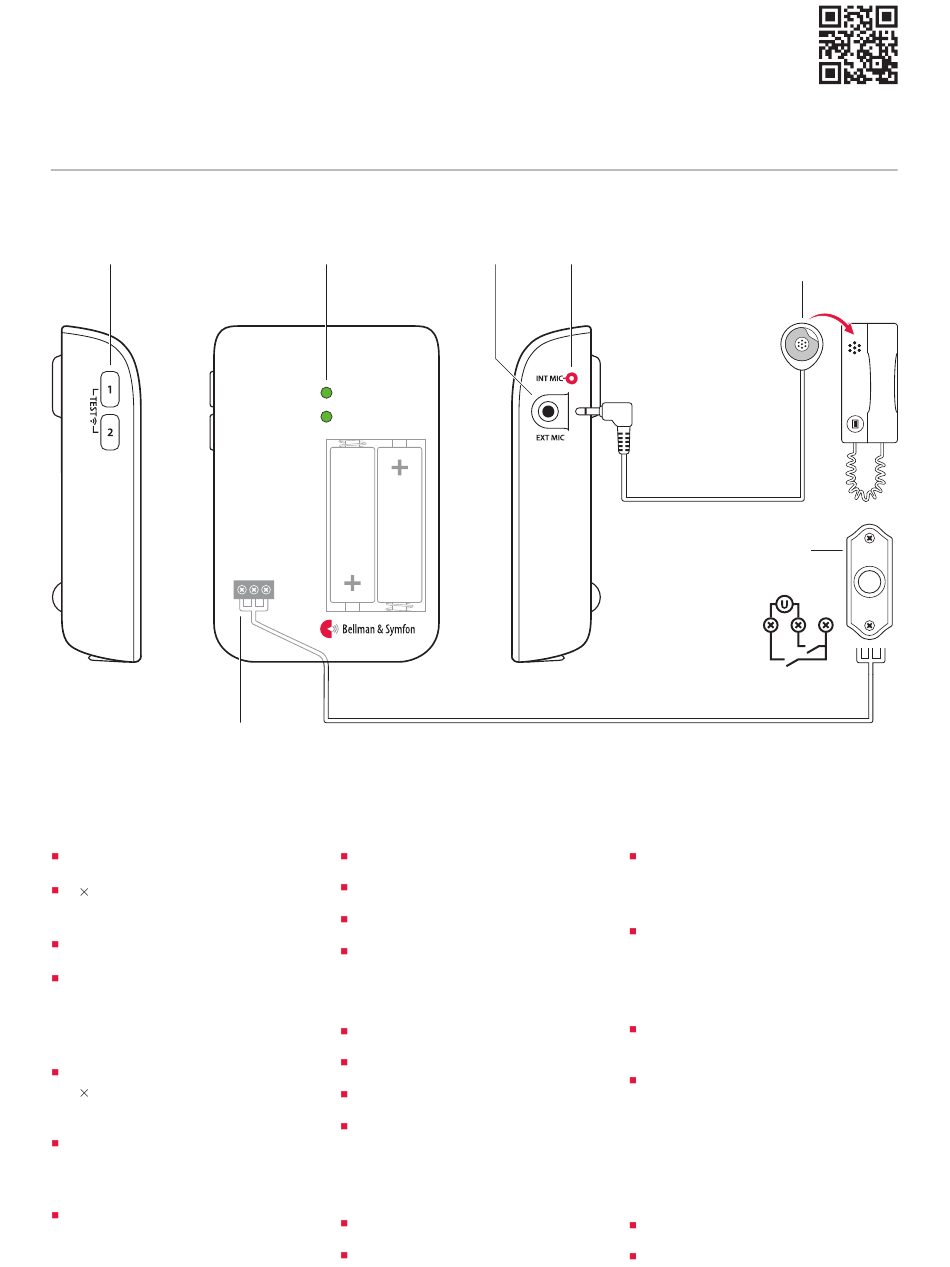

Buttons and connections
Test / program buttons
Ext. trig. input

Technical specifications

In the box
BE1411 Visit door transmitter
2 1.5 V AA (LR6)
lithium or alkaline batteries
Velcro for wall mounting
Screw and wall plug
Power and battery
Battery power
2 1.5 V AA lithium or alkaline
type batteries
Power consumption
Active < 70 mA
Idle position < 15 μA
Operation time
Alkaline batteries ~ 5 years
Lithium batteries ~ 10 years
LED lights
3.5 mm ext. mic. input
Dimensions and weight
Height: 100 mm, 4.0"
Width: 65 mm, 2.6"
Depth: 27 mm, 1.1"
Weight: 120 g, 4.2 oz. incl. batteries
Activation
The test buttons and the int. mic.
The electromagnetic detector
The external microphone accessory
The existing doorbell connected to
the external trigger input
Inputs
3.5 mm external microphone input
External trigger input
Internal microphone
Doorbell push button
Environment
For indoor use only
Operating temperature
0° to 35° C, 59° to 95° F
Relative humidity
15% to 90%, non-condensing
Frequency and coverage
Frequency: 314.91 MHz, 433.92 MHz
or 868.30 MHz, depending on region
Coverage: 50 - 250 m, 55 - 273 yd.
depending on the radio frequency
and the building's characteristics
Accessories
The following accessories are available:
BE9199 External microphone 2.5 m
BE9200 External microphone 0.75 m
BE1411
BE9199 / BE9200
External microphone
