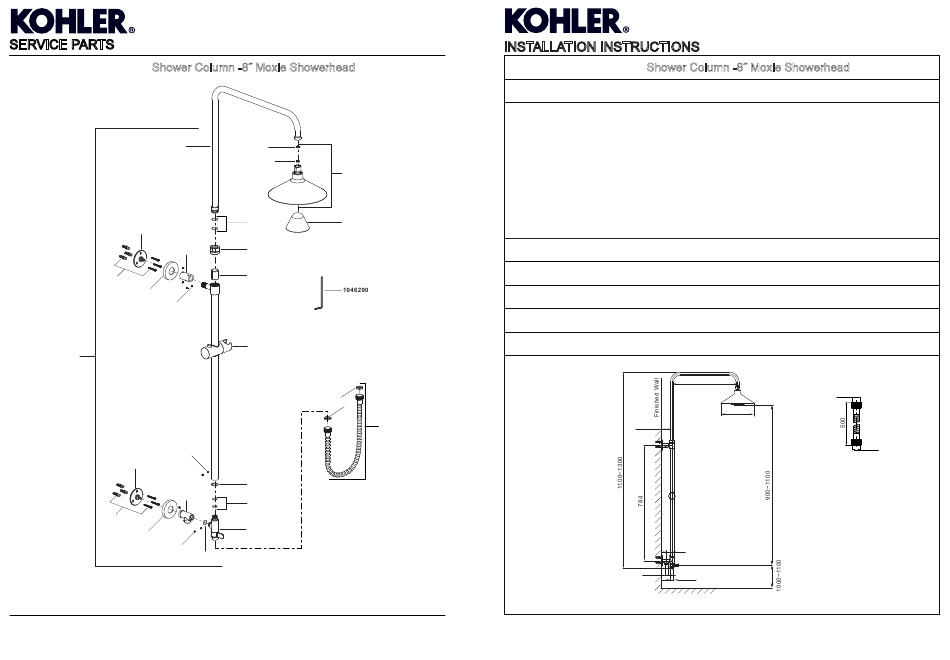

Kohler MOXIE 99107T Installation Instructions

SERVICE PARTS
99107T Shower Column -8˝ Moxie Showerhead
1121294**
1196610
1196622**
1061576
1196621**
832751
1196627**
832751
1196610
1196607**
1061576
1196621**
832751
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
1215685-2A-D
77420
1030624
1212230**
870992 1191381**
1196609**
1121285
1109471**
880010
1196628
870921
1183267**
870921
MOXIE
INSTALLATION INSTRUCTIONS

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Shut off the water supplies to the fitting.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. Recommended minimum working pressures is 0.1MPa (1bar).
5. The highest working pressure for showerhead & hand shower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a
pressure reducer is needed. The highest water and environment temperature is 60°C. Please keep wireless
speaker, battery, handshower, showerhead and the shower arm away from heater, or it may become damaged and
cause injury to the user.

OPERATION INSTRUCTIONS

Turn the diverter handle counter-clockwise for handshower; turn clockwise for showerhead.

STANDARD APPLICABLE

Special model meets or exceeds the following at date of manufacture: TIS

ROUGH-IN DIMENSIONS

1111667**
4 1215685-2A-D
99107T Shower Column -8˝ Moxie Showerhead
400
Ø203
(68~79)
34
G1/2˝
G1/2˝
Finished Floor
MOXIE
G1/2"
G1/2"
1
