UC-100KM
A
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:

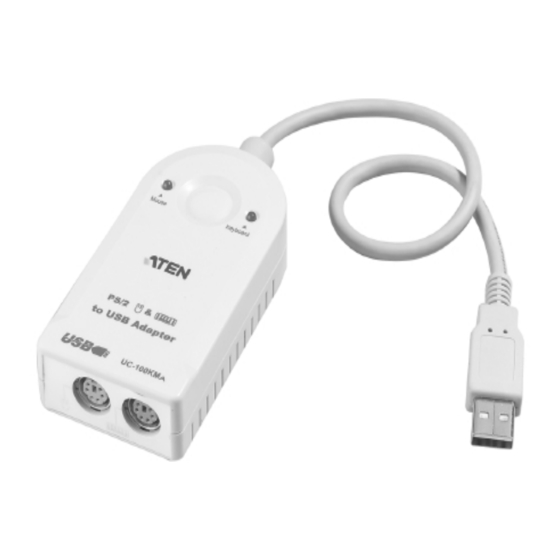

M 1 UC-100KMA PS/2 Keyboard & Mouse to USB Adapter
M 1 User Manual
If anything is damaged or missing, contact your dealer.
®
© Copyright 2003 ATEN
International Co., Ltd.
Manual Part No. PAPE - 1220-2AT
Printed in Taiwan 05/2003
All brand names and trademarks are the registered property of their respective owners.
2003-05-08
Advertisement
Table of Contents
Related Manuals for ATEN UC-100KMA
Summary of Contents for ATEN UC-100KMA
- Page 1 This package contains: M 1 UC-100KMA PS/2 Keyboard & Mouse to USB Adapter M 1 User Manual If anything is damaged or missing, contact your dealer.
- Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Overview Universal Serial Bus (USB) port technology has emerged in response to the proliferation of external peripheral devices (keyboards, mice, scanners, digital cameras, removable drives, etc.), that are increasingly being connected to the latest generation of PCs. The USB is much faster than conventional bus ports (i.e., serial, parallel, PS/2), and since it does not require any IRQs, the problem of IRQ conflict is eliminated, allowing many more devices to be attached to the system.
-
Page 4: System Requirements
Features M Two PS/2 Devices (Keyboard and Mouse) to USB Interface Converter M Supports PS/2 Mouse and Microsoft IntelliMouse M Hotkey selection for OS and keyboard language M Supports: Windows: 98SE / 2000 / Me / XP; Apple(OS 8.6 or higher): G3 / G4 / iMac systems; Sun Blade Servers (Sun Solaris 8): 2000 / 100;... -
Page 5: Top View
Top View 1. Mouse and Keyboard Ports The cables from the PS/2 Mouse and PS/2 Keyboard plug in here. The ports are marked with an icon to indicate which is which. 2. Mouse and Keyboard LEDs The LED lights when its corresponding peripheral (mouse or keyboard) is connected to the UC-100KM . -
Page 6: Installation
You must unplug the power cords of any computers that have the Keyboard Power On function. Otherwise, the UC-100KMA will receive power from the computer. To prevent damage to your equipment, make sure that all devices you will be connecting up are properly grounded. - Page 7 Operating Platform Considerations: Windows 98SE: 1. The first time you start up, Windows detects the UC100KMA’s presence. Follow along with the Installation Wizard to install the appropriate driver for it. 2. There is no need to restart Windows once the driver has been installed.
-
Page 8: Red Hat Linux
USB keyboard and mouse drivers have to be installed on the system before Red Hat Linux will work with the the UC-100KMA. If the drivers aren’t already installed, do the following to install them: 1. With the computer powered off, plug a USB keyboard and mouse into its USB ports. -
Page 9: Hotkey Settings
Hotkey Settings Hotkeys are used to select the keyboard layout, reset the USB, select the operating platform that the UC-100KM works under, and obtain system setting information. Note: 1. Use the Hotkeys to specify your OS and keyboard language layout the first time your run your computer with the UC-100KM (see the table, on p. -
Page 10: Hotkey Summary Table
Hotkey Summary Table The following table shows the Hotkeys and their functions: Hotkey Function Ctrl + F12, F1 Selects the PC Compatible (Windows, Linux, etc. operating platform Ctrl + F12, F2 Selects the Mac operating platform Ctrl + F12, F3 Selects the Sun operating platform Ctrl + F12, 3, 3 Selects the American English keyboard layout... - Page 11 System Information Invoking the system setting information hotkey returns a code that looks similar to the example, below: O 03 L 33 Where O represents the Operating Platform, and L represents the keyboard language. The codes for the operating platform and keyboard language are provided in the table on page 8.
- Page 12 Keyboard Emulation Mappings Sun Keyboard: The PS/2 (101/104) key keyboard can emulate the functions of the Sun keyboard when the Control key (Ctrl) is used in conjunction with other keys. The corresponding functions are shown in the table below. Note: When using Control Key ([Ctrl]) combinatons, press and release the Control key, then press and release the activation key.
- Page 13 Mac Keyboard: The keyboard emulation mappings from the Mac keyboard to the PS/2 keyboards (101 key and 104 key), are listed in the table below. Note: When using key combinatons, press and release the first key (Ctrl or Alt), then press and release the activation key.
-
Page 14: Specifications
Appendix Specifications Function Specification Connectors 1 Type A Plug PS/2 1 Keyboard; 1 Mouse Cable Length 30cm OS Platforms Windows98/98SE/2000/Me/XP; Apple G3/G4/iMac systems w/OS 8.6 or higher; Sun Blade servers 2000/100 (Sun Solaris 8); and Linux Transfer Rate 12 Mbps USB Specs USB 1.1 compatible Power Mode... -
Page 15: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose. - Page 16 Notes: - 14 - 2003-05-08...
