UC-100KM
A
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:

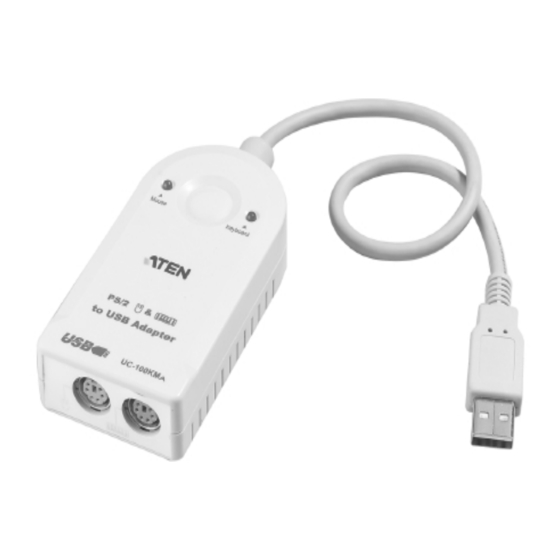

M 1 UC-100KMA PS/2 Keyboard & Mouse to USB Adapter
M 1 User Manual
If anything is damaged or missing, contact your dealer.
®
© Copyright 2003 ATEN
International Co., Ltd.
Manual Part No. PAPE - 1220-1AT
Printed in Taiwan 01/2003
All brand names and trademarks are the registered property of their respective owners.
2003-01-20
Advertisement
Table of Contents
Related Manuals for ATEN UC-100KMA
Summary of Contents for ATEN UC-100KMA
- Page 1 This package contains: M 1 UC-100KMA PS/2 Keyboard & Mouse to USB Adapter M 1 User Manual If anything is damaged or missing, contact your dealer.
- Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Overview Universal Serial Bus (USB) port technology has emerged in response to the proliferation of external peripheral devices (keyboards, mice, scanners, digital cameras, removable drives, etc.), that are increasingly being connected to the latest generation of PCs. The USB behaves in a similar fashion to conventional bus ports (i.e., serial, parallel, PS/2), but is much faster, and since it does not require any IRQs, more devices can be attached to the system, and the problem of IRQ conflict...
- Page 4 Features M Two PS/2 Devices (Keyboard and Mouse) to USB Interface Converter M Supports PS/2 Mouse and Microsoft IntelliMouse M Hotkey selection for OS and keyboard language M Supports: Windows98/98SE/2000/Me/XP; Apple G3/G4/iMac systems w/OS 8.6 or higher; Sun Blade servers 2000/100 (Sun Solaris 8) Linux M Built in Mouse Wake Up Function M USB 1.1 Specification Compliant...
-
Page 5: Hardware Requirements
Hardware Requirements SYSTEM M Windows 98/98SE/Me/2000/XP; Apple G3/G4/iMac systems w/OS 8.6 or higher; Sun Blade servers 2000/100 (Sun Solaris 8); and Linux M USB Host Controller installed on the system. - 3 - 2003-01-20... -
Page 6: Top View
Top View 1. Mouse and Keyboard Ports The cables from the PS/2 Mouse and PS/2 Keyboard plug in here. The ports are marked with an icon to indicate which is which. 2. Mouse and Keyboard LEDs LEDs light up when the keyboard and mouse are connected to the UC-100KM , and flash when the keyboard or mouse is transmitting data packets. -
Page 7: Installation
Installation PC & Mac 1. Plug the PS/2 Mouse and PS/2 Keyboard into the appropriate connectors on the UC-100KM adapter. The ports are marked with an icon to indicate which is which. 2. Plug the UC-100KM ’s USB plug into the computer’s USB port, or into a USB Hub that is connected back to the computer. -
Page 8: Operation
Operation With the UC-100KM you can customize your keyboard language input as well as selecting your computers’ operating system. Hotkey Selection The UC-100KM provides the following Hotkey Selection features: M Operating System Selection M Language Input Selection Operating System and Language Selection Hotkey operations begin by pressing and holding the Right Control key, then press and release the F12 key, then press and release n . - Page 9 Keyboard Emulation Mappings The PS/2 101/104 key keyboard can emulate the functions of the SUN keyboard when the Right Control key (RCtrl) is used in conjunction with other keys. The corresponding functions are shown in the table. PS/2 Keyboard SUN Keyboard RCtrl +F1 Stop RCtrl +F2...
- Page 10 SUN Wake Up Function To intitiate the wake up function for SUN Blade servers (100/2000); 1. Press the POWER key ([RCtrl] +[4]) 2. Move the mouse OR press any key Note: 1. If the server fails to respond click the left and right mouse buttons at the same time OR press the escape key to resume status.
- Page 11 The keyboard emulation mappings from the Mac keyboard to the PS/2 keyboards (101 key and 104 key), are listed in the table below; PS/2 PS/2 Mac Keyboard Keyboard Keyboard (101) (104) L or R_Shift L or R_Shift Shift L_Ctrl L or R_Ctrl Ctrl R_Ctrl R_Ctrl...
-
Page 12: Specifications
Appendix Specifications Function Specification Connectors 1 Type A Plug PS/2 1 Keyboard; 1 Mouse Cable Length 30cm OS Platforms Windows98/98SE/2000/Me/XP; Apple G3/G4/iMac systems w/OS 8.6 or higher; Sun Blade servers 2000/100 (Sun Solaris 8); and Linux Transfer Rate 12 Mbps USB Specs USB 1.1 compatible Power Mode... -
Page 13: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
