Knife Jig SVM-45
Positioning of Machine
Grinding direction: Towards or away from the edge.
Design

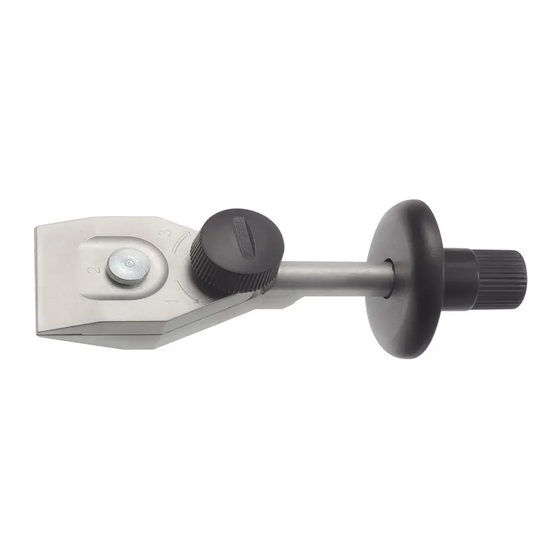

The jig comprises an adjustable clamp (1) for holding knives
of any thickness and an adjustable stop (2). You adjust the
jig to the knife thickness with the screw (3) and lock by
tightening the knob (4).
The jig rests on the Universal Support. The exact edge
angle is set by rotating the stop or with the Micro Adjust on
the Universal Support.
The Universal Support is normally placed vertically for
grinding towards the edge. Short knives can also be ground
away from the edge with the Universal Support placed
horizontally (page 57).
52
KNIVES
Min length of blade 60 mm (2 3/8 ").
CARVERS DRAWKNIVES
Note The height of the bench
must not be too high when
grinding knives. 550–650 mm
(22–26") is suitable depending
on your height.
45 mm (1¾")
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for tormek SVM-45
Summary of Contents for tormek SVM-45

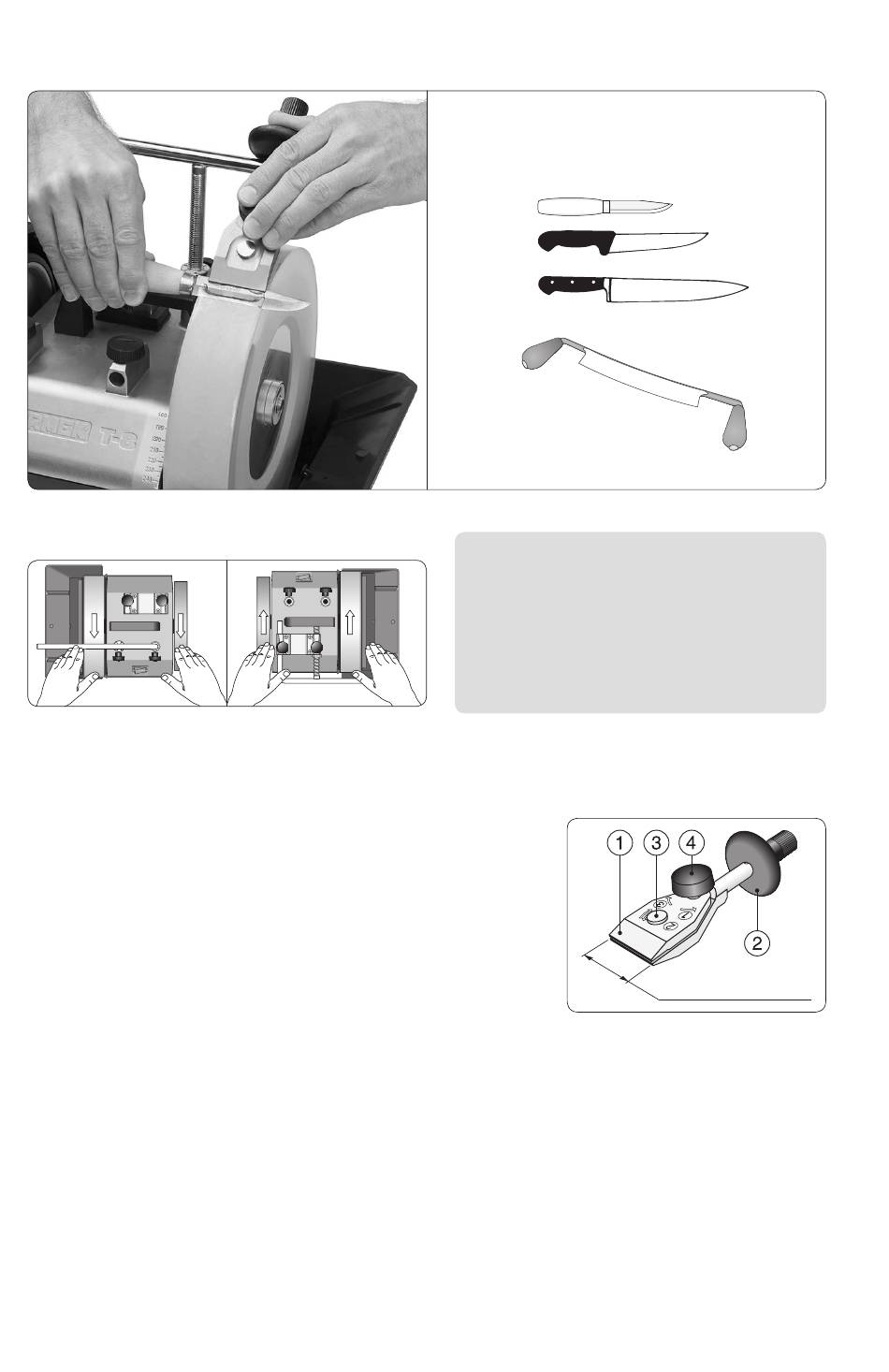

- Page 1 Knife Jig SVM-45 KNIVES Min length of blade 60 mm (2 3/8 "). CARVERS DRAWKNIVES Positioning of Machine Note The height of the bench must not be too high when grinding knives. 550–650 mm (22–26") is suitable depending on your height.
- Page 2 Mounting the knife in the jig Check that the knob is loose. Adjust the jig with the Tighten the knob. The knife is small screw to fit the thick- now firmly mounted in the jig. ness of the knife. The edge angle on the tip is depending on where the jig is mounted The correct mounting position on the blade (a).
- Page 3 Replicating the existing edge angle Colour the bevel with a marker Turn the stop of the jig to zero. Earlier design with locking screw. so that you can see where the (The new design is self-locking.) grinding will occur. Set the Universal Support Raise the Universal Support with the Micro Adjust until the whole so that the heel of the bevel bevel touches the grinding wheel.
- Page 4 Thin Knives When setting an edge angle on thin knives the length of the bevel is too short to be aligned to the angle setter. Let the angle setter touch the blade of the knife instead of the bevel. Then the angle setter should be set to half of the desired edge angle.
- Page 5 Grinding Hold the knife and the jig as illustrated. Make sure that you press Grind until a burr forms on the your thumb (or palm) on the jig so that it is always pressed against upper side along the entire the back of the Universal Support.
- Page 6 Grinding Away From the Edge This instruction has so far shown how to grind knives towards the edge with the Universal Support placed vertically. This way works for all types and lengths of knives. For short knives you can also place the Universal Support in the horizontal position and thus grind away from the edge.
- Page 7 Carver’s Drawknives Press the jig downwards so that Hone free-hand. Hold the knife diagonally to clear the grinding the stop is all the time in con- wheel. Hone the bevel and the reverse side alternately. tact with the Universal Support. Ensure that the grinding takes place across the entire width of the grinding wheel.
